Overview
LF DriverRevelator series
Scanspeak

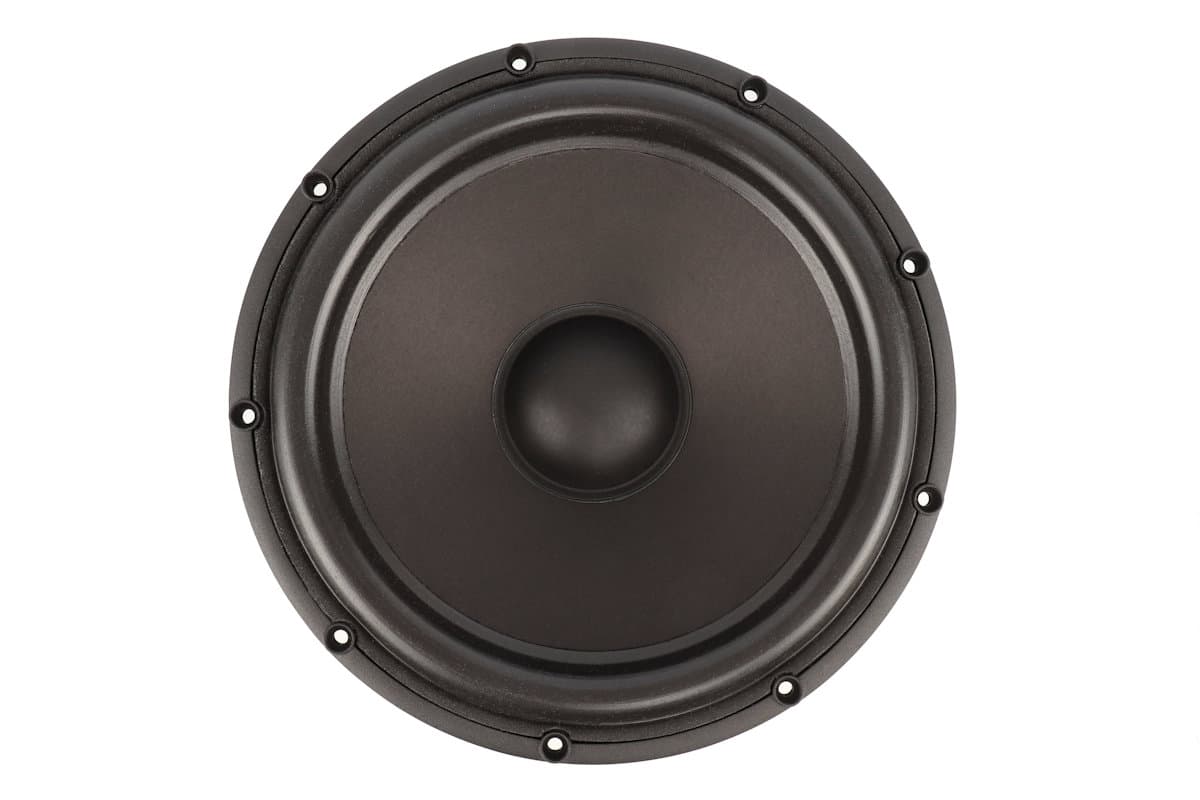

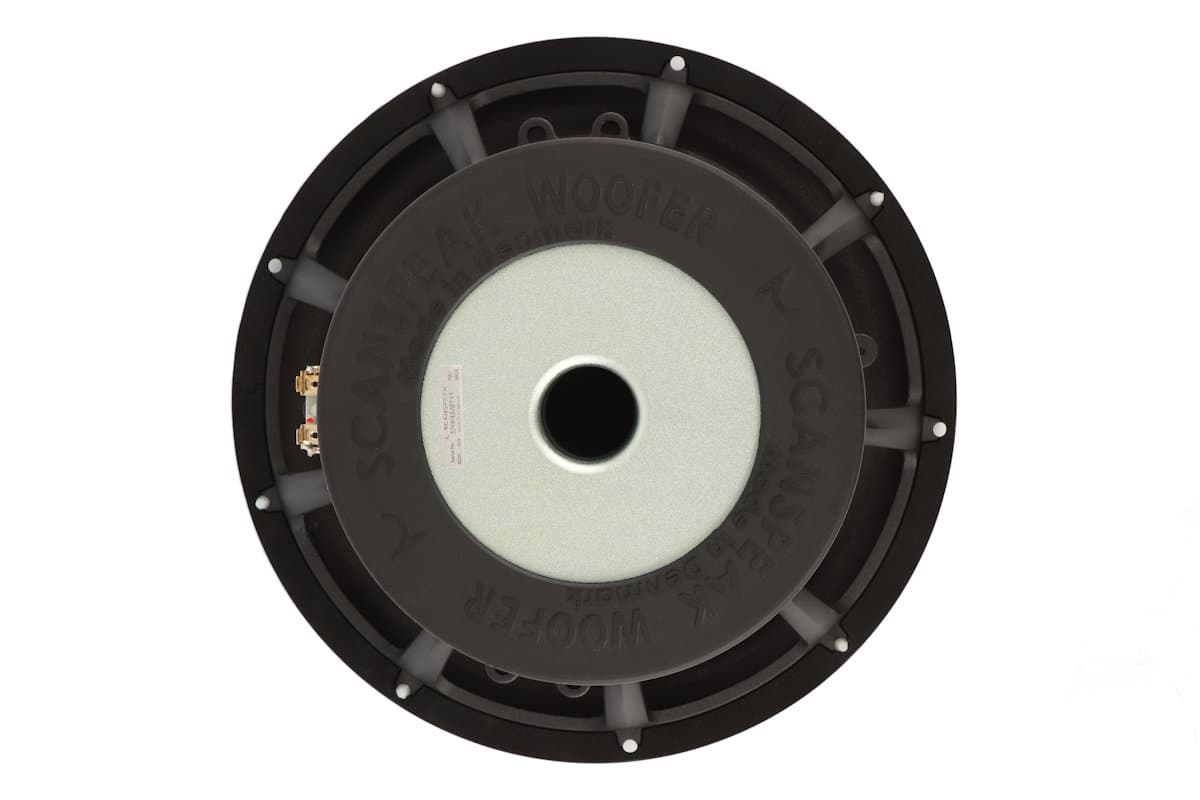

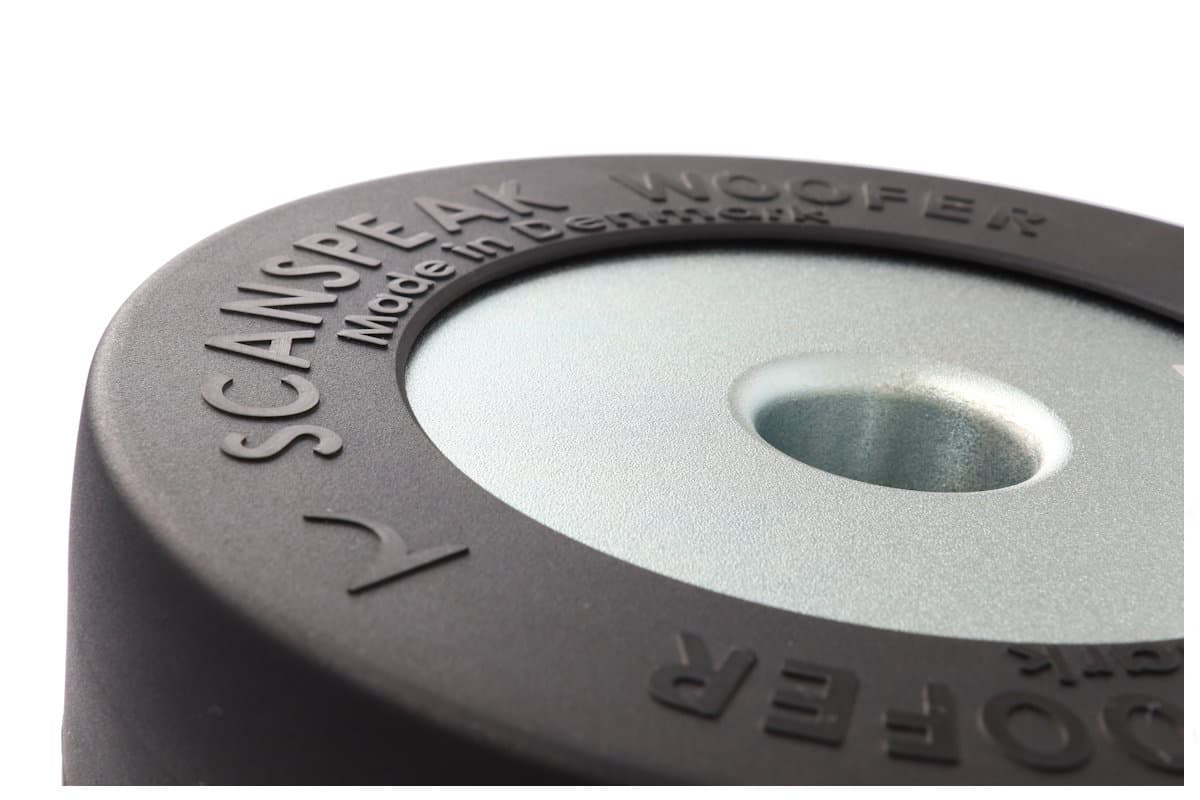

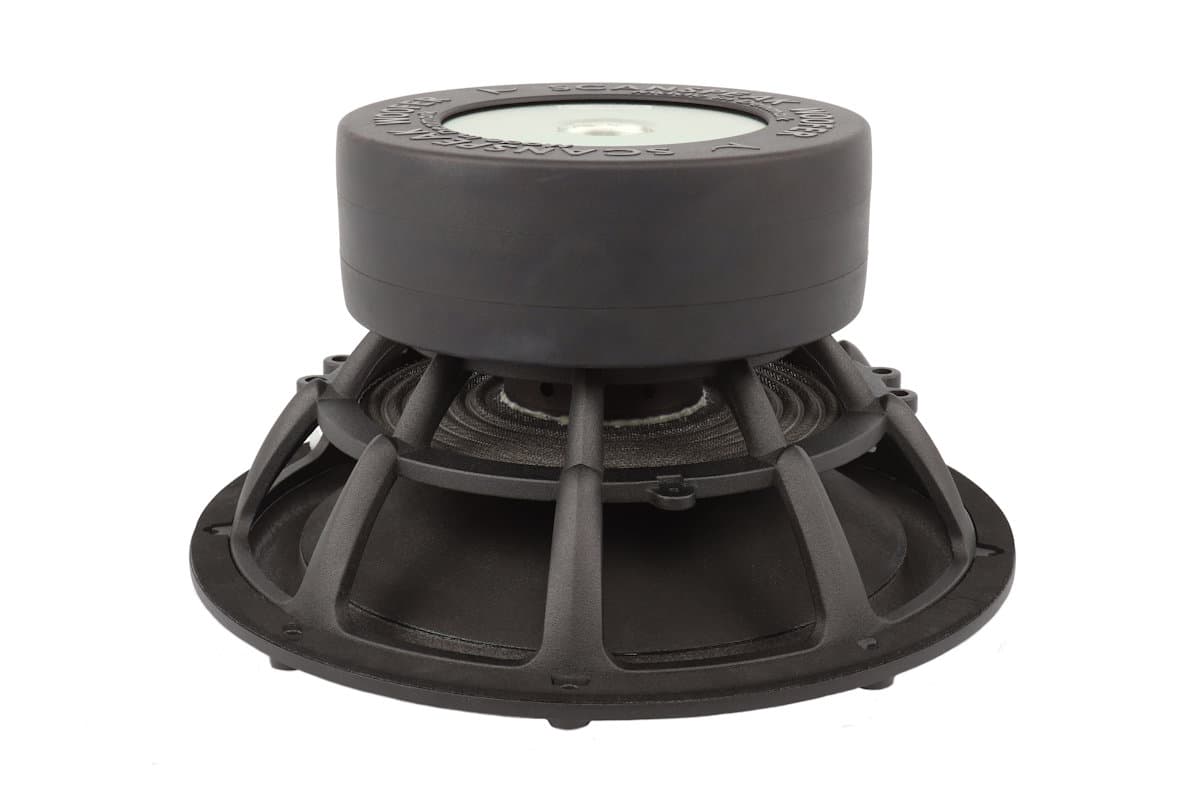

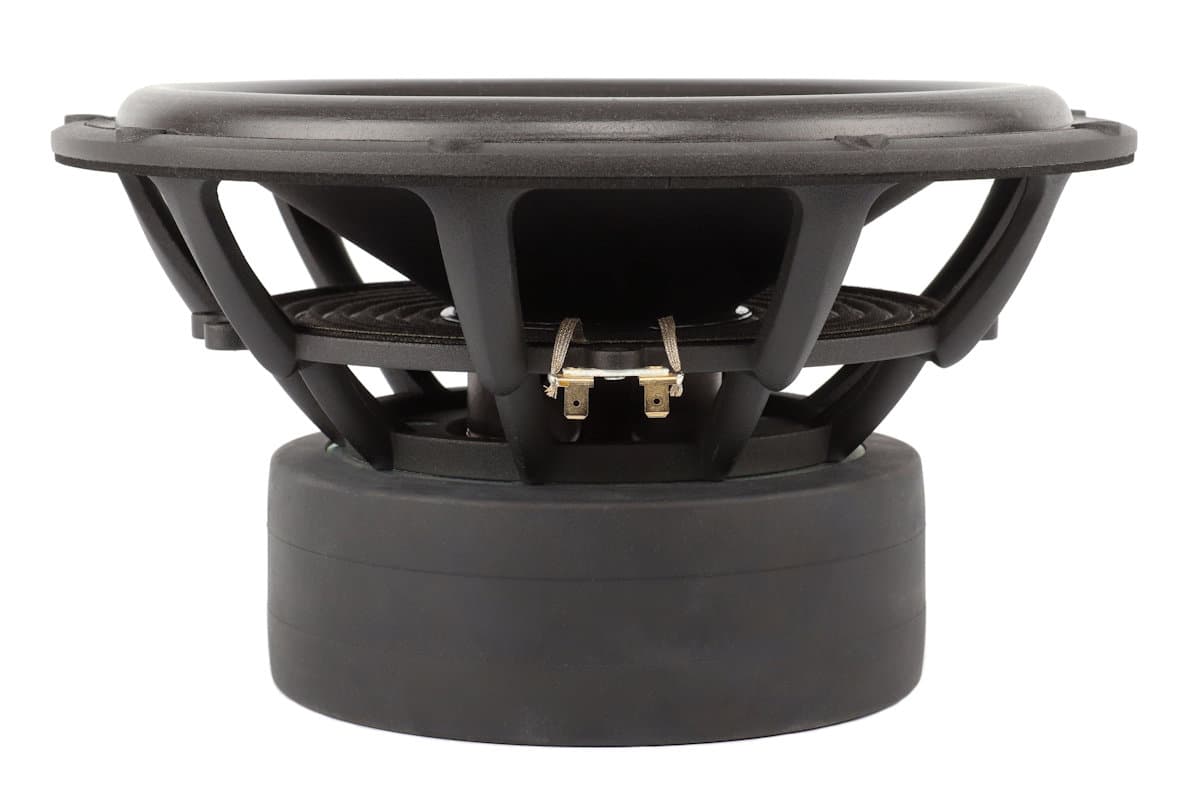

Scanspeak 32W/4878T11
Scanspeak 32W/4878T11 is a 12" 4 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 24Hz, Qts 0.21, Vas 185L, Xmax 7mm, sensitivity 92.7dB, plus 368cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
4Ω
RMS Power
350W
Sensitivity
92.7dB
95.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
109
Vented alignment
Vd
368cm³
T/S Parameters
Valid
Fs24Hz
Qts0.21
Qes0.22
Qms4.3
Vas185.0L
Re3.1Ω
Le0.36mH
BL14.0Tm
Sd526cm²
Mms93g
Xmax7.0mm
SPL93dB
Power350W
Impedance4Ω
Min Impedance4.0Ω
Voice Coil75mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter320.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
32W/4878T11
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
£117.54
BishopSound
BDP12
12"
Xmax7mm0%
Qts0.22+5%
BL18.3Tm+31%
Vas75.4L-59%
Qes0.24+9%
61%
Similarity

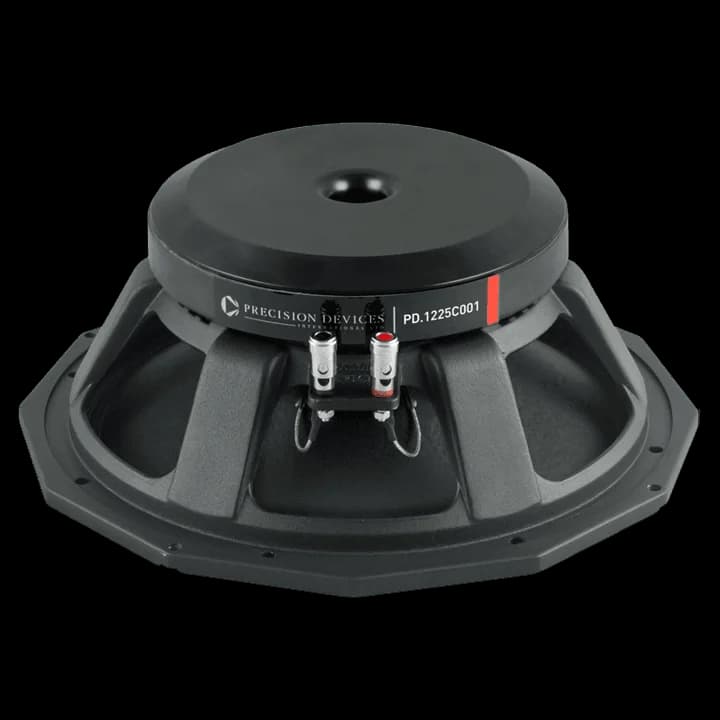

Precision Devices
PD.1225C001
12"
Xmax5.6mm-20%
Qts0.19-10%
BL17.5Tm+25%
Vas156L-16%
Qes0.2-11%
60%
Similarity
£269.00

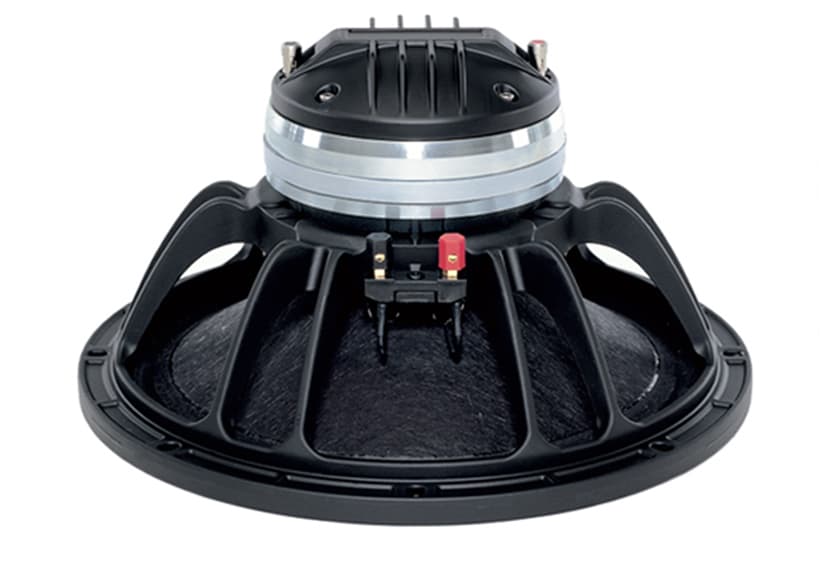

B&C
12CXN76
12"
Xmax6mm-14%
Qts0.19-10%
BL17.6Tm+26%
Vas120L-35%
Qes0.2-9%
60%
Similarity
£385.07

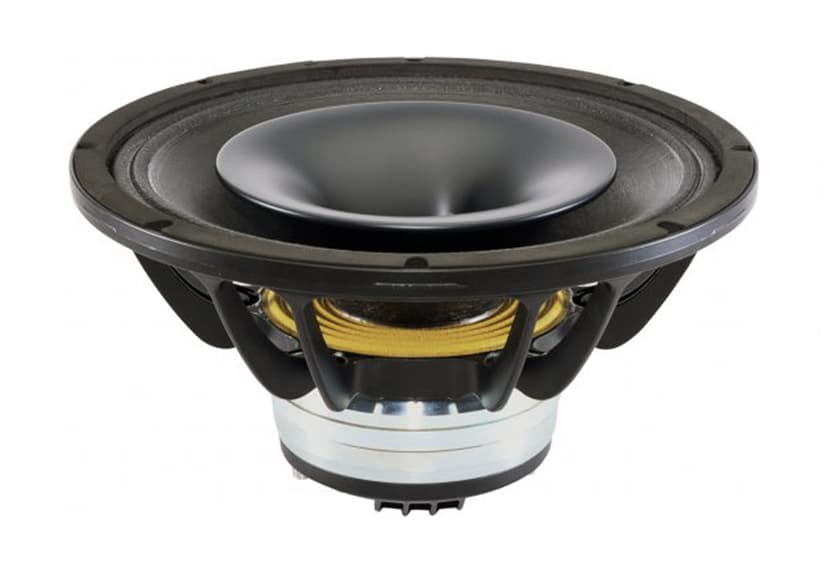

B&C
12HCX76
12"
Xmax6mm-14%
Qts0.19-10%
BL17.6Tm+26%
Vas120L-35%
Qes0.2-9%
57%
Similarity
Lavoce
CAN123.00T
12"
Xmax6mm-14%
Qts0.22+5%
BL18.5Tm+32%
Vas91L-51%
Qes0.23+5%
57%
Similarity
Lavoce
CAN123.00TH
12"
Xmax6mm-14%
Qts0.22+5%
BL18.5Tm+32%
Vas91L-51%
Qes0.23+5%
55%
Similarity
Scanspeak
28W/4878T01
12"
Xmax7mm0%
Qts0.26+24%
BL12Tm-14%
Vas104L-44%
Qes0.27+23%
52%
Similarity
Scanspeak
32W/8878T11
12"
Xmax7.5mm+7%
Qts0.26+24%
BL16.5Tm+18%
Vas235L+27%
Qes0.28+27%
50%
Similarity
£248.59
Eighteen Sound
12ND710
12"
Xmax5mm-29%
Qts0.2-5%
BL18Tm+29%
Vas92L-50%
Qes0.2-9%
49%
Similarity
£180.28
FaitalPRO
12FH500
12"
Xmax7.5mm+7%
Qts0.25+19%
BL17.5Tm+25%
Vas87.3L-53%
Qes0.26+18%
48%
Similarity
£163.54
FaitalPRO
12FH510
12"
Xmax7.5mm+7%
Qts0.24+14%
BL18.9Tm+35%
Vas81.3L-56%
Qes0.25+14%
42%
Similarity
£151.02
B&C
12PLB76
12"
Xmax5mm-29%
Qts0.23+10%
BL18.6Tm+33%
Vas75L-59%
Qes0.24+9%
