LF DriverWO34 series
SB Acoustics

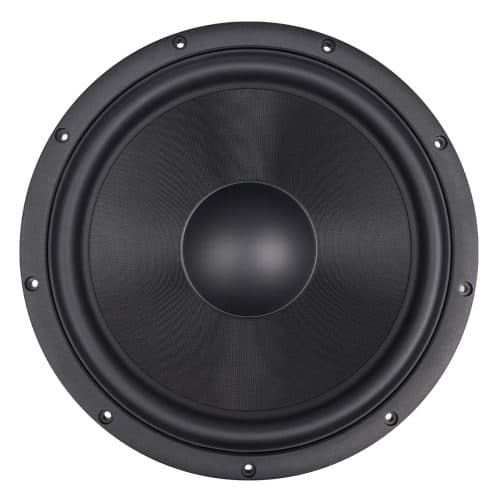

SB Acoustics WO34HC-8
SB Acoustics WO34HC-8 is a 13" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 20Hz, Qts 0.29, Vas 238L, Xmax 16.6mm, sensitivity 90.2dB, plus 971cm³ Vd and 67 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
13"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.2dB
EBP
67
Either alignment
Vd
971cm³

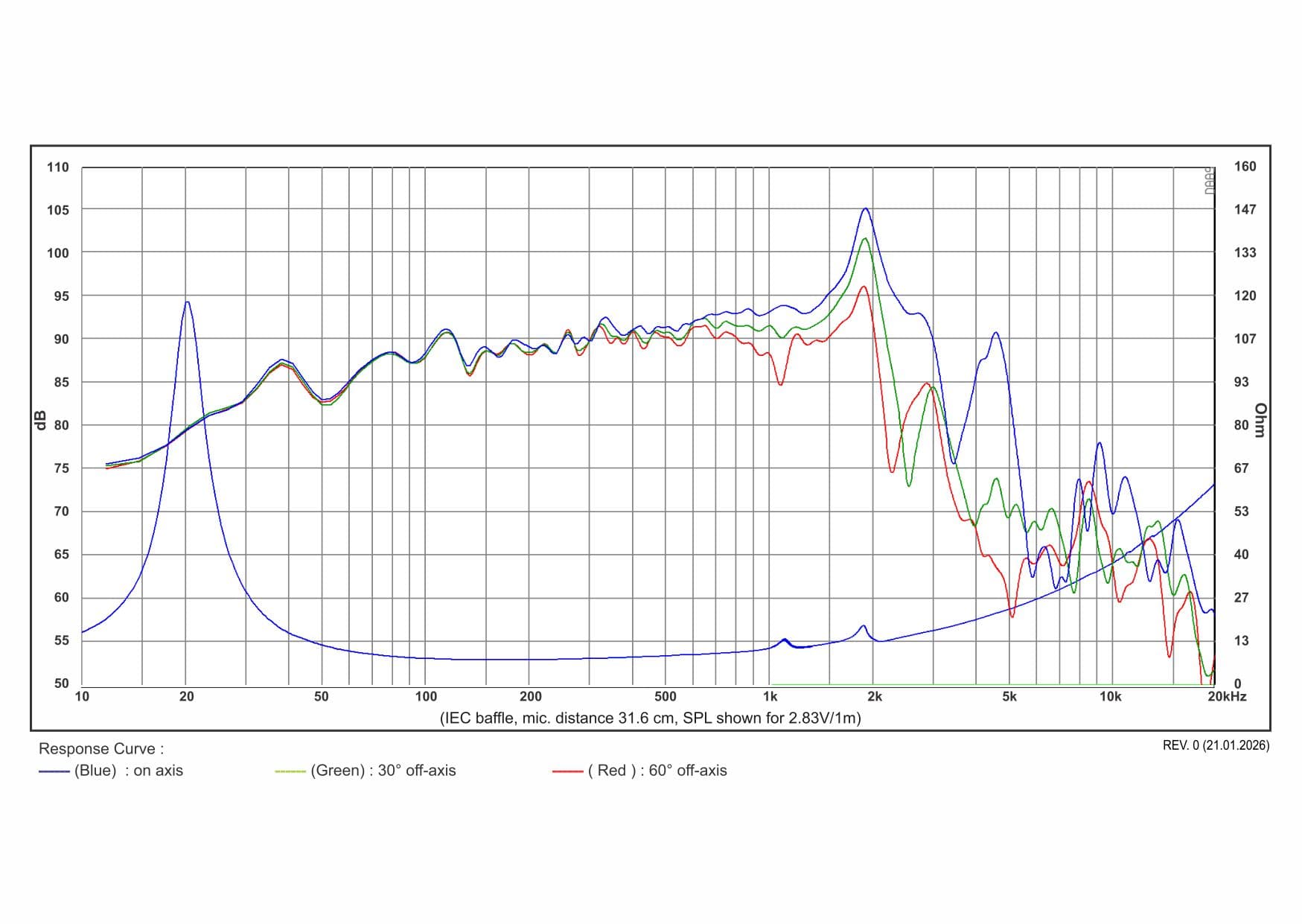

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees216 ptsp1medium
60 degrees221 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
216 plotted pointsMedium confidence949 selected pixels of 3,107 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
221 plotted pointsMedium confidence851 selected pixels of 2,771
T/S Parameters
Valid
Fs20Hz
Qts0.29
Qes0.30
Qms5.4
Vas238.0L
Re6.8Ω
Le1.00mH
BL19.0Tm
Sd585cm²
Mms127g
Xmax16.6mm
SPL90dB
Power200W
Impedance8Ω
Voice Coil76mm
Flux Density1.17T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.5kg
