13.5-inch LF driver · 14CXN series · 76 mm voice coil · 400 W
B&C 14CXN76 8Ω
8 Ω
No current price
- Fs
- 45Hz
- Xmax
- 8mm
- SPL
- 98dB
- Pe
- 400W
- BL
- 18.4T·m
- Vd
- 566cm³
- Qts
- 0.28
- Vas
- 131L

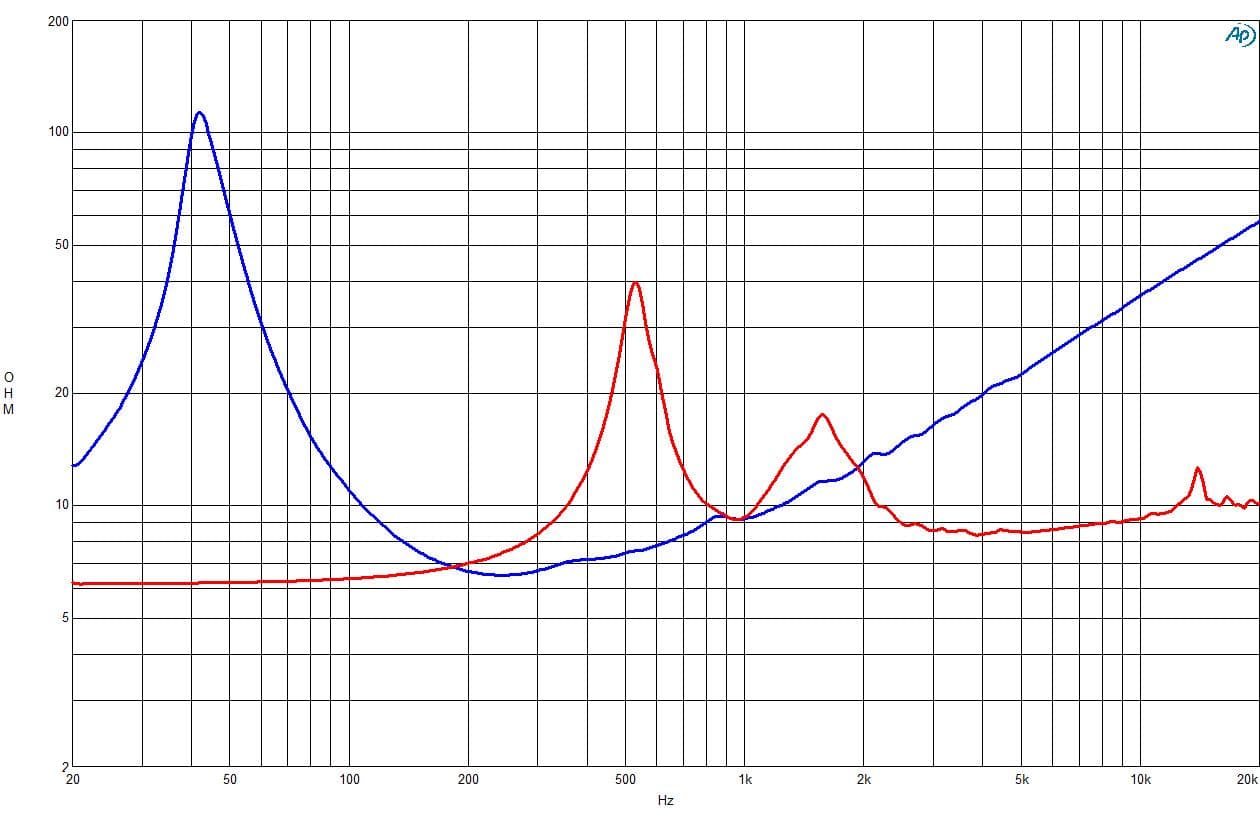

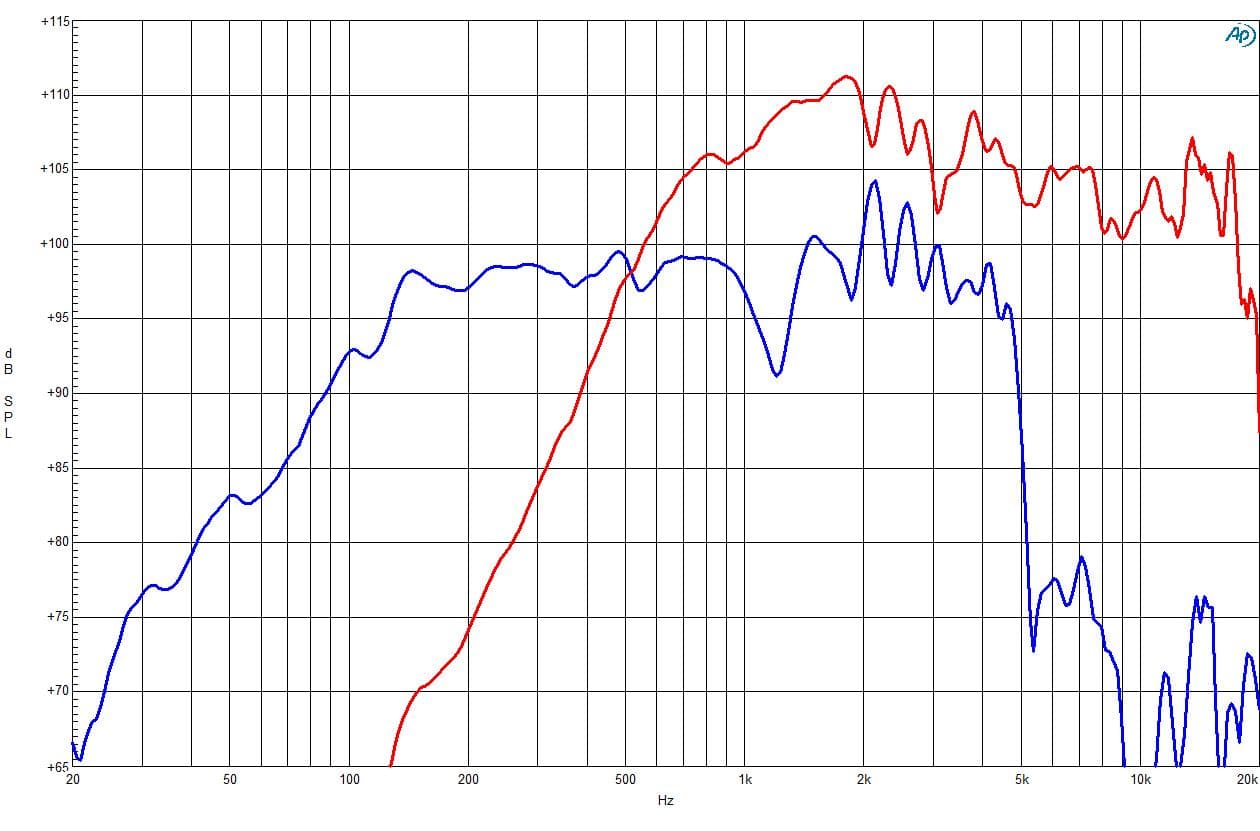

Published graphs
B&C 14CXN76 is a 13.5-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.28, Vas 131 L, Xmax 8 mm, sensitivity 98.2 dB, plus 566 cm³ Vd and 155 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 8.5
- Vas
- 131L
- Re
- 5.2Ω
- Le
- 1mH
Motor and cone
- BL
- 18.4T·m
- Sd
- 707cm²
- Mms
- 67g
- Xmax
- 8mm
- Vd †
- 566cm³
- Voice coil
- 76mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 98.2dB
- Manufacturer sensitivity
- 100dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- EBP †
- 155 · Leans vented
Sensitivity shows 98.2 dB, calculated from the T/S values. B&C publishes 100.0 dB, 1.8 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 18.4T·m
- Fs
- 45Hz
- Le
- 1mH
- Re
- 5.2Ω
- Sd
- 707cm²
- Mms
- 67g
- Qes
- 0.29
- Qms
- 8.5
- Qts
- 0.28
- SPL
- 98.2dB
- Vas
- 131L
- Xmax
- 8mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 100dB
- Nominal power
- 400W
- Calculated sensitivity †
- 98.2dB
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.5Ω
- Voice coil
- 76mm
- Bl
- 18.4 Tm
- Fs
- 45 Hz
- Le
- 1 mH
- Re
- 5.2 Ω
- Sd
- 707 cm² (109.59 in²)
- Ebp
- 155 Hz
- Mms
- 67 g
- Qes
- 0.29
- Qms
- 8.5
- Qts
- 0.28
- Vas
- 131 dm³ (4.63 ft³)
- Η0
- 4 %
- Xvar
- 8 mm
- Sensitivity
- 100 dB
- Flux density
- 1.05 T
- Winding depth
- 16.5 mm (0.65 in)
- Former material
- Glass Fibre
- Nominal diameter
- 343 mm (13.5 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 9 mm (0.35 in)
- Voice coil diameter
- 76 mm (3 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 105dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 1.80T
- Sensitivity
- 105dB
- Nominal power
- 80W
- Manufacturer sensitivity
- 105dB
- Min. impedance
- 8.2Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Inductance
- 0.14 mH
- Sensitivity
- 105 dB
- Flux density
- 1.8 T
- Nominal diameter
- 343 mm (13.5 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.2 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Polyester/Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
