B&C design
CX14
Multi-purpose 14" coaxial speaker (active or passive)
- Drivers
- 1 × 14CXN88, 8 Ω
13.5-inch LF driver · 14CXN series · 88 mm voice coil · 500 W
B&C 14CXN88 8Ω
No current price
- Fs
- 46Hz
- Xmax
- 9mm
- SPL
- 98dB
- Pe
- 500W
- BL
- 20.7T·m
- Vd
- 636cm³
- Qts
- 0.26
- Vas
- 100L

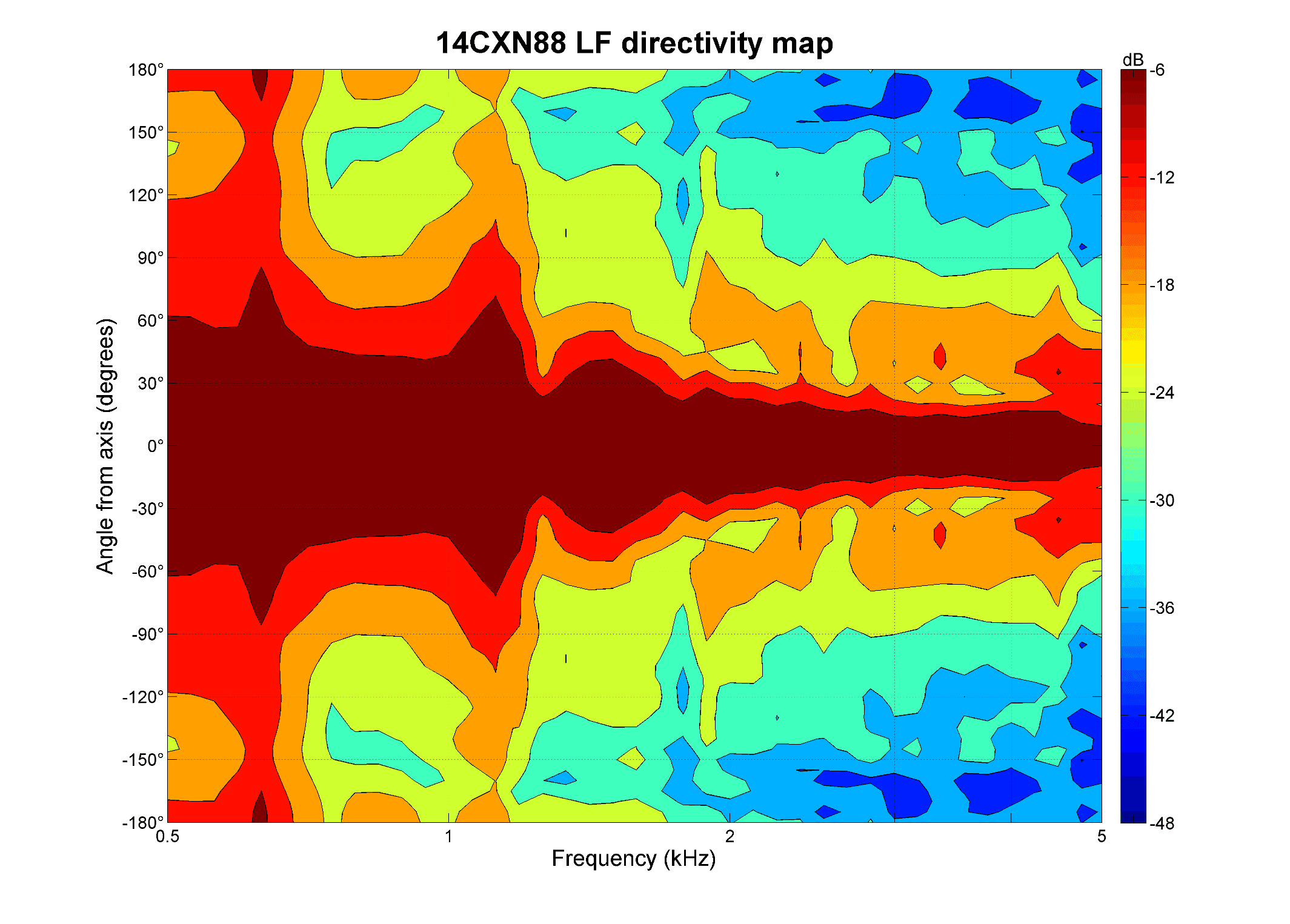

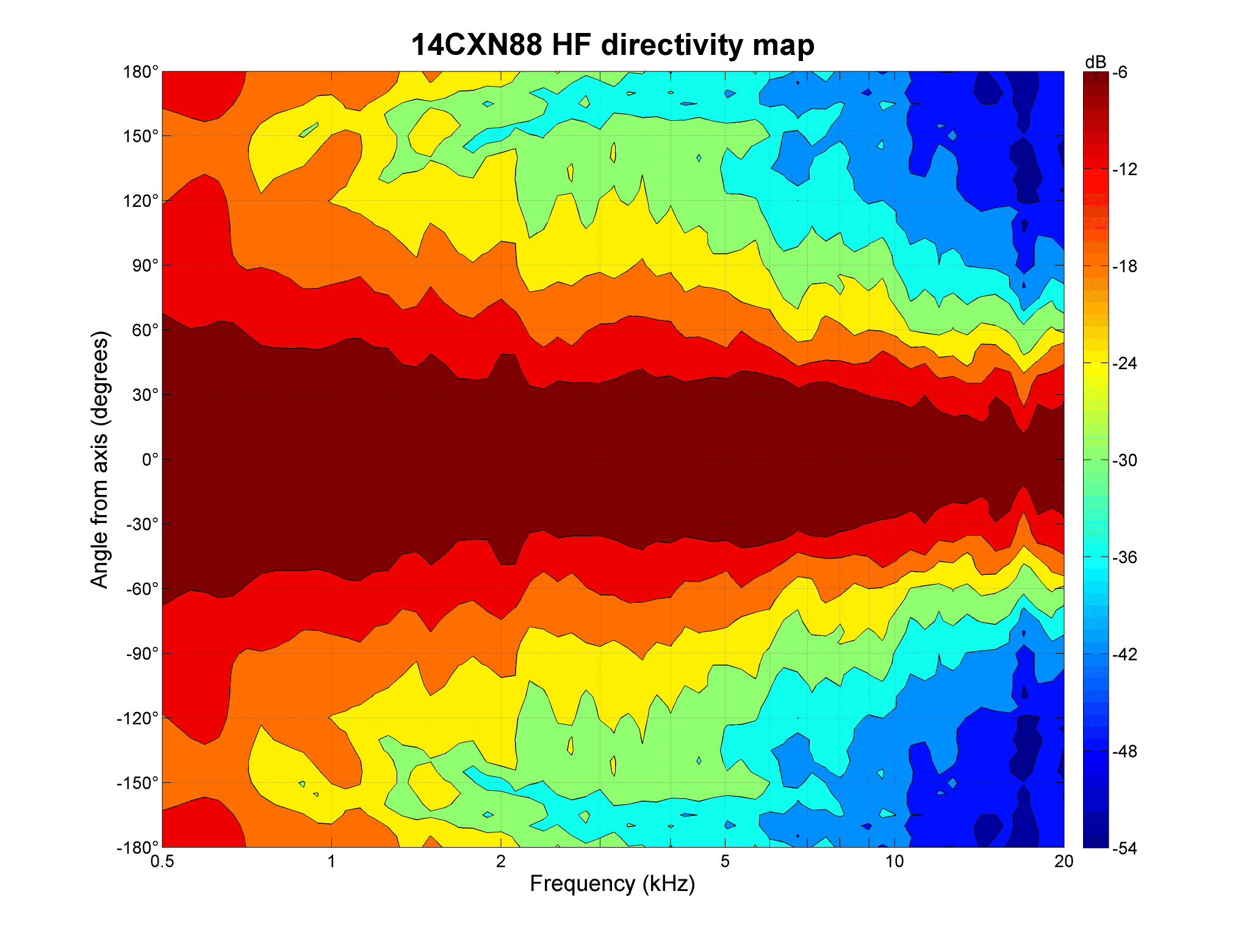

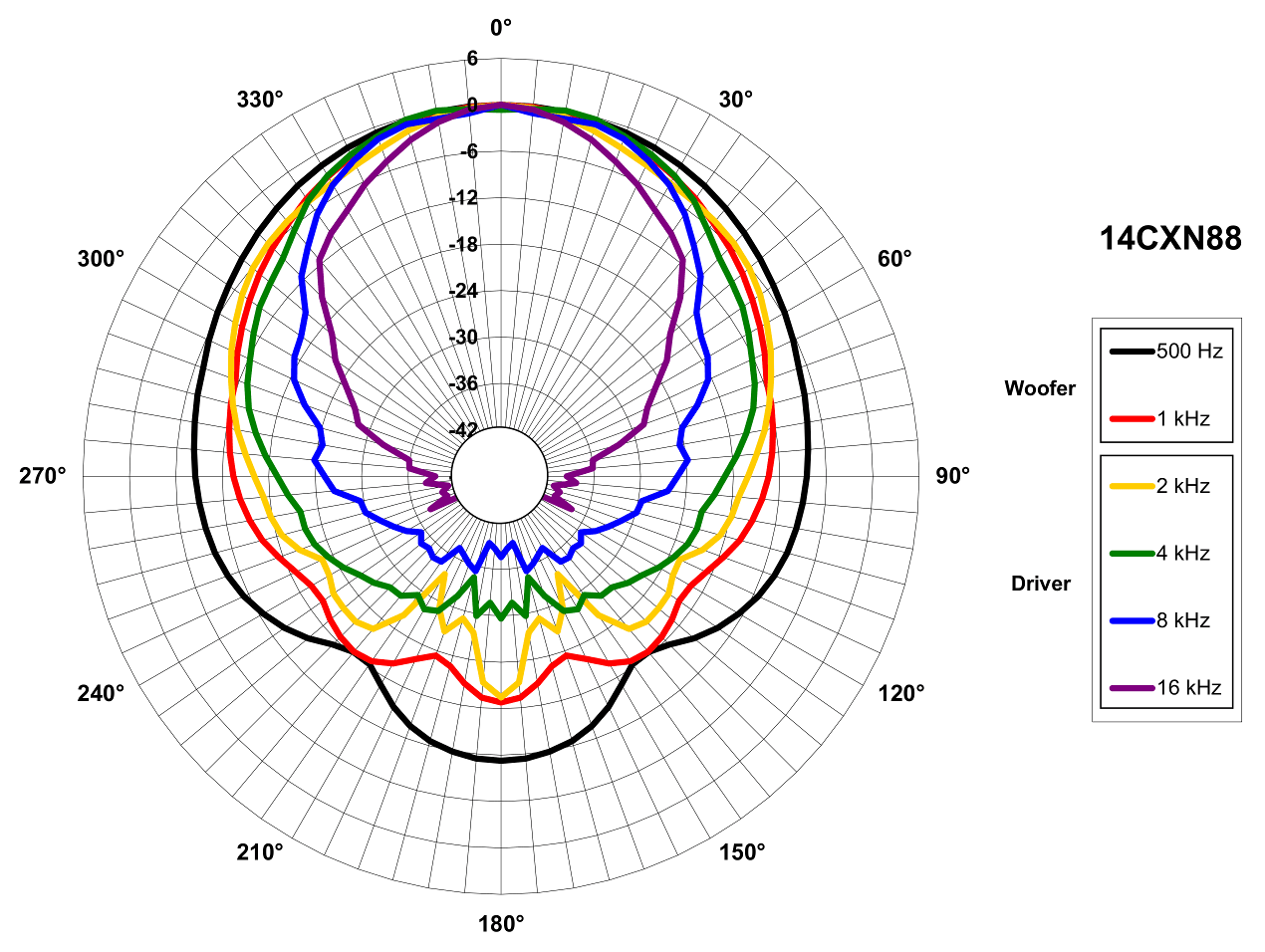

Published graphs
B&C 14CXN88 is a 13.5-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.26, Vas 100 L, Xmax 9 mm, sensitivity 97.6 dB, plus 636 cm³ Vd and 170 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 46Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 13
- Vas
- 100L
- Re
- 4.7Ω
- Le
- 0.95mH
Motor and cone
- BL
- 20.7T·m
- Sd
- 707cm²
- Mms
- 83g
- Xmax
- 9mm
- Vd †
- 636cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 97.6dB
- Manufacturer sensitivity
- 99dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- EBP †
- 170 · Leans vented
Sensitivity shows 97.6 dB, calculated from the T/S values. B&C publishes 99.0 dB, 1.4 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 20.7T·m
- Fs
- 46Hz
- Le
- 0.95mH
- Re
- 4.7Ω
- Sd
- 707cm²
- Mms
- 83g
- Qes
- 0.27
- Qms
- 13
- Qts
- 0.26
- SPL
- 97.6dB
- Vas
- 100L
- Xmax
- 9mm
- Power
- 500W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 99dB
- Nominal power
- 500W
- Calculated sensitivity †
- 97.6dB
- Manufacturer sensitivity
- 99dB
- Min. impedance
- 6.8Ω
- Voice coil
- 88mm
- Bl
- 20.7 Tm
- Fs
- 46 Hz
- Le
- 0.95 mH
- Re
- 4.7 Ω
- Sd
- 707 cm² (109.59 in²)
- Ebp
- 170 Hz
- Mms
- 83 g
- Qes
- 0.27
- Qms
- 13
- Qts
- 0.26
- Vas
- 100 dm³ (3.53 ft³)
- Η0
- 3.6 %
- Xvar
- 9 mm
- Sensitivity
- 99 dB
- Flux density
- 1.05 T
- Winding depth
- 22 mm (0.87 in)
- Former material
- Glass Fibre
- Nominal diameter
- 343 mm (13.5 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.8 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Voice coil diameter
- 88 mm (3.5 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 500 W
- Continuous power handling
- 1000 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 106dB
- Power
- 80W
- Impedance
- 8Ω
- Flux density
- 1.75T
- Sensitivity
- 106dB
- Nominal power
- 80W
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 8.8Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Inductance
- 0.14 mH
- Sensitivity
- 106 dB
- Flux density
- 1.75 T
- Nominal diameter
- 343 mm (13.5 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.8 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 80 W
- Continuous power handling
- 160 W
