LF Driver14DS series
B&C

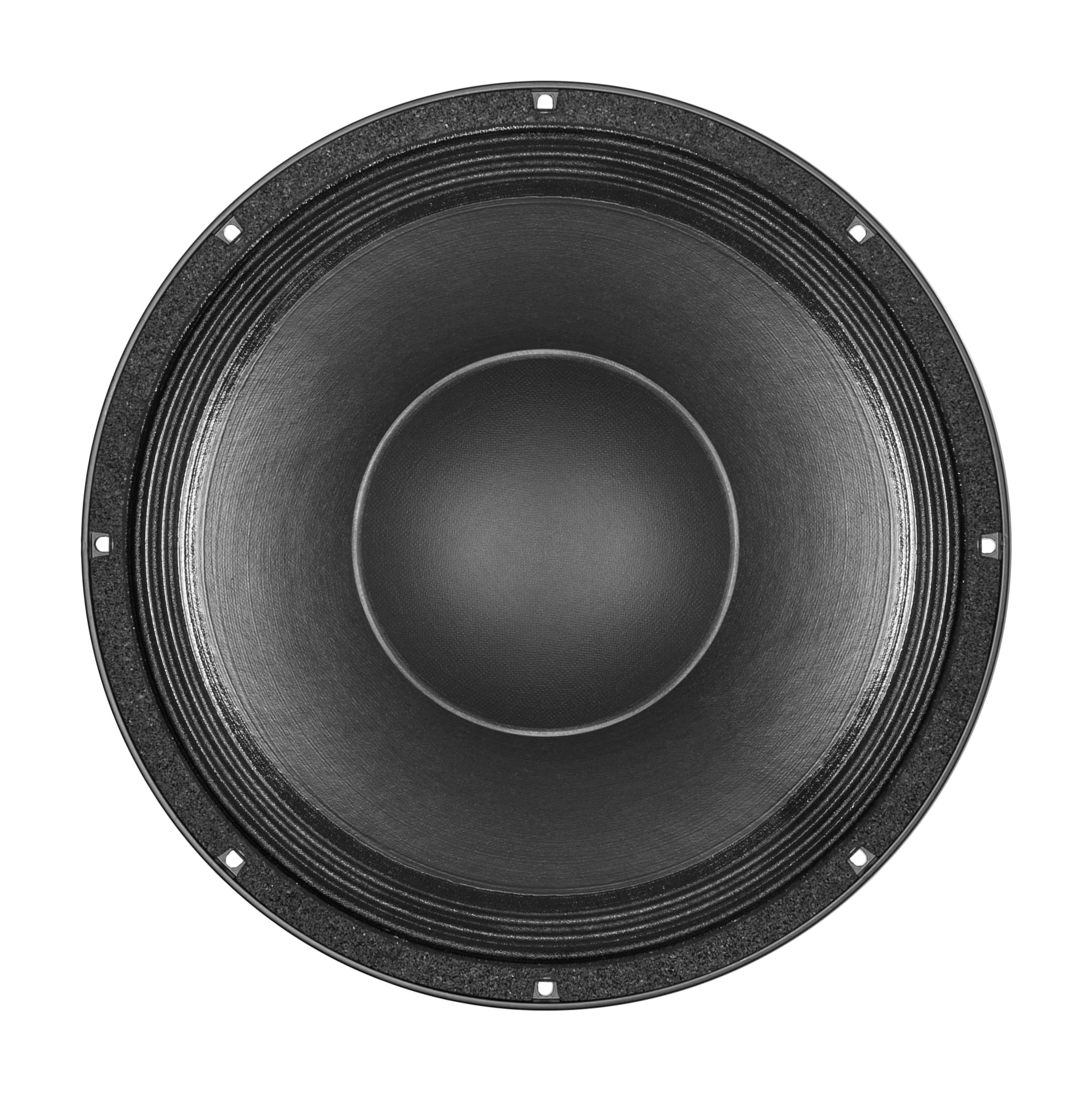

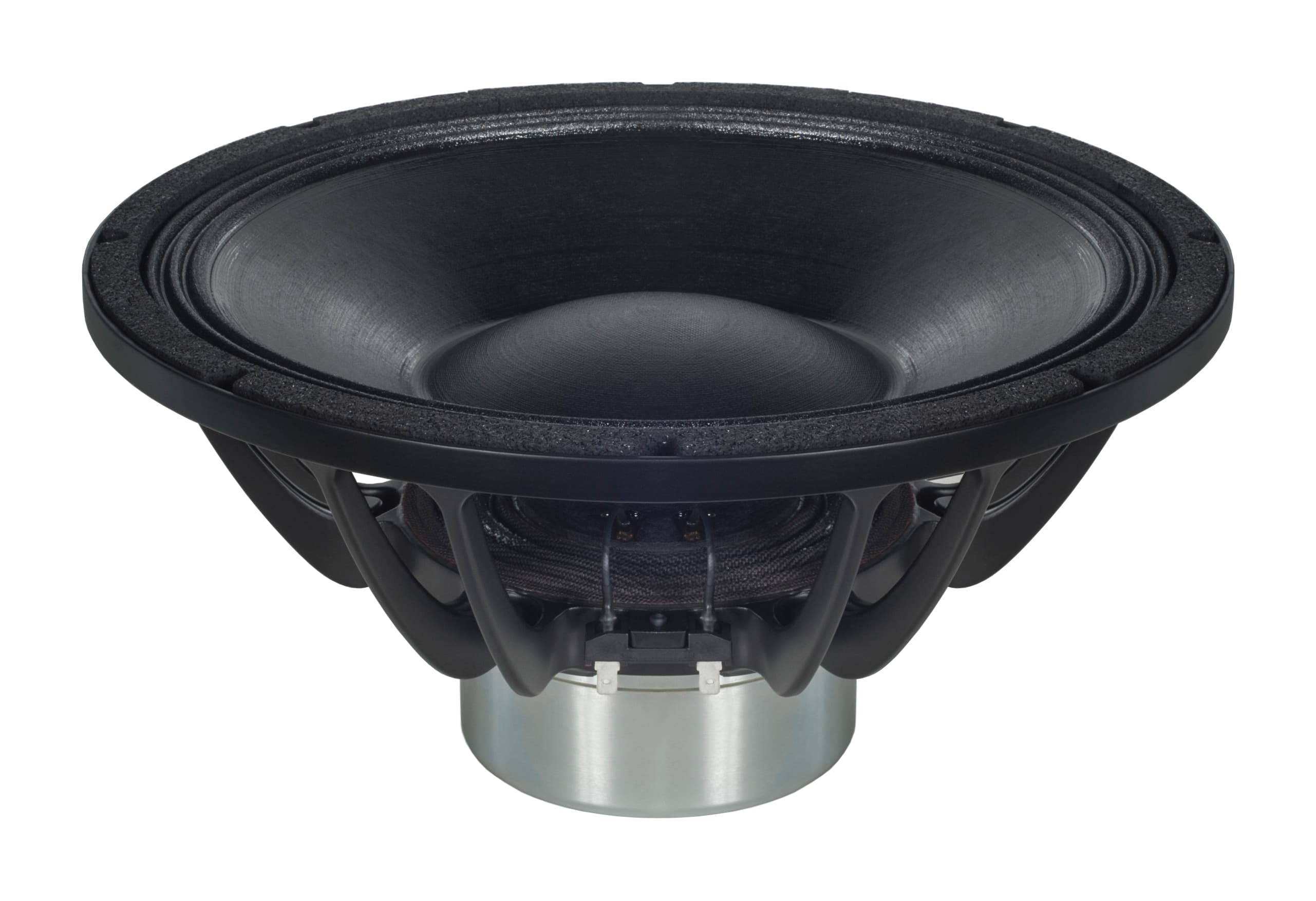

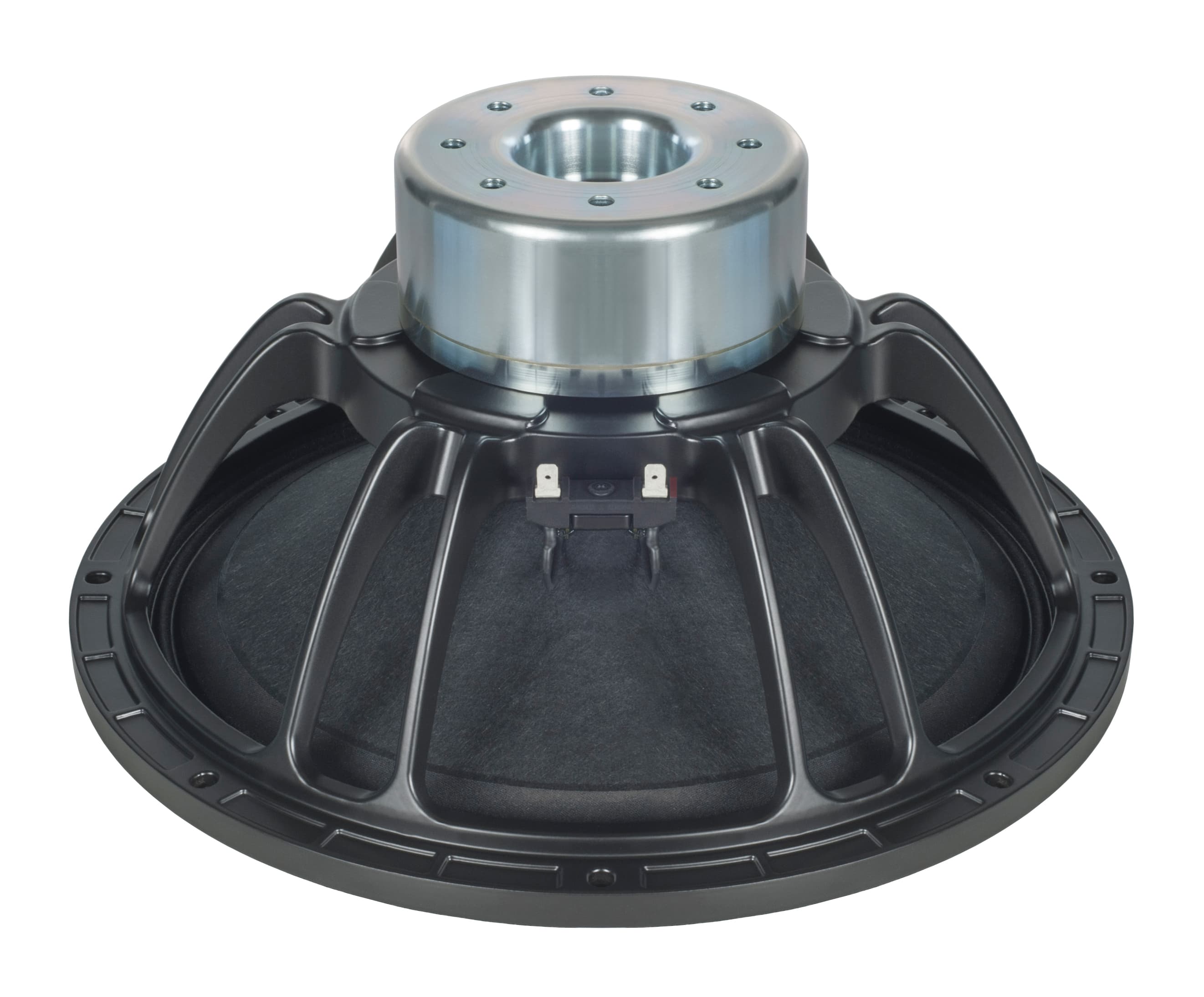

B&C 14DS88
B&C 14DS88 is a 13.5" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 44Hz, Qts 0.18, Vas 55L, Xmax 11mm, sensitivity 95.9dB, plus 778cm³ Vd and 232 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
13.5"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.9dB
97.3dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
232
Vented alignment
Vd
778cm³

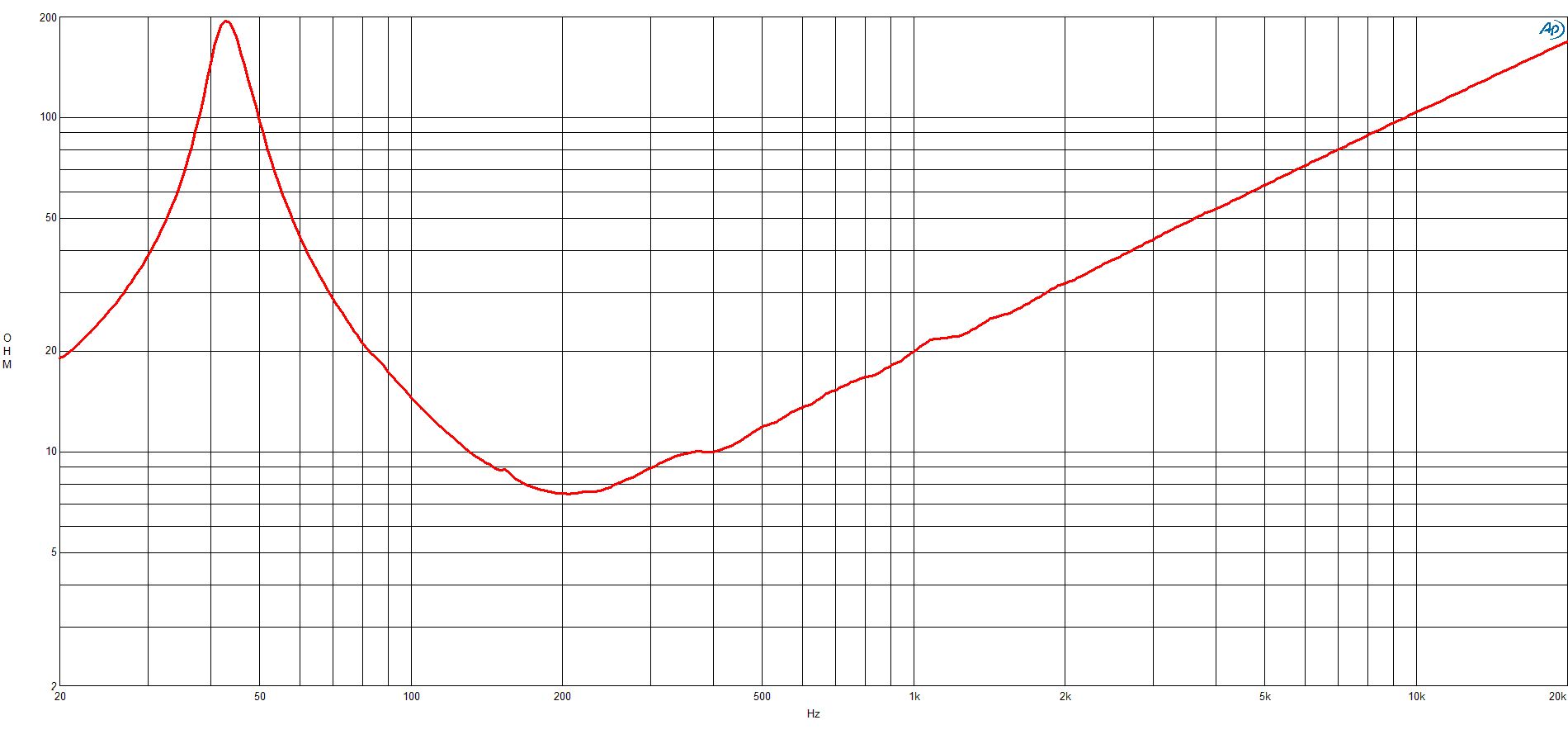

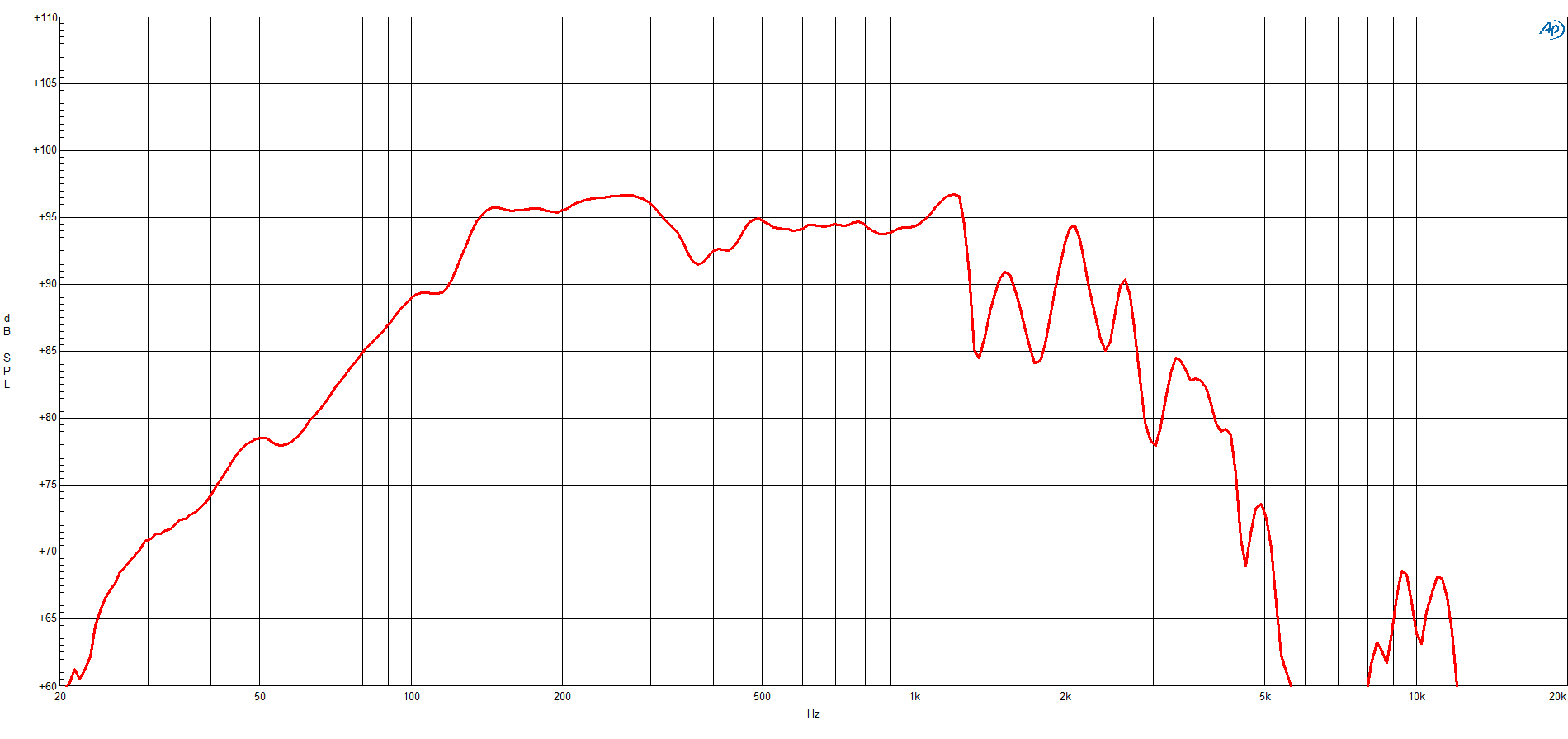

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs44Hz
Qts0.18
Qes0.19
Qms8.0
Vas55.0L
Re5.6Ω
Le2.05mH
BL36.9Tm
Sd707cm²
Mms170g
Xmax11.0mm
SPL96dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance7.4Ω
F Low45Hz
F High1200Hz
Voice Coil88mm
Flux Density1.05T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.9kg
Diameter360.0mm
Overall Depth174.4mm
Cutout Diameter325.0mm
Bolt Circle Diameter342.0mm
Additional Manufacturer Specs
Bl36.9 Tm
Fs44 Hz
Le2.05 mH
Re5.6 Ω
Sd707 cm² (109.6 in²)
Ebp232 Hz
Mms170 g
Qes0.19
Qms8
Qts0.18
Vas55 dm³ (1.94 ft³)
η02.4 %
Xmax11 mm
Xvar10.8 mm
SpiderDouble Silicone
Cone ShapeCurvilinear
Pole DesignT-Pole
Winding Depth27.5 mm (1.08 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter359 mm (14 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Bolt Circle Diameter342 mm (13.46 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter325 mm (12.8 in)
Flange And Gasket Thickness15 mm (0.59 in)
Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
