13.5-inch LF driver · WAN143 series · 75 mm voice coil · 500 W

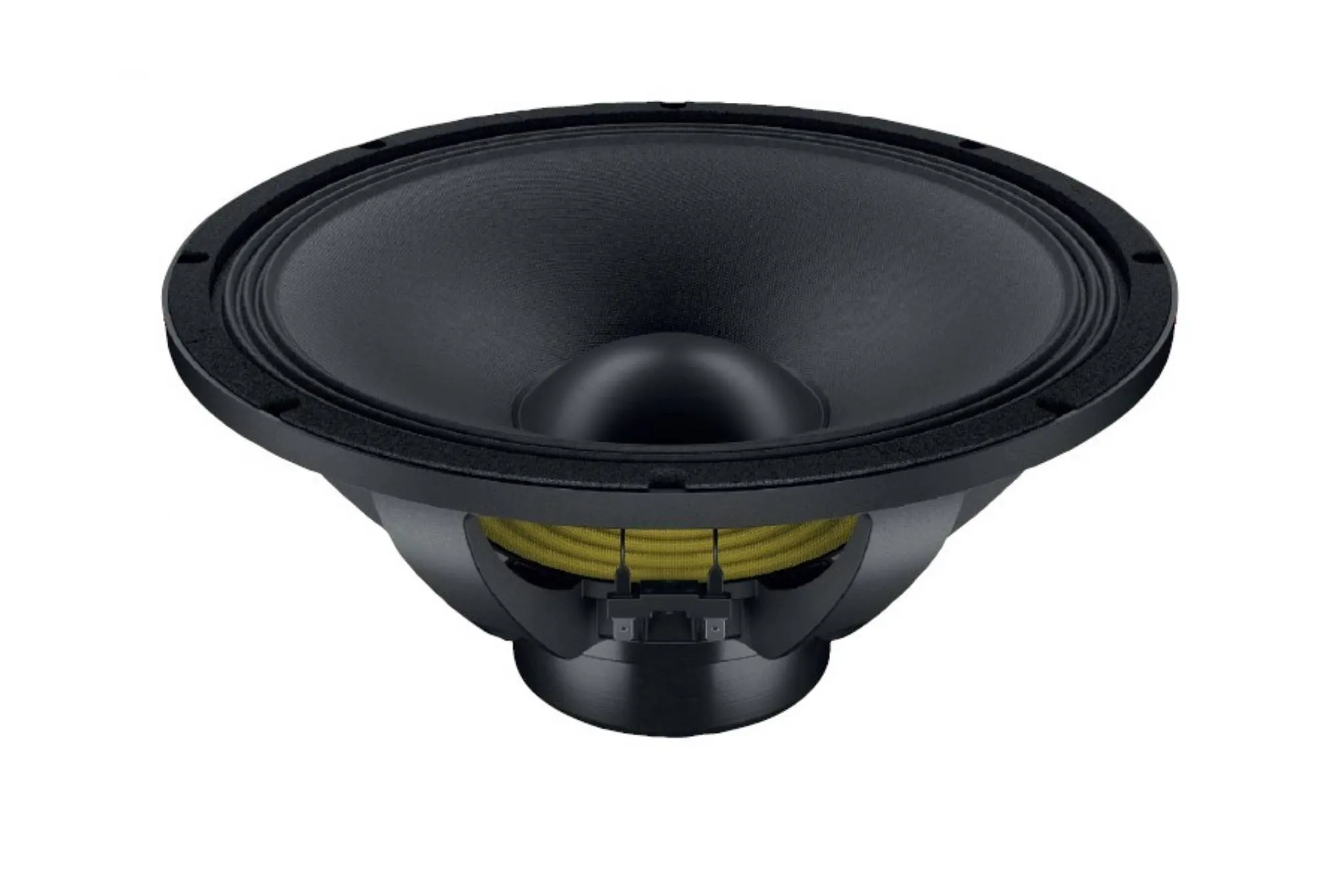

Lavoce WAN143.00 8Ω
8 Ω · 45–3000 Hz
No current price
- Fs
- 45Hz
- Xmax
- 7.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 18.7T·m
- Vd
- 535cm³
- Qts
- 0.35
- Vas
- 103L

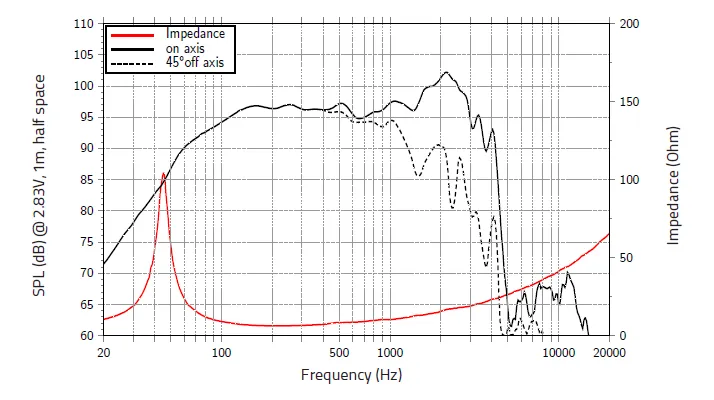

Published graphs
Lavoce WAN143.00 is a 13.5-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.35, Vas 102.9 L, Xmax 7.5 mm, sensitivity 96 dB, plus 535 cm³ Vd and 118 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.35
- Qes
- 0.38
- Qms
- 5.0
- Vas
- 102.9L
- Re
- 5.3Ω
- Le
- 0.80mH
Motor and cone
- BL
- 18.7T·m
- Sd
- 713cm²
- Mms
- 87g
- Xmax
- 7.5mm
- Vd †
- 535cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 45–3000Hz
- EBP †
- 118 · Leans vented
Size and mounting
- Weight
- 5.1kg
Other published values
- Cms
- 0.14mm/N
- Xmech
- 13.4
- Power Program
- 1000
Sensitivity shows 96.0 dB, calculated from the T/S values. Lavoce publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 13.5″
- BL
- 18.7T·m
- Fs
- 45Hz
- Le
- 0.80mH
- Re
- 5.3Ω
- Sd
- 713cm²
- Cms
- 0.14mm/N
- Mms
- 87g
- Qes
- 0.38
- Qms
- 5.0
- Qts
- 0.35
- SPL
- 96dB
- Vas
- 102.9L
- Xmax
- 7.5mm
- Xmech
- 13.4
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Power Program
- 1000
- Calculated sensitivity †
- 96dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 98dB
- Min. impedance
- 6.3Ω
- Voice coil
- 75mm
- Weight
- 5.1kg
