LF Driver14NA series
B&C
B&C 14NA100
B&C 14NA100 is a 13.5" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 43Hz, Qts 0.23, Vas 99.5L, Xmax 8.8mm, sensitivity 97.2dB, plus 622cm³ Vd and 179 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £279.65.
Size
13.5"
Impedance
8Ω
RMS Power
800W
Sensitivity
97.2dB
99.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
179
Vented alignment
Vd
622cm³

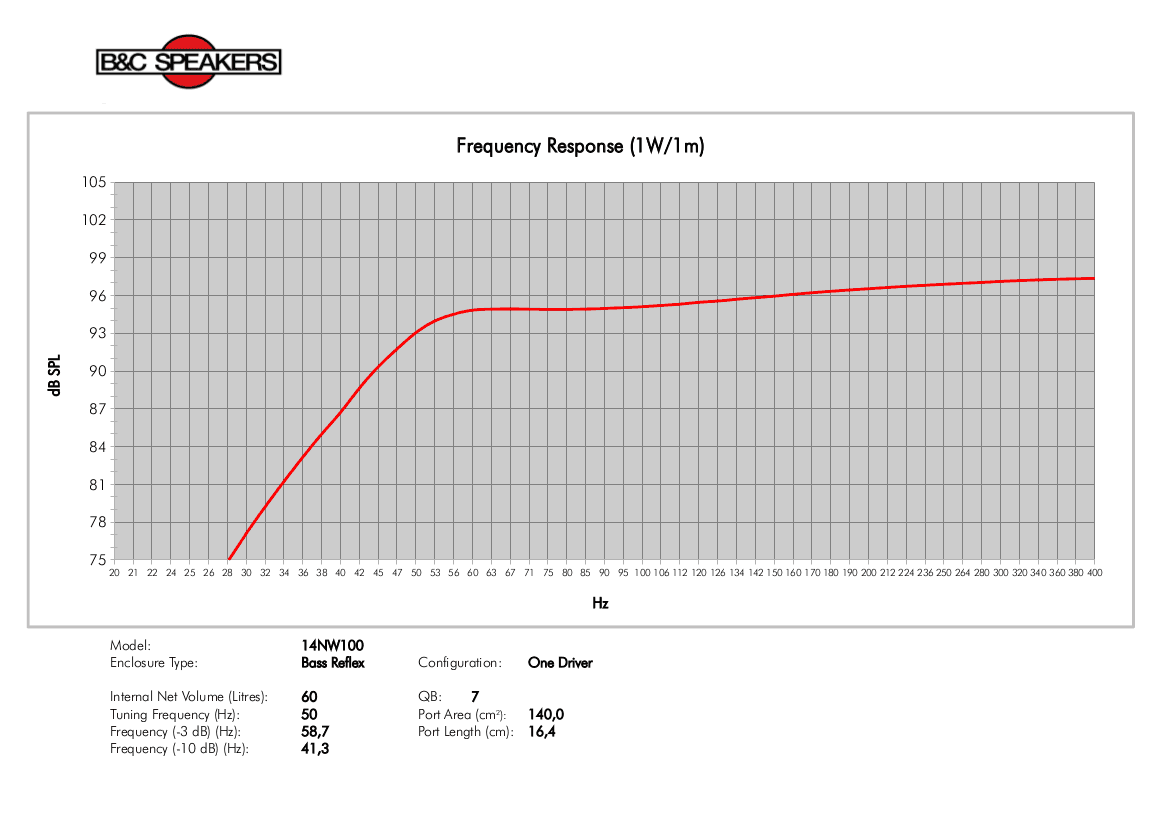

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs43Hz
Qts0.23
Qes0.24
Qms5.6
Vas99.5L
Re5.1Ω
Le0.74mH
BL23.5Tm
Sd707cm²
Mms97g
Xmax8.8mm
SPL97dB
Power800W
Power Nominal800W
Impedance8Ω
Min Impedance6.2Ω
F Low45Hz
F High2000Hz
Voice Coil100mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£279.65
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Diameter359.0mm
Overall Depth176.0mm
Cutout Diameter324.0mm
Bolt Circle Diameter343.0mm
Additional Manufacturer Specs
Bl23.5 Tm
Fs43 Hz
Le0.74 mH
Re5.1 Ω
Sd707 cm² (109.59 in²)
Ebp179 Hz
Mms96.5 g
Qes0.24
Qms5.6
Qts0.23
Vas99.5 dm³ (3.51 ft³)
η03.1 %
ConeRCK14NA1008
Xmax8.8 mm
Xvar8.5 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth23 mm (0.91 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter359 mm (14 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning50 Hz
Bolt Circle Diameter343 mm (13.5 in)
Recommended Enclosure60 dm³ (2.12 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter324 mm (12.76 in)
Flange And Gasket Thickness12 mm (0.47 in)
Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
