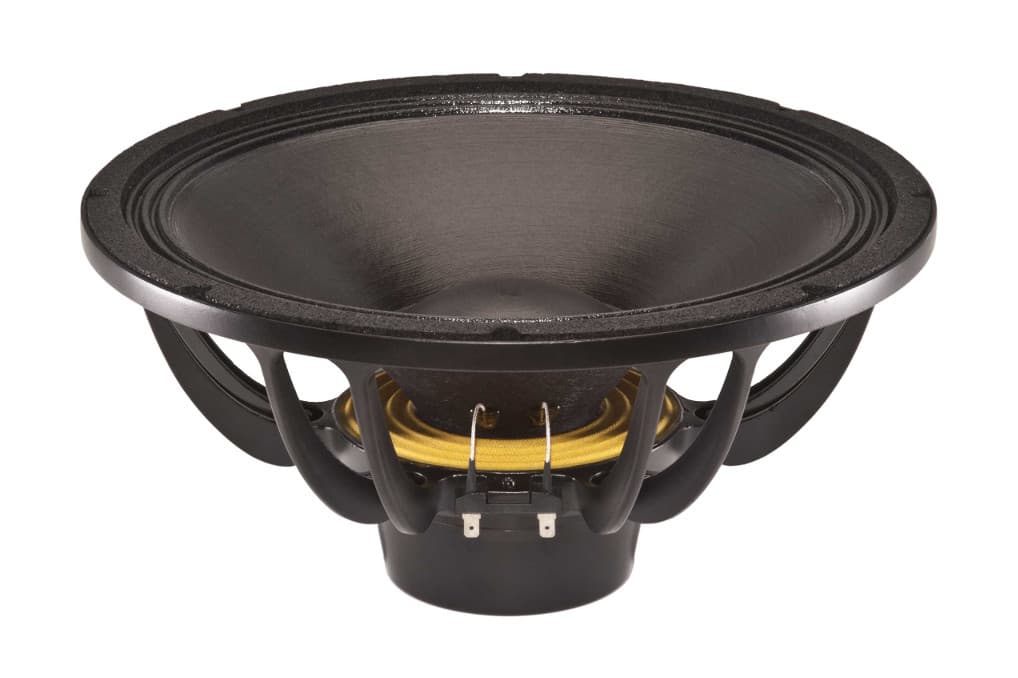

B&C 14NDL76
B&C 14NDL76 is a 13.5" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 41Hz, Qts 0.30, Vas 123L, Xmax 8mm, sensitivity 96.4dB, plus 566cm³ Vd and 132 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
13.5"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.4dB
99.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
132
Vented alignment
Vd
566cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

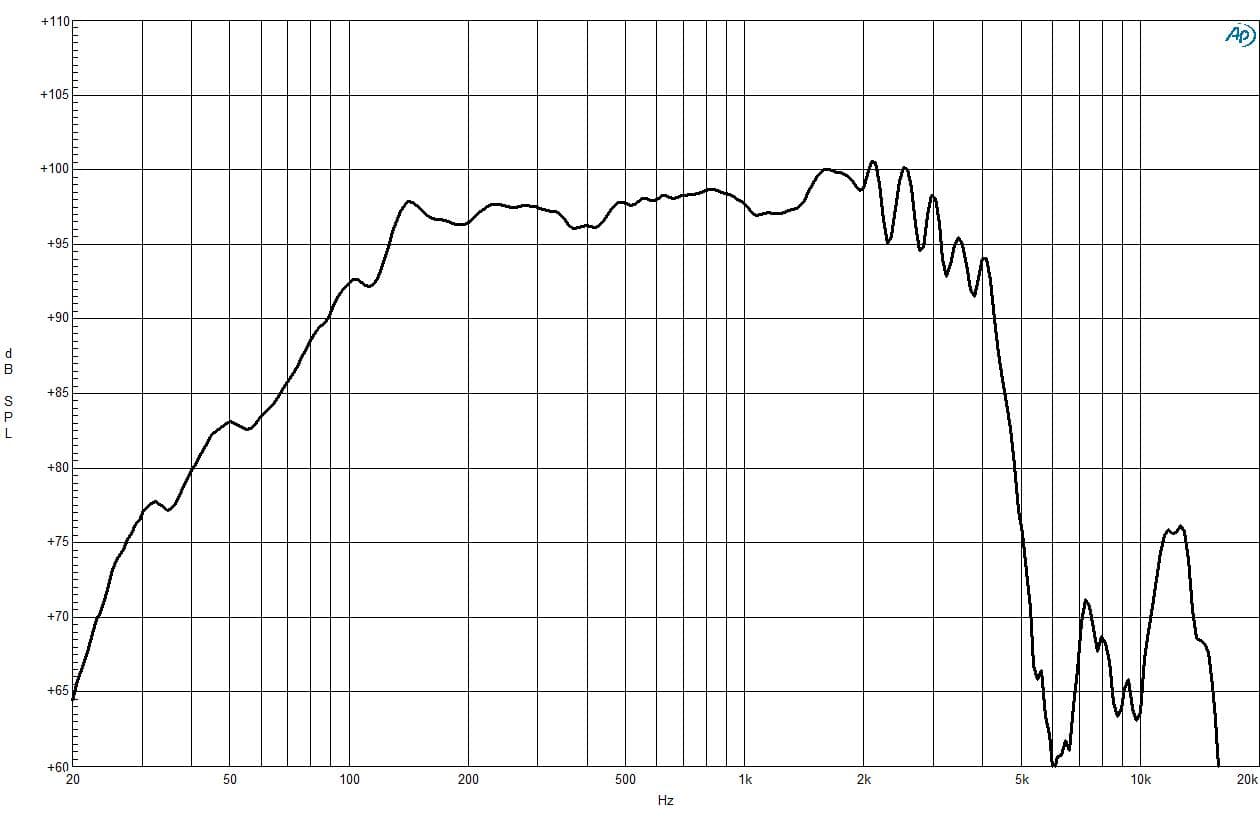

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 0d3562304fb7…Medium confidence6,750 selected pixels of 6,750 - Trace datasheet-response-trace-poc/v2

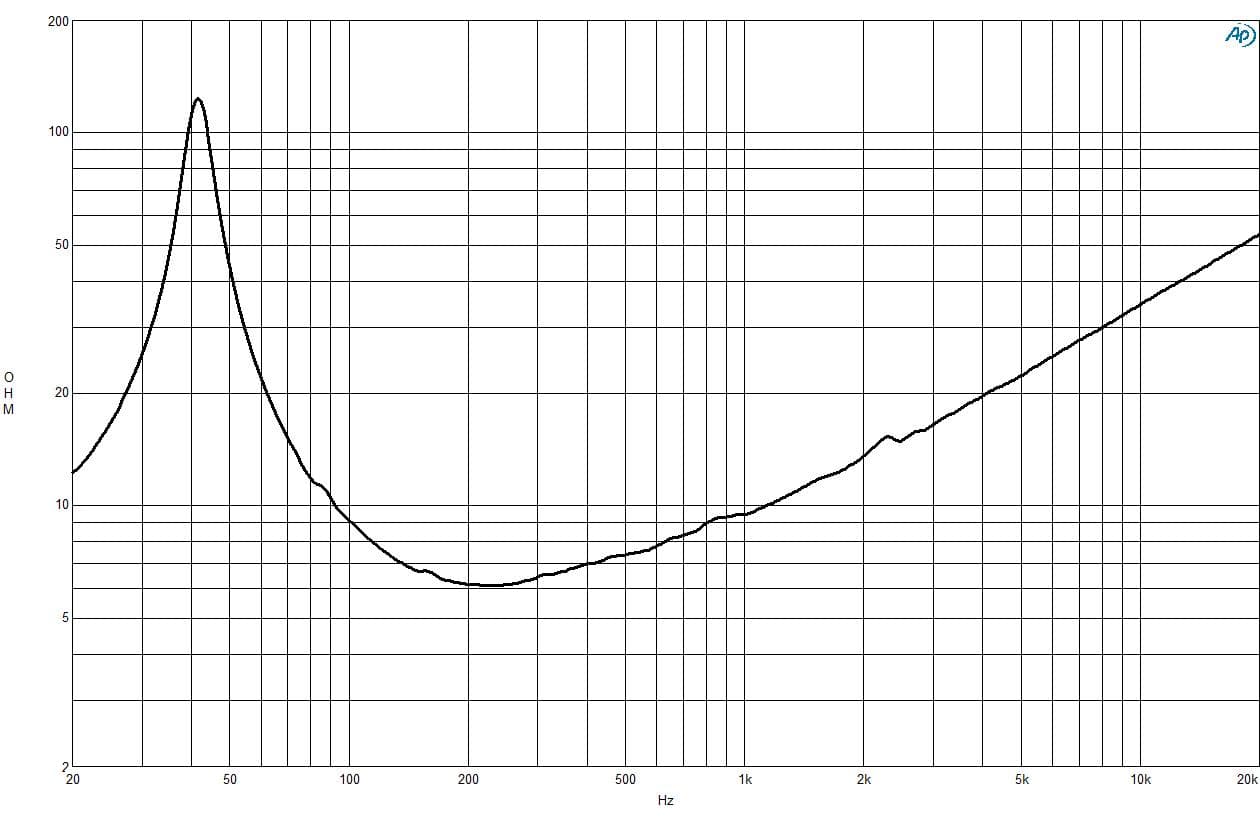

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 0d3562304fb7…Medium confidence4,024 selected pixels of 4,024
Frequency response

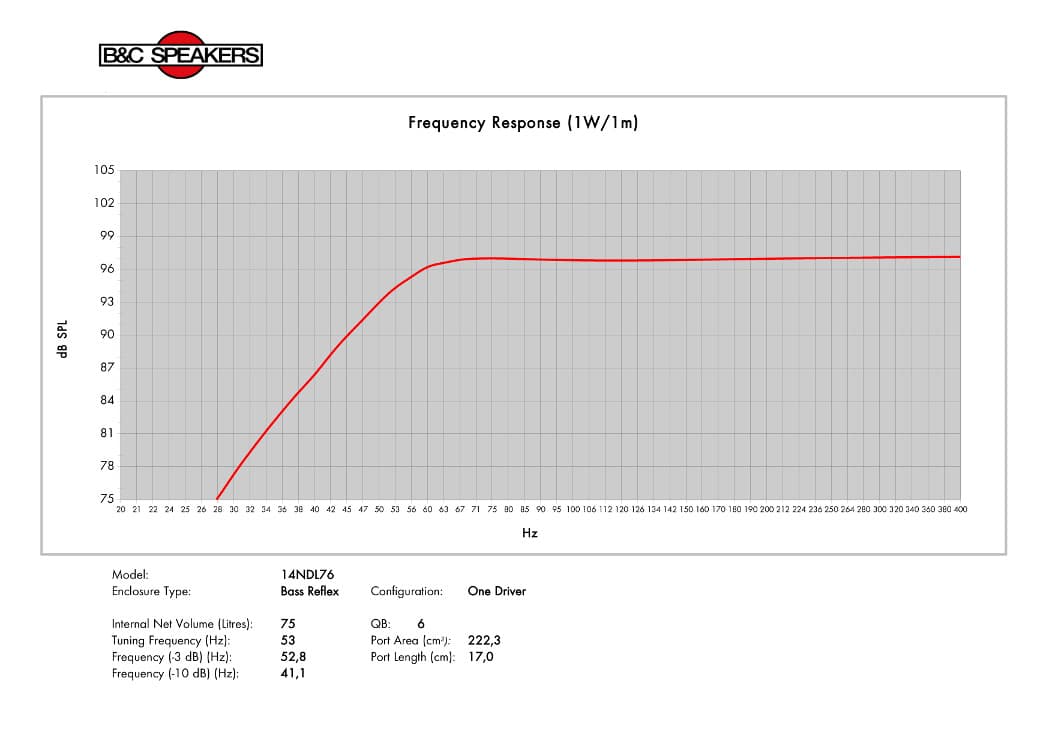

Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs41Hz
Qts0.30
Qes0.31
Qms8.2
Vas123.0L
Re5.0Ω
Le1.10mH
BL19.0Tm
Sd707cm²
Mms85g
Xmax8.0mm
SPL96dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance6.1Ω
F Low40Hz
F High3000Hz
Voice Coil76mm
Flux Density1.15T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter359.0mm
Overall Depth161.0mm
Cutout Diameter323.0mm
Bolt Circle Diameter343.0mm
Additional Manufacturer Specs
Bl19 Tm
Fs41 Hz
Le1.1 mH
Re5 Ω
Sd707 cm² (109.59 in²)
Ebp132 Hz
Mms85 g
Qes0.31
Qms8.2
Qts0.3
Vas123 dm³ (4.34 ft³)
η02.7 %
ConeRCK14NDL76
Xmax8 mm
Xvar9.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21 mm (0.83 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter359 mm (14 in)
Winding MaterialCopper
Magnetic Gap Depth10 mm (0.4 in)
Recommended Tuning53 Hz
Bolt Circle Diameter343 mm (13.5 in)
Recommended Enclosure75 dm³ (2.65 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter323 mm (12.72 in)
Flange And Gasket Thickness12 mm (0.47 in)
Air Volume Occupied By Driver3 dm³ (0.11 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
14NDL76
13.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
B&C

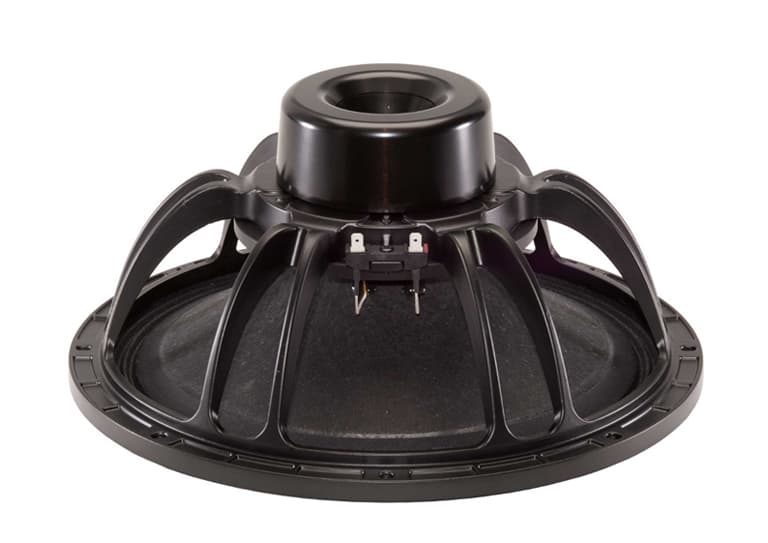

14NDL88
13.5"
Xmax8mm0%
Qts0.30%
BL19.9Tm+5%
Vas102L-17%
Qes0.310%
90%
Similarity
B&C

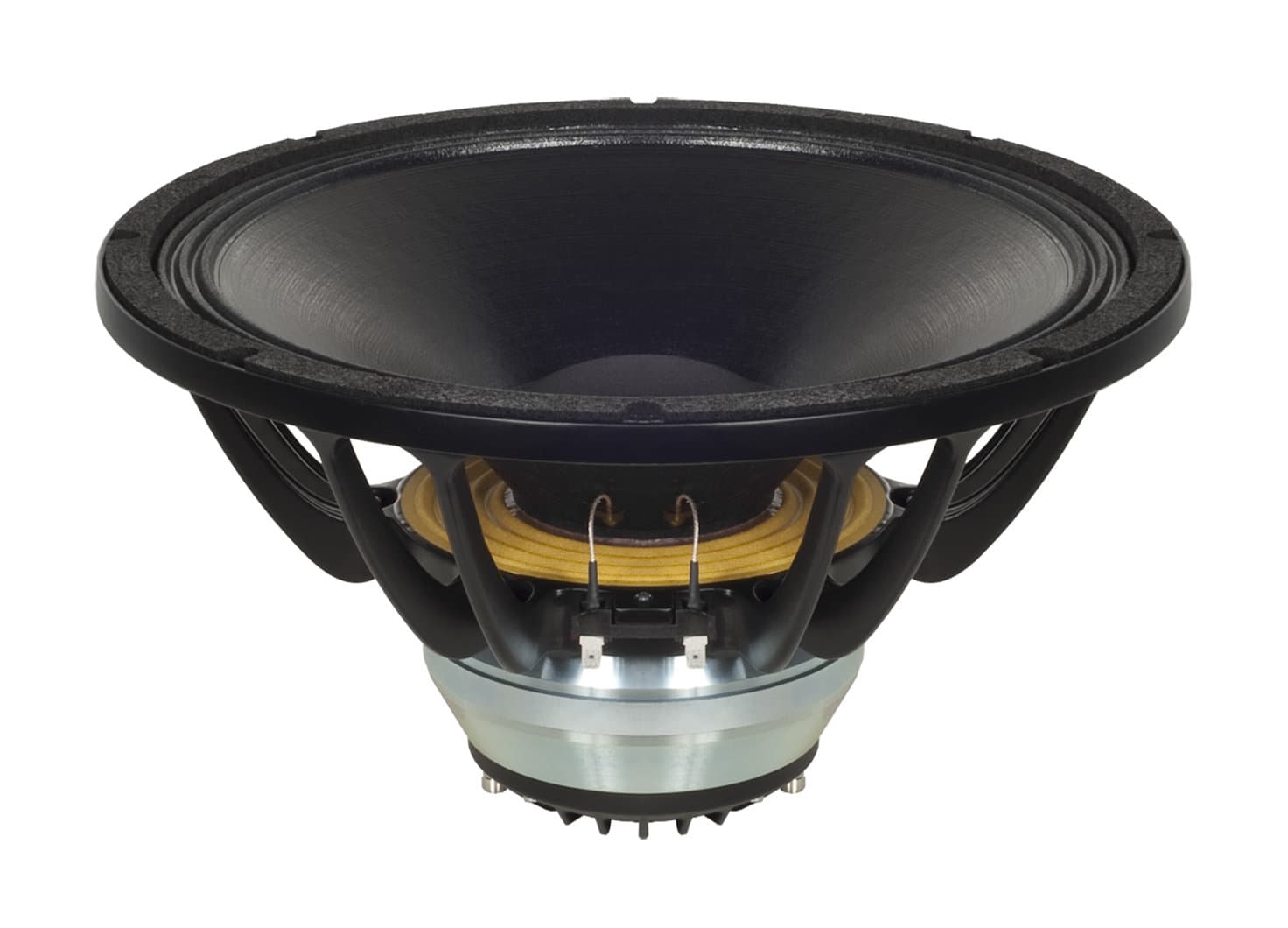

14CXN76
13.5"
Xmax8mm0%
Qts0.28-7%
BL18.4Tm-3%
Vas131L+7%
Qes0.29-6%
70%
Similarity
B&C
14CXN88
13.5"
Xmax9mm+13%
Qts0.26-13%
BL20.7Tm+9%
Vas100L-19%
Qes0.27-13%
69%
Similarity
B&C

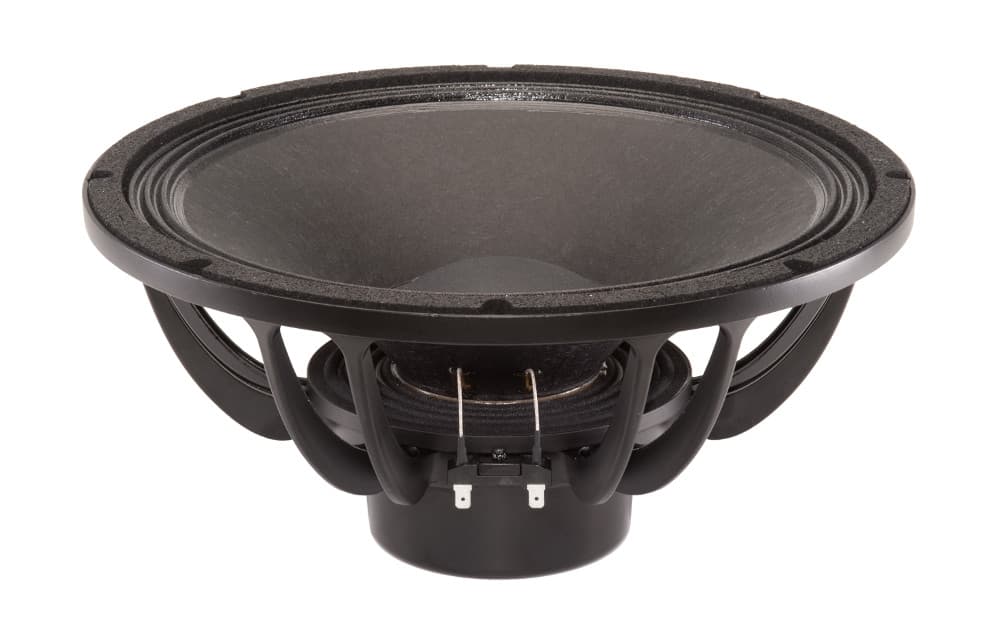

14NDL88
