12-inch LF driver · TIW series · 65 mm voice coil · 300 W
Visaton TIW 300 8Ω
8 Ω
£411.54
SteadyImpact Audio · In stock · All 4 offers
- Fs
- 25Hz
- Xmax
- 7.5mm
- SPL
- 91dB
- Pe
- 300W
- BL
- 16.5T·m
- Vd
- 383cm³
- Qts
- 0.28
- Vas
- 160L

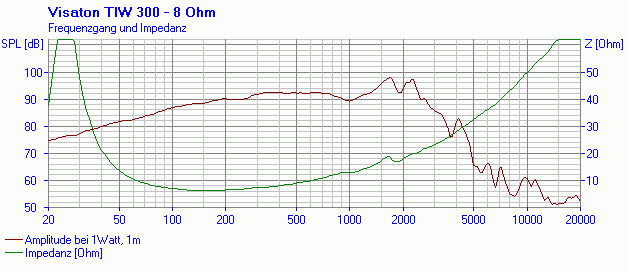

Published graphs
Visaton TIW 300 is a 12-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 25 Hz, Qts 0.28, Vas 160 L, Xmax 7.5 mm, sensitivity 91.2 dB, plus 383 cm³ Vd and 83 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £411.54.
The published T/S values agree with each other
Thiele/Small
- Fs
- 25Hz
- Qts
- 0.28
- Qes
- 0.30
- Qms
- 4.6
- Vas
- 160L
- Re
- 5.4Ω
- Le
- 1.70mH
Motor and cone
- BL
- 16.5T·m
- Sd
- 510cm²
- Mms
- 92g
- Xmax Derived
- 7.5mm
- Vd †
- 383cm³
- Voice coil
- 65mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 91.2dB
- Manufacturer sensitivity
- 90dB
- Power
- 300W
- Impedance
- 8Ω
- High limit
- 4000Hz
- EBP †
- 83 · Sealed or vented
Size and mounting
- Diameter
- 300mm
- Cutout
- 288mm
- Weight
- 7kg
Other published values
- Xmech
- 16
- Power Peak
- 600
Sensitivity shows 91.2 dB, calculated from the T/S values. Visaton publishes 90.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 12″
- BL
- 16.5T·m
- Fs
- 25Hz
- Le
- 1.70mH
- Re
- 5.4Ω
- Sd
- 510cm²
- Mms
- 92g
- Qes
- 0.30
- Qms
- 4.6
- Qts
- 0.28
- SPL
- 91.2dB
- Vas
- 160L
- Xmax
- 7.5mm
- Xmech
- 16
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 600
- Flux density
- 1.10T
- Sensitivity
- 90dB
- Calculated sensitivity †
- 91.2dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 65mm
- Weight
- 7kg
- Diameter
- 300mm
- Cutout
- 288mm
