Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespScanspeak 30W/4558T00 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverDiscovery series
Scanspeak

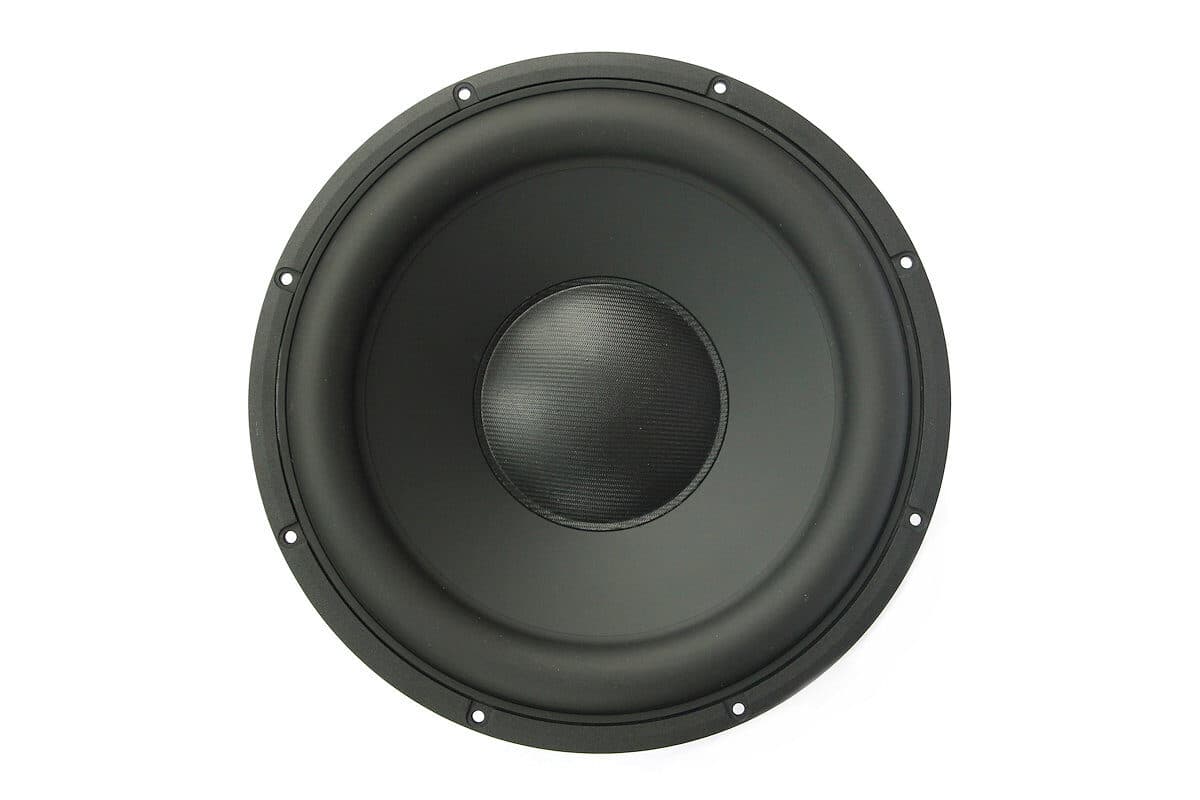

Scanspeak 30W/4558T00
Scanspeak 30W/4558T00 is a 12" 4 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 17Hz, Qts 0.32, Vas 197L, Xmax 12.5mm, sensitivity 86.6dB, plus 583cm³ Vd and 50 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £335.95.
Size
12"
Impedance
4Ω
RMS Power
150W
Sensitivity
86.6dB
89.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
50
Sealed alignment
Vd
583cm³
T/S Parameters
Valid
Fs17Hz
Qts0.32
Qes0.34
Qms5.0
Vas197.0L
Re2.6Ω
Le0.83mH
BL10.5Tm
Sd466cm²
Mms135g
Xmax12.5mm
SPL87dB
Power150W
Impedance4Ω
Min Impedance3.4Ω
Voice Coil51mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£300.67
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£335.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter300.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
30W/4558T00
12"
Best current price
£335.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity
43% cheaper£192.30
Eminence
LAB 12C
12"
Lower price
Xmax13mm+4%
Qts0.33+3%
BL13.4Tm+27%
Vas128.3L-35%
Qes0.340%
74%
Similarity
98% more£665.95
Scanspeak
28W/4878T00
12"
Higher price
Xmax14mm+12%
Qts0.3-6%
BL11.2Tm+7%
Vas127L-36%
Qes0.32-6%
82%
Similarity
99% more£667.95
Scanspeak
32W/4878T00
12"
Higher price
Xmax14mm+12%
Qts0.320%
BL12.5Tm+19%
Vas204L+4%
Qes0.33-3%
78%
Similarity
Acoustic Elegance
TD12S-4
12"
Xmax14mm+12%
Qts0.34+6%
BL10.8Tm+3%
Vas160L-19%
Qes0.38+12%
74%
Similarity
Acoustic Elegance
TD12X-4
12"
Xmax14mm+12%
Qts0.28-12%
BL10.1Tm-4%
Vas160L-19%
Qes0.31-9%
67%
Similarity
Acoustic Elegance
TD12S-8
12"
Xmax14mm+12%
Qts0.34+6%
BL13.3Tm+27%
Vas160L-19%
Qes0.38+12%
44%
Similarity
Celestion
FTR12-4075F
12"
Xmax9mm-28%
Qts0.27-15%
BL12.6Tm+20%
Vas89.2L-55%
Qes0.29-14%
33%
Similarity
Dayton Audio
RSS315HF-4
12"
Xmax14.3mm+14%
Qts0.39+22%
BL14Tm+33%
Vas84.1L-57%
Qes0.45+32%
