Overview
LF DriverTF series
Monacor
Monacor TF1225E/8
Monacor TF1225E/8 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 53Hz, Qts 0.33, Vas 67L, Xmax 5mm, sensitivity 96.3dB, plus 295cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
96.3dB
EBP
143
Vented alignment
Vd
295cm³
T/S Parameters
Valid
Fs53Hz
Qts0.33
Qes0.37
Qms3.5
Vas67.0L
Re6.4Ω
Le1.32mH
BL17.7Tm
Sd591cm²
Mms54g
Xmax5.0mm
SPL96dB
Power300W
Impedance8Ω
F Low5Hz
F High3000Hz
Voice Coil64mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.4kg
Diameter309.0mm
Overall Depth139.0mm
Cutout Diameter283.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
TF1225E/8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
97%
Similarity
£99.00
Celestion
TF1225E
12"
Xmax5.3mm+5%
Qts0.330%
BL17.7Tm0%
Vas67.7L+1%
Qes0.370%
93%
Similarity
P.Audio
12BMA-500B
12"
Xmax5mm0%
Qts0.34+2%
BL16.7Tm-5%
Vas61.4L-8%
Qes0.36-2%
91%
Similarity
£75.52
Lavoce
WSF122.50
12"
Xmax4.7mm-6%
Qts0.33-1%
BL17.2Tm-3%
Vas70.2L+5%
Qes0.35-5%
91%
Similarity
Monacor
SP-12A/302PA
12"
Xmax5mm0%
Qts0.34+2%
BL17Tm-4%
Vas77L+15%
Qes0.35-5%
90%
Similarity
Oberton
12HCX
12"
Xmax5.3mm+5%
Qts0.330%
BL17.8Tm+1%
Vas55.5L-17%
Qes0.35-4%
90%
Similarity

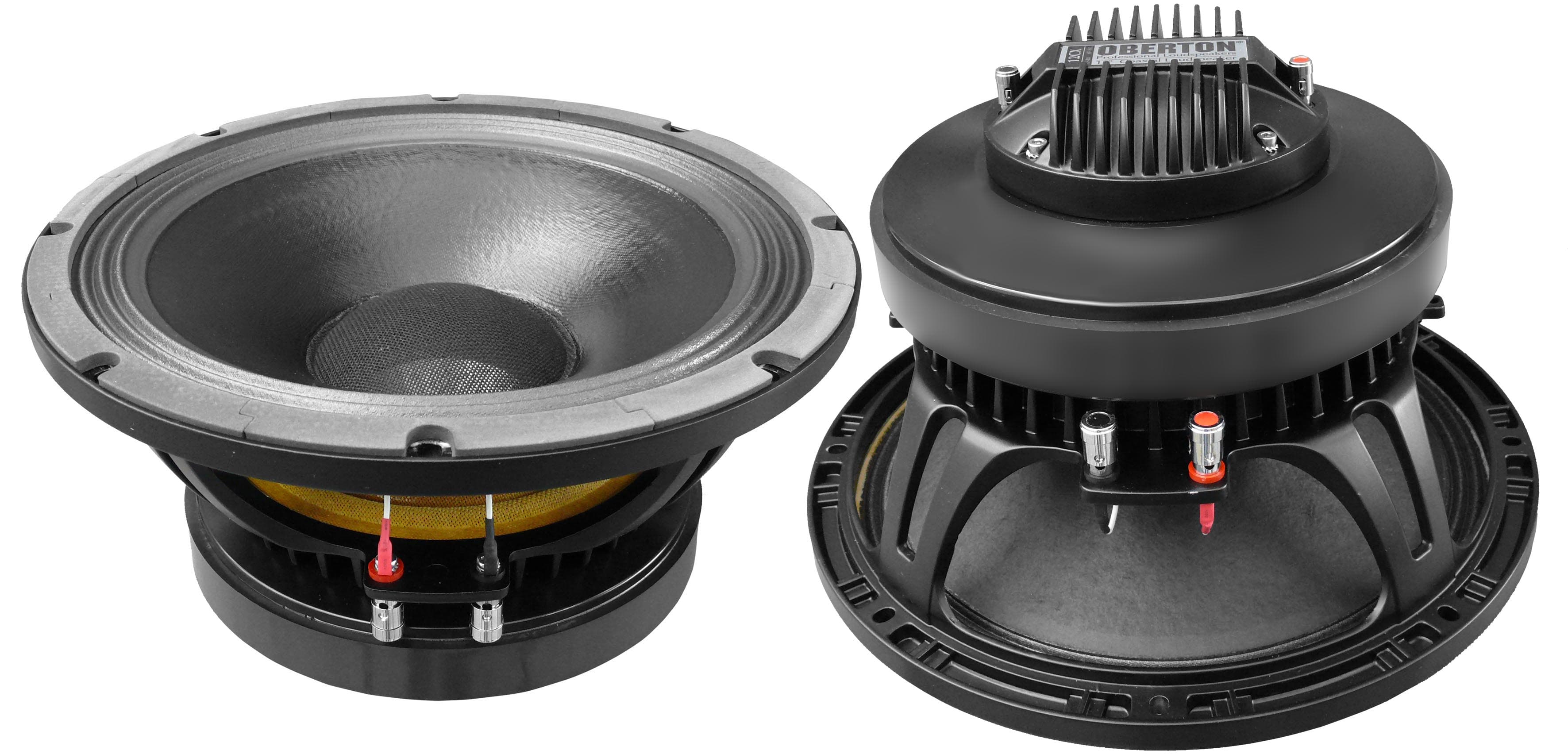

Oberton
