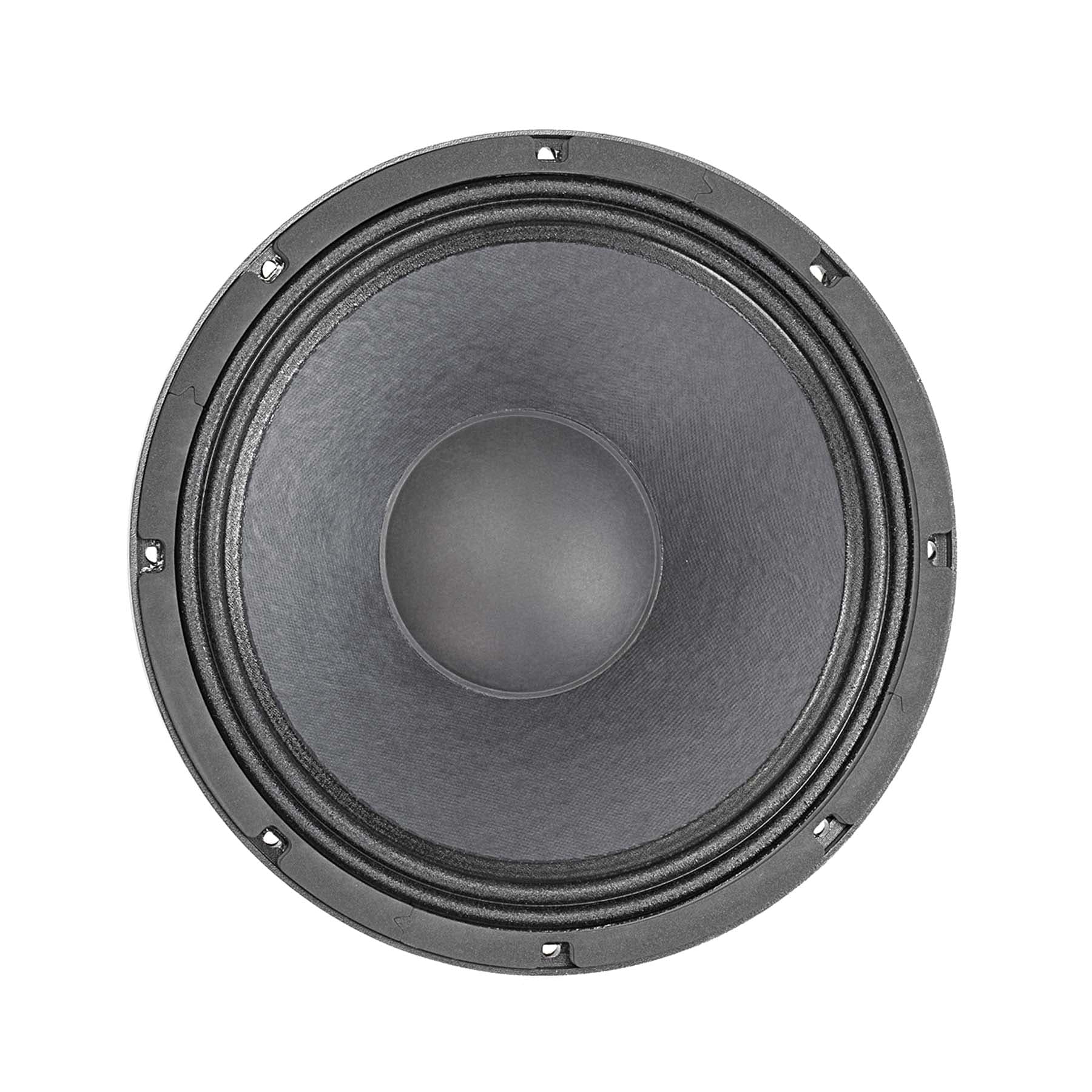

12-inch LF driver · DELTA PRO series · 400 W
Eminence DELTA PRO 8Ω
8 Ω · 52–4000 Hz
£119.47
15%Blue Aran · 1 in stock · All 5 offers
- Fs
- 51Hz
- Xmax
- 4.6mm
- SPL
- 97dB
- Pe
- 400W
- BL
- 15.3T·m
- Vd
- 245cm³
- Qts
- 0.35
- Vas
- 82L
Eminence DELTA PRO is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 51 Hz, Qts 0.35, Vas 81.7 L, Xmax 4.6 mm, sensitivity 96.7 dB, plus 245 cm³ Vd and 138 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £119.47.
The published T/S values agree with each other
Thiele/Small
- Fs
- 51Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 7.6
- Vas
- 81.7L
- Re
- 5.7Ω
- Le
- 0.84mH
Motor and cone
- BL
- 15.3T·m
- Sd
- 532cm²
- Mms
- 48g
- Xmax
- 4.6mm
- Vd †
- 245cm³
Power and response
- Sensitivity †
- 96.7dB
- Manufacturer sensitivity
- 99.2dB
- Power
- 400W
- Impedance
- 8Ω
- Range
- 52–4000Hz
- EBP †
- 138 · Leans vented
Size and mounting
- Diameter
- 314.5mm
- Cutout
- 281.2mm
- Bolt circle
- 296.9mm
- Depth
- 158.0mm
- Weight
- 7.4kg
Other published values
- Cms
- 0.21mm/N
- Xmech
- 13.7
- Power Program
- 800
Sensitivity shows 96.7 dB, calculated from the T/S values. Eminence publishes 99.2 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 15.3T·m
- Fs
- 51Hz
- Le
- 0.84mH
- Re
- 5.7Ω
- Sd
- 532cm²
- Cms
- 0.21mm/N
- Mms
- 48g
- Qes
- 0.37
- Qms
- 7.6
- Qts
- 0.35
- SPL
- 99.2dB
- Vas
- 81.7L
- Xmax
- 4.6mm
- Xmech
- 13.7
- Power
- 400W
- Impedance
- 8Ω
- Low limit
- 52Hz
- Power Program
- 800
- High limit
- 4000Hz
- Weight
- 7.4kg
- Diameter
- 314.5mm
- Depth
- 158.0mm
- Cutout
- 281.2mm
- Bolt circle
- 296.9mm
