Visaton MR 130 8Ω
8 Ω · 400–13000 Hz
No current price
- Fs
- 500Hz
- Xmax
- 2mm
- SPL
- 85dB
- Pe
- 80W
- BL
- 4.3T·m
- Vd
- 14cm³
- Qts
- 3.49
- Vas
- 0.1L

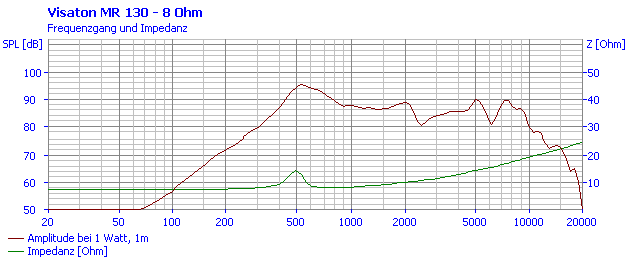

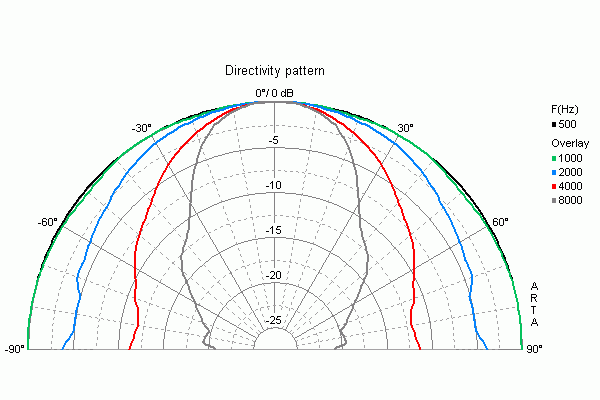

Published graphs
Visaton MR 130 is a 5-inch 8 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 500 Hz, Qts 3.49, Vas 0.1 L, Xmax 2 mm, sensitivity 85.3 dB, plus 14 cm³ Vd and 85 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 500Hz
- Qts
- 3.49
- Qes
- 5.85
- Qms
- 8.7
- Vas
- 0.1L
- Re
- 6.8Ω
- Le
- 0.40mH
Motor and cone
- BL
- 4.3T·m
- Sd
- 70cm²
- Mms
- 5g
- Xmax Derived
- 2mm
- Vd †
- 14cm³
- Voice coil
- 25mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 85.3dB
- Manufacturer sensitivity
- 89dB
- Power
- 80W
- Impedance
- 8Ω
- Range
- 400–13000Hz
- EBP †
- 85 · Sealed or vented
Size and mounting
- Diameter
- 130mm
- Cutout
- 110mm
- Weight
- 0.55kg
Other published values
- Xmech
- 2
- Power Peak
- 100
Sensitivity shows 85.3 dB, calculated from the T/S values. Visaton publishes 89.0 dB, 3.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
MF · Primary · 5″
- BL
- 4.3T·m
- Fs
- 500Hz
- Le
- 0.40mH
- Re
- 6.8Ω
- Sd
- 70cm²
- Mms
- 5g
- Qes
- 5.85
- Qms
- 8.7
- Qts
- 3.49
- SPL
- 85.3dB
- Vas
- 0.1L
- Xmax
- 2mm
- Xmech
- 2
- Power
- 80W
- Impedance
- 8Ω
- Power Peak
- 100
- Flux density
- 0.90T
- Sensitivity
- 89dB
- Low limit
- 400Hz
- Calculated sensitivity †
- 85.3dB
- High limit
- 13000Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 25mm
- Weight
- 0.55kg
- Diameter
- 130mm
- Cutout
- 110mm
