18-inch LF driver · 18RS series · 116 mm voice coil · 2,000 W
B&C 18RS115 4Ω
4 Ω · 29–1000 Hz
No current price
- Fs
- 29Hz
- Xmax
- 23.3mm
- SPL
- 95dB
- Pe
- 2000W
- BL
- 35.3T·m
- Vd
- 2819cm³
- Qts
- 0.18
- Vas
- 143L

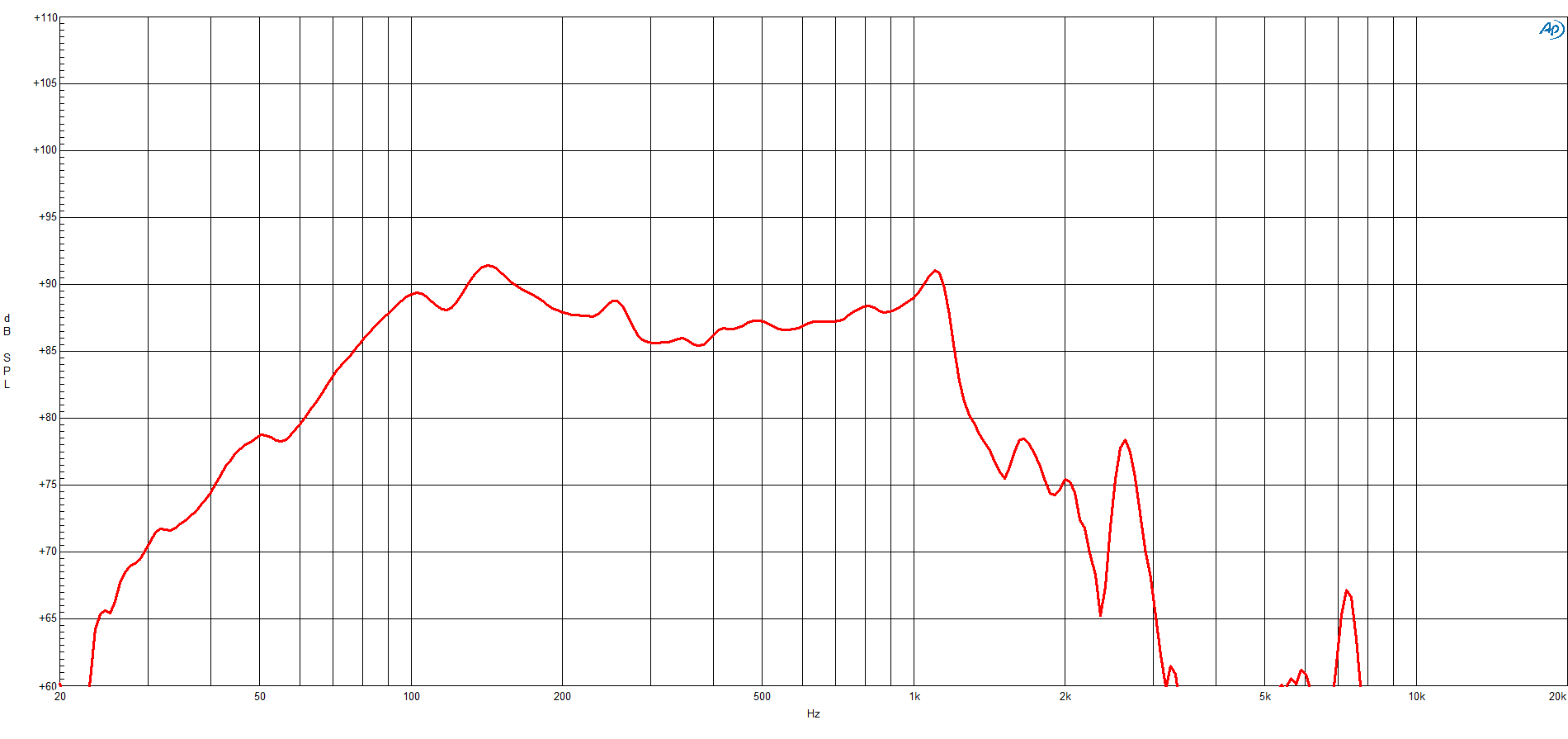

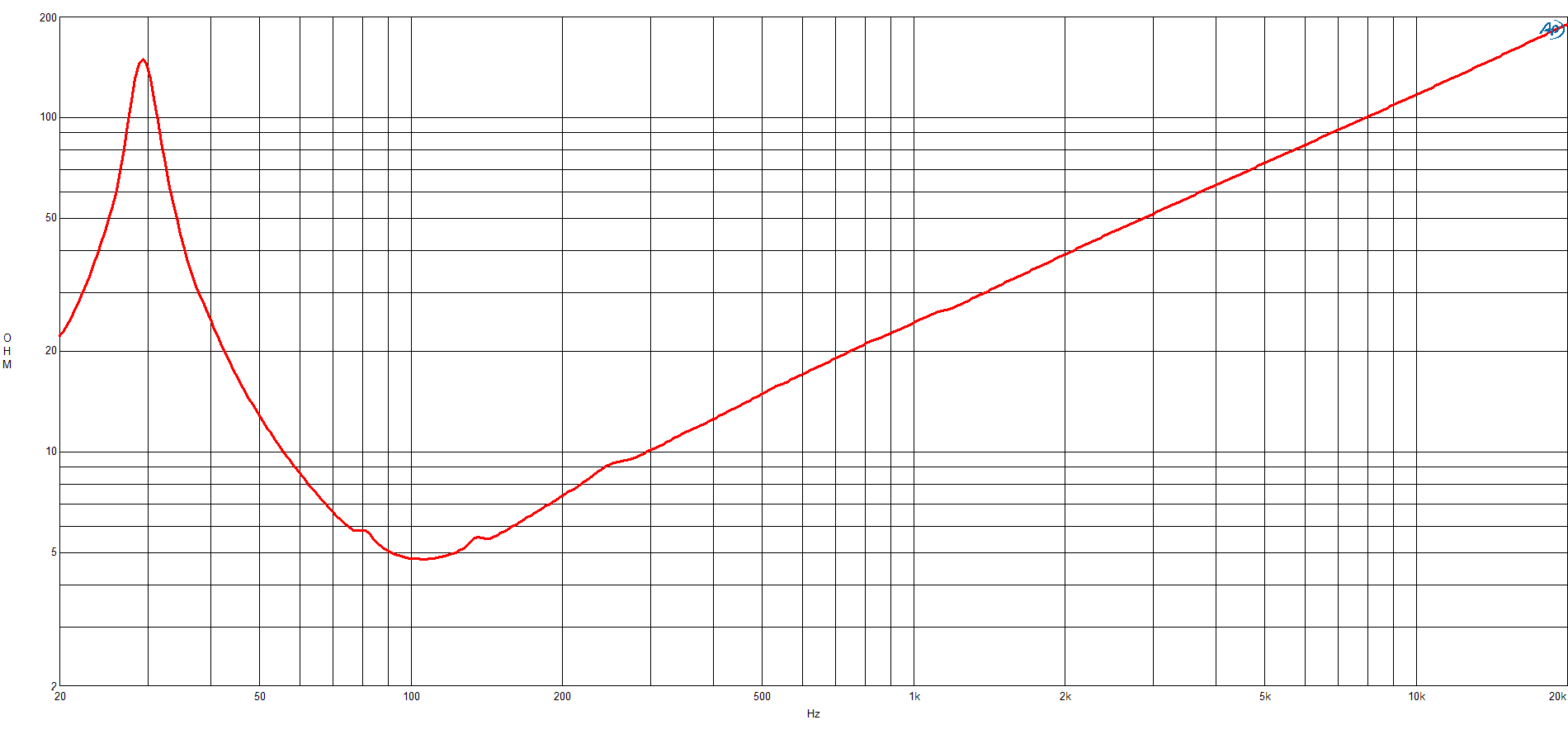

Published graphs
B&C 18RS115 is an 18-inch 4 ohm LF driver rated at 2000 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.18, Vas 143 L, Xmax 23.3 mm, sensitivity 94.7 dB, plus 2819 cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.18
- Qes
- 0.19
- Qms
- 9
- Vas
- 143L
- Re
- 3Ω
- Le
- 3.30mH
Motor and cone
- BL
- 35.3T·m
- Sd
- 1210cm²
- Mms
- 422g
- Xmax
- 23.3mm
- Vd †
- 2819cm³
- Voice coil
- 116mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 94.7dB
- Manufacturer sensitivity
- 96dB
- Power
- 2000W
- Nominal power
- 2000W
- Impedance
- 4Ω
- Min. impedance
- 4.5Ω
- Range
- 29–1000Hz
- EBP †
- 153 · Leans vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 425mm
- Bolt circle
- 443mm
- Depth
- 261mm
- Weight
- 15.4kg
Sensitivity shows 94.7 dB, calculated from the T/S values. B&C publishes 96.0 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 35.3T·m
- Fs
- 29Hz
- Le
- 3.30mH
- Re
- 3Ω
- Sd
- 1210cm²
- Mms
- 422g
- Qes
- 0.19
- Qms
- 9
- Qts
- 0.18
- SPL
- 94.7dB
- Vas
- 143L
- Xmax
- 23.3mm
- Power
- 2000W
- Impedance
- 4Ω
- Flux density
- 0.90T
- Sensitivity
- 96dB
- Low limit
- 29Hz
- Nominal power
- 2000W
- Calculated sensitivity †
- 94.7dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 4.5Ω
- Voice coil
- 116mm
- Weight
- 15.4kg
- Diameter
- 460mm
- Depth
- 261mm
- Cutout
- 425mm
- Bolt circle
- 443mm
- Bl
- 35.3 Tm
- Fs
- 29 Hz
- Le
- 3.3 mH
- Re
- 3 Ω
- Sd
- 1210 cm² (187.55 in²)
- Ebp
- 153 Hz
- Mms
- 422 g
- Qes
- 0.19
- Qms
- 9
- Qts
- 0.18
- Vas
- 143 dm³ (5.05 ft³)
- Η0
- 1.92 %
- Xmax
- 23.3 mm
- Xvar
- 22 mm
- Depth
- 261 mm (10.28 in)
- Spider
- Double Silicone
- Cone shape
- Straight
- Net weight
- 15.4 kg (33.95 lb)
- Pole design
- T-Pole
- Sensitivity
- 96 dB
- Flux density
- 0.9 T
- Winding depth
- 53.5 mm (2.11 in)
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 29 Hz - 1000 Hz
- Magnet material
- Neodymium Inside Slug
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18 in)
- Winding material
- Aluminium
- Minimum impedance
- 4.5 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 14 mm (0.55 in)
- Voice coil diameter
- 116 mm (4.5 in)
- Bolt circle diameter
- 443 mm (17.44 in)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 425 mm (16.73 in)
- Nominal power handling
- 2000 W
- Continuous power handling
- 4000 W
- Flange and gasket thickness
- 16 mm (0.63 in)
- Air volume occupied by driver
- 10 dm³ (0.35 ft³)
