Oberton 18NXB1200 8Ω
8 Ω · 35–1000 Hz
No current price
- Fs
- 36Hz
- Xmax
- 11.5mm
- SPL
- 96dB
- Pe
- 1200W
- BL
- 29.4T·m
- Vd
- 1332cm³
- Qts
- 0.28
- Vas
- 160L

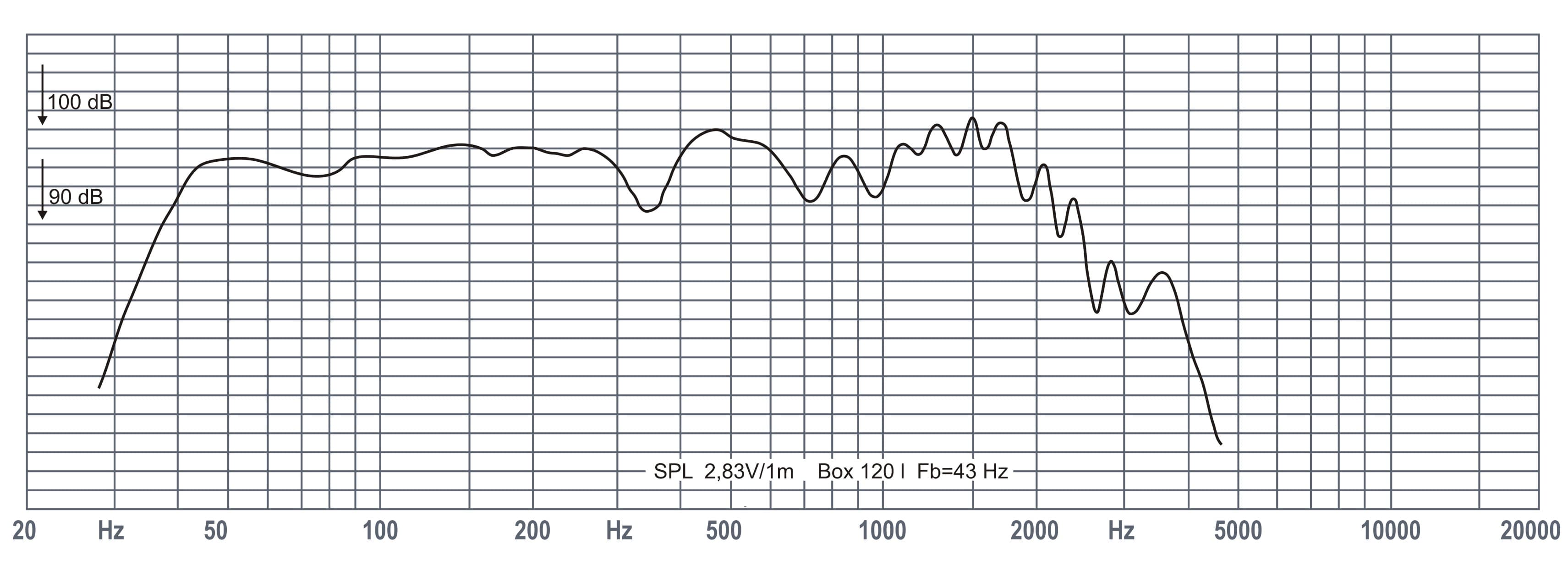

Published graphs
Oberton 18NXB1200 is an 18-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.28, Vas 159.6 L, Xmax 11.5 mm, sensitivity 96 dB, plus 1332 cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 9.2
- Vas
- 159.6L
- Re
- 5.3Ω
- Le
- 1.29mH
Motor and cone
- BL
- 29.4T·m
- Sd
- 1158cm²
- Mms
- 213g
- Xmax
- 11.5mm
- Vd †
- 1332cm³
- Voice coil
- 100mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 50dB
- Power
- 1200W
- Impedance
- 8Ω
- Min. impedance
- 6.9Ω
- Range
- 35–1000Hz
- EBP †
- 123 · Leans vented

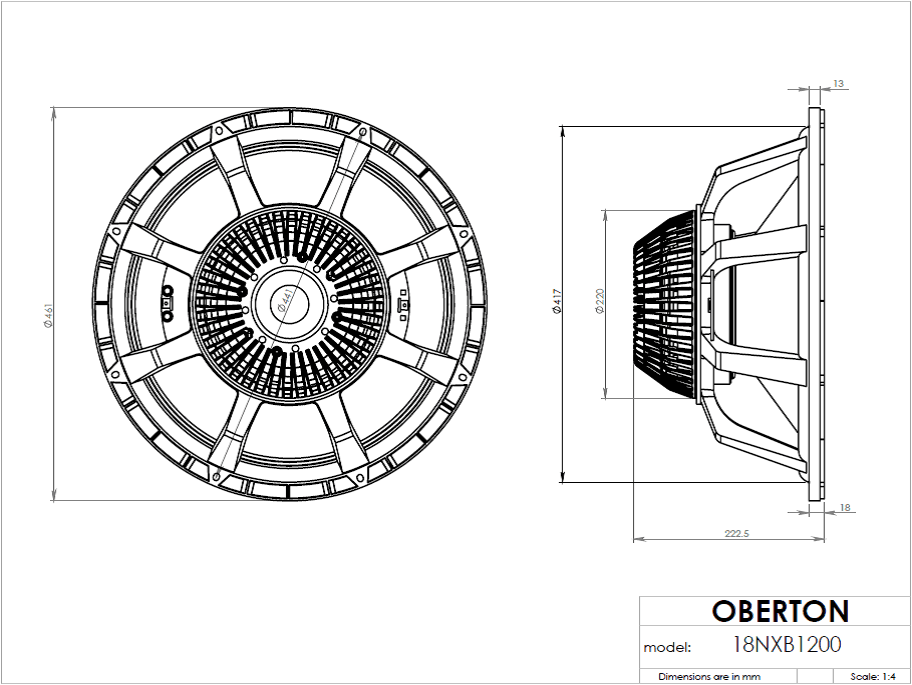

Size and mounting
- Diameter
- 461mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 222.5mm
- Weight
- 8.9kg
Other published values
- Cms
- 0.09mm/N
- Power Program
- 2400
Sensitivity shows 96.0 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 46.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 18″
- BL
- 29.4T·m
- Fs
- 36Hz
- Le
- 1.29mH
- Re
- 5.3Ω
- Sd
- 1158cm²
- Cms
- 0.09mm/N
- Mms
- 213g
- Qes
- 0.29
- Qms
- 9.2
- Qts
- 0.28
- SPL
- 96dB
- Vas
- 159.6L
- Xmax
- 11.5mm
- Power
- 1200W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 50dB
- Low limit
- 35Hz
- Power Program
- 2400
- Calculated sensitivity †
- 96dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 50dB
- Min. impedance
- 6.9Ω
- Voice coil
- 100mm
- Weight
- 8.9kg
- Diameter
- 461mm
- Depth
- 222.5mm
- Cutout
- 417mm
- Bolt circle
- 441mm
