LF Driver18XB series
Oberton
Oberton 18XB1201
Oberton 18XB1201 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 38Hz, Qts 0.32, Vas 159.4L, Xmax 10.5mm, sensitivity 96.3dB, plus 1216cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.3dB
50.0dBmanufacturer; using T/S-derived value (46.3dB delta).
EBP
115
Vented alignment
Vd
1216cm³
T/S Parameters
Valid
Fs38Hz
Qts0.32
Qes0.33
Qms6.9
Vas159.4L
Re5.3Ω
Le1.22mH
BL26.7Tm
Sd1158cm²
Mms189g
Xmax10.5mm
SPL96dB
Power1200W
Impedance8Ω
Min Impedance6.5Ω
F Low35Hz
F High1000Hz
Voice Coil100mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

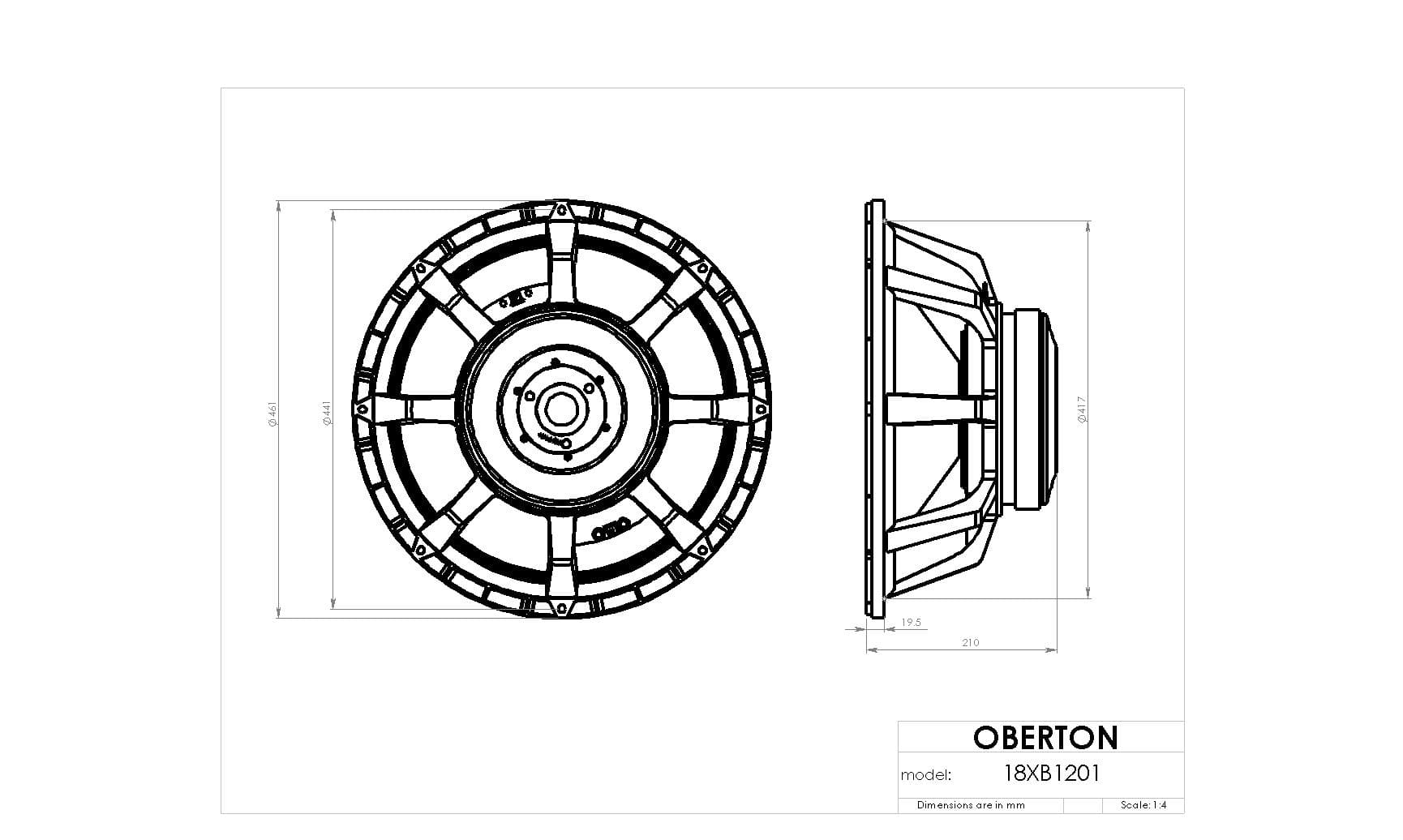

Dimensions & Physical
Weight15.9kg
Diameter461.0mm
Overall Depth210.0mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
