Overview
LF Driver18NXB series
Oberton
Oberton 18NXB1601
Oberton 18NXB1601 is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 35Hz, Qts 0.29, Vas 146.2L, Xmax 12.5mm, sensitivity 95.1dB, plus 1448cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
95.1dB
EBP
115
Vented alignment
Vd
1448cm³
T/S Parameters
Valid
Fs35Hz
Qts0.29
Qes0.30
Qms5.8
Vas146.2L
Re5.2Ω
Le1.20mH
BL30.5Tm
Sd1158cm²
Mms249g
Xmax12.5mm
SPL95dB
Power1600W
Impedance8Ω
Min Impedance6.9Ω
F Low30Hz
F High250Hz
Voice Coil115mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

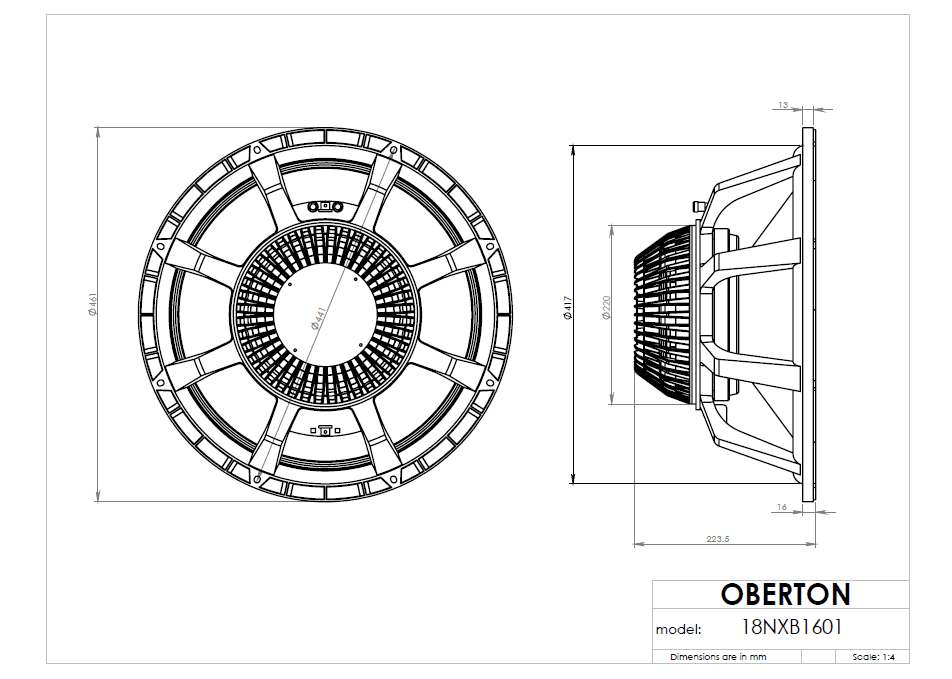

Dimensions & Physical
Weight11.7kg
Diameter461.0mm
Overall Depth224.0mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
