Overview
LF Driver18NXB series
Oberton
Oberton 18NXB700
Oberton 18NXB700 is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 36Hz, Qts 0.31, Vas 155.5L, Xmax 9mm, sensitivity 95.6dB, plus 999cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.6dB
50.0dBmanufacturer; using T/S-derived value (45.6dB delta).
EBP
112
Vented alignment
Vd
999cm³
T/S Parameters
Valid
Fs36Hz
Qts0.31
Qes0.33
Qms7.9
Vas155.5L
Re5.2Ω
Le1.97mH
BL27.8Tm
Sd1110cm²
Mms214g
Xmax9.0mm
SPL96dB
Power1000W
Impedance8Ω
Min Impedance7.0Ω
F Low36Hz
F High1000Hz
Voice Coil100mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

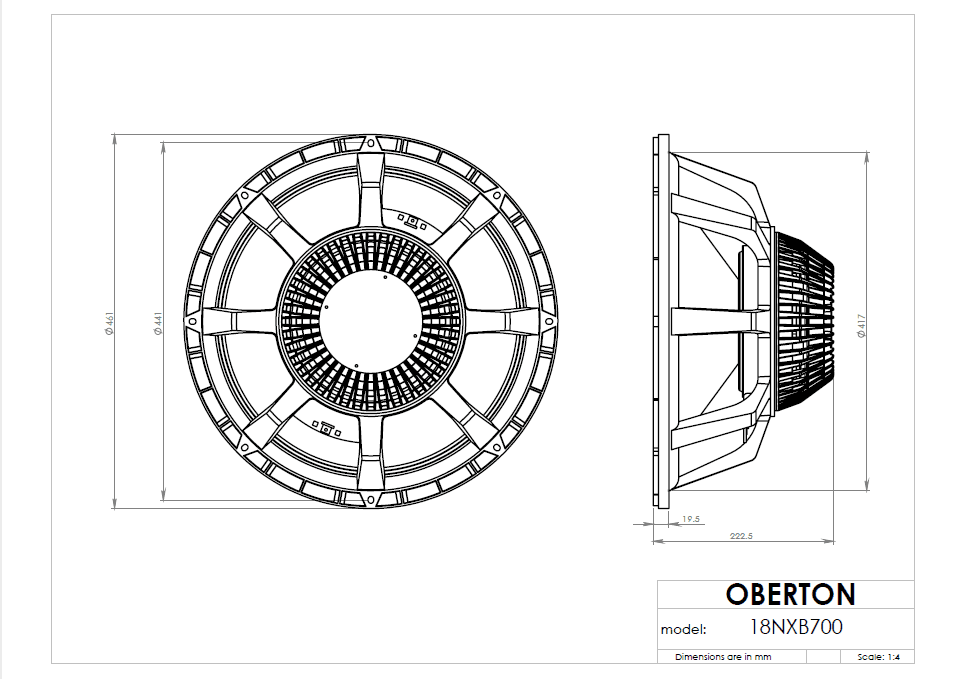

Dimensions & Physical
Weight8.9kg
Diameter461.0mm
Overall Depth222.5mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
