Oberton 18XB700 8Ω
8 Ω · 35–1000 Hz
No current price
- Fs
- 36Hz
- Xmax
- 9mm
- SPL
- 96dB
- Pe
- 1000W
- BL
- 26.1T·m
- Vd
- 999cm³
- Qts
- 0.30
- Vas
- 183L

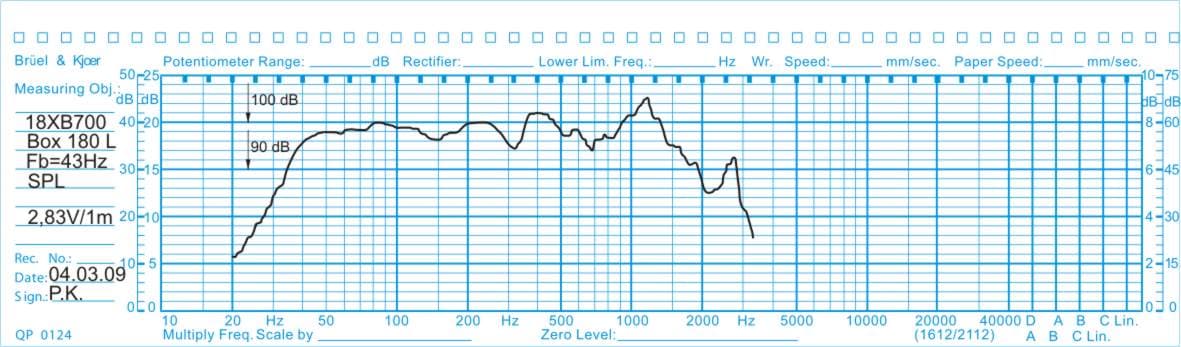

Published graphs
Oberton 18XB700 is an 18-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.30, Vas 183.2 L, Xmax 9 mm, sensitivity 96.4 dB, plus 999 cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 9.3
- Vas
- 183.2L
- Re
- 5.2Ω
- Le
- 1.83mH
Motor and cone
- BL
- 26.1T·m
- Sd
- 1110cm²
- Mms
- 183g
- Xmax
- 9mm
- Vd †
- 999cm³
- Voice coil
- 100mm
- Flux density
- 0.97T
Power and response
- Sensitivity †
- 96.4dB
- Manufacturer sensitivity
- 50dB
- Power
- 1000W
- Impedance
- 8Ω
- Min. impedance
- 7Ω
- Range
- 35–1000Hz
- EBP †
- 115 · Leans vented

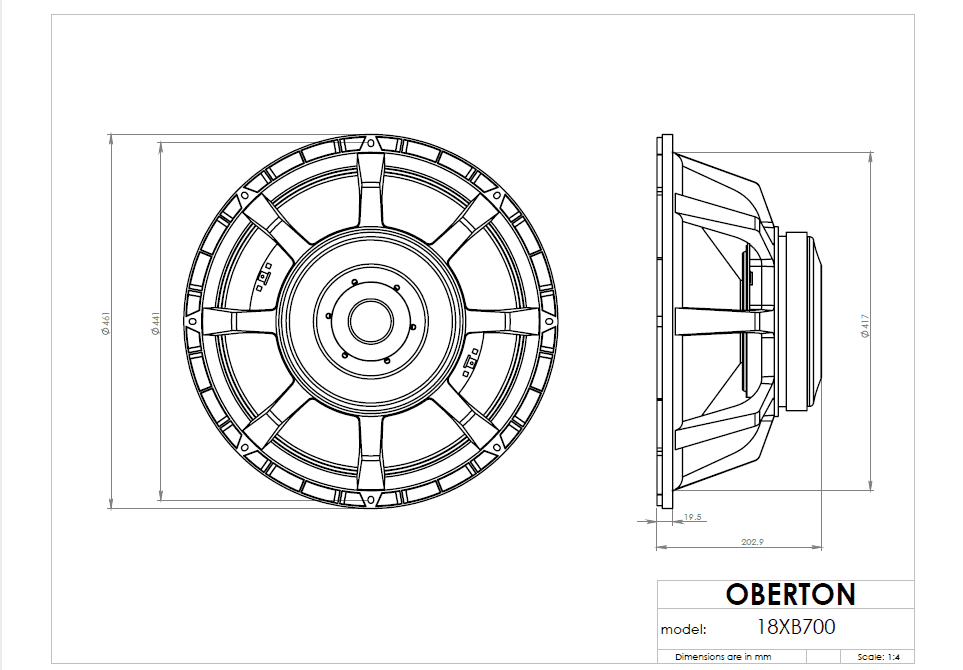

Size and mounting
- Diameter
- 461mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 203mm
- Weight
- 12.6kg
Other published values
- Cms
- 0.11mm/N
- Power Program
- 2000
Sensitivity shows 96.4 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 46.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 18″
- BL
- 26.1T·m
- Fs
- 36Hz
- Le
- 1.83mH
- Re
- 5.2Ω
- Sd
- 1110cm²
- Cms
- 0.11mm/N
- Mms
- 183g
- Qes
- 0.31
- Qms
- 9.3
- Qts
- 0.30
- SPL
- 96.4dB
- Vas
- 183.2L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 8Ω
- Flux density
- 0.97T
- Sensitivity
- 50dB
- Low limit
- 35Hz
- Power Program
- 2000
- Calculated sensitivity †
- 96.4dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 50dB
- Min. impedance
- 7Ω
- Voice coil
- 100mm
- Weight
- 12.6kg
- Diameter
- 461mm
- Depth
- 203mm
- Cutout
- 417mm
- Bolt circle
- 441mm
