- Net volume
- 150L
- Tuning
- 45Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

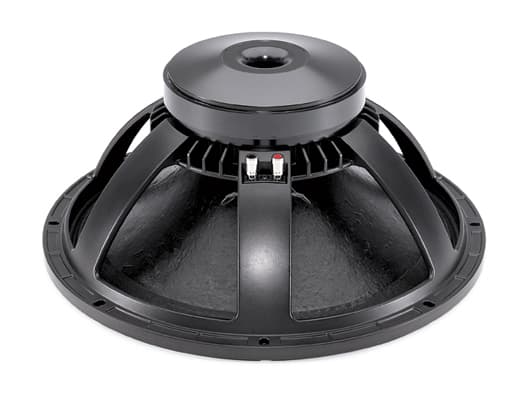

18-inch LF driver · 18PS series · 76 mm voice coil · 600 W
B&C 18PS76 8Ω
8 Ω · 40–2000 Hz
£211.30
SteadyJP Leisure · In stock · All 6 offers
- Fs
- 39Hz
- Xmax
- 7mm
- SPL
- 98dB
- Pe
- 600W
- BL
- 25.8T·m
- Vd
- 847cm³
- Qts
- 0.27
- Vas
- 207L

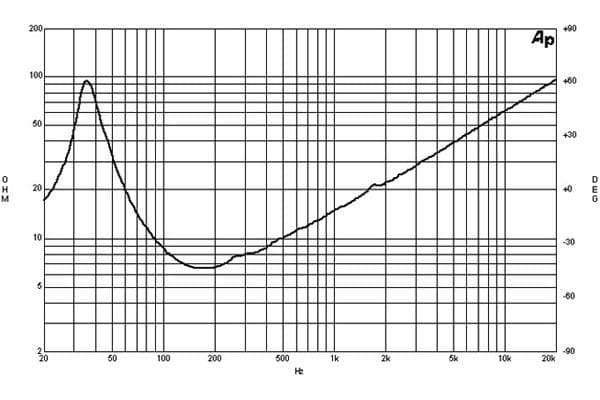

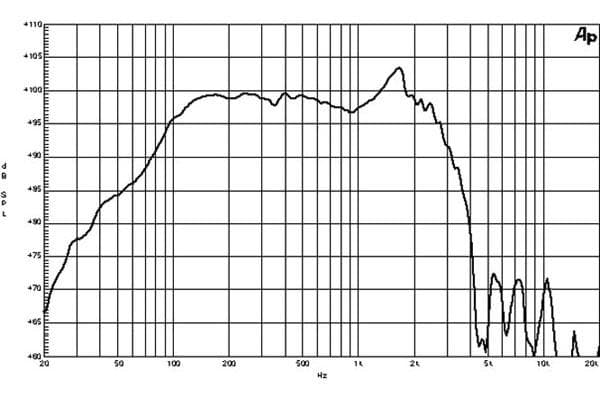

Published graphs
B&C 18PS76 is an 18-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.27, Vas 207 L, Xmax 7 mm, sensitivity 98.3 dB, plus 847 cm³ Vd and 134 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £164.53.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.27
- Qes
- 0.29
- Qms
- 6.1
- Vas
- 207L
- Re
- 5Ω
- Le
- 1.90mH
Motor and cone
- BL
- 25.8T·m
- Sd
- 1210cm²
- Mms
- 149g
- Xmax
- 7mm
- Vd †
- 847cm³
- Voice coil
- 76mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 98.3dB
- Manufacturer sensitivity
- 99dB
- Power
- 600W
- Nominal power
- 600W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 40–2000Hz
- EBP †
- 134 · Leans vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 202mm
- Weight
- 10.8kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 25.8T·m
- Fs
- 39Hz
- Le
- 1.90mH
- Re
- 5Ω
- Sd
- 1210cm²
- Mms
- 149g
- Qes
- 0.29
- Qms
- 6.1
- Qts
- 0.27
- SPL
- 98.3dB
- Vas
- 207L
- Xmax
- 7mm
- Power
- 600W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 99dB
- Low limit
- 40Hz
- Nominal power
- 600W
- Calculated sensitivity †
- 98.3dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 99dB
- Min. impedance
- 6.5Ω
- Voice coil
- 76mm
- Weight
- 10.8kg
- Diameter
- 460mm
- Depth
- 202mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Bl
- 25.8 Tm
- Fs
- 39 Hz
- Le
- 1.9 mH
- Re
- 5 Ω
- Sd
- 1210 cm² (187.6 in²)
- Ebp
- 134 Hz
- Mms
- 149 g
- Qes
- 0.29
- Qms
- 6.1
- Qts
- 0.27
- Vas
- 207 dm³ (7.2 ft³)
- Η0
- 4 %
- Cone
- RCK18PS768
- Xmax
- 7 mm
- Xvar
- 8 mm
- Depth
- 202 mm (7.95 in)
- Spider
- Double Silicone
- Cone shape
- Exponential
- Net weight
- 10.8 kg (23.81 lb)
- Pole design
- Straight Pole
- Sensitivity
- 99 dB
- Flux density
- 1.25 T
- Shipping box
- 500x495x275 mm (19.69x19.49x10.83 in)
- Winding depth
- 24 mm (0.92 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 2000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 12.5 kg (27.56 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.4 in)
- Recommended tuning
- 45 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 440 mm (17.3 in)
- Recommended enclosure
- 150 dm³ (5.3 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 422 mm (16.6 in)
- Nominal power handling
- 600 W
- Continuous power handling
- 1200 W
- Flange and gasket thickness
- 16 mm (0.62 in)
- Air volume occupied by driver
- 9 dm³ (0.32 ft³)
B&C’s suggested box
From B&C’s 18PS76 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18PS76. Clear differences are green when better and red when worse.
