Overview
LF Driver
Eighteen Sound
Eighteen Sound 18W2001
Eighteen Sound 18W2001 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 37Hz, Qts 0.25, Vas 230L, Xmax 7mm, sensitivity 98.5dB, plus 794cm³ Vd and 142 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £243.89.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
98.5dB
EBP
142
Vented alignment
Vd
794cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response180 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

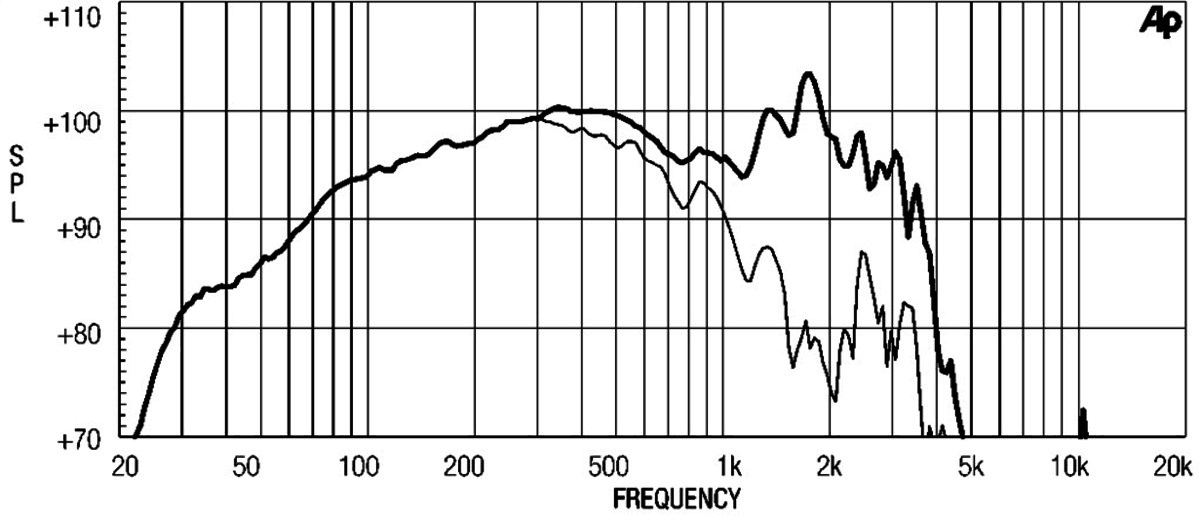

Frequency response
180 plotted pointsMedium confidence2,555 selected pixels of 2,555 - Trace datasheet-response-trace-poc/v1
impedance

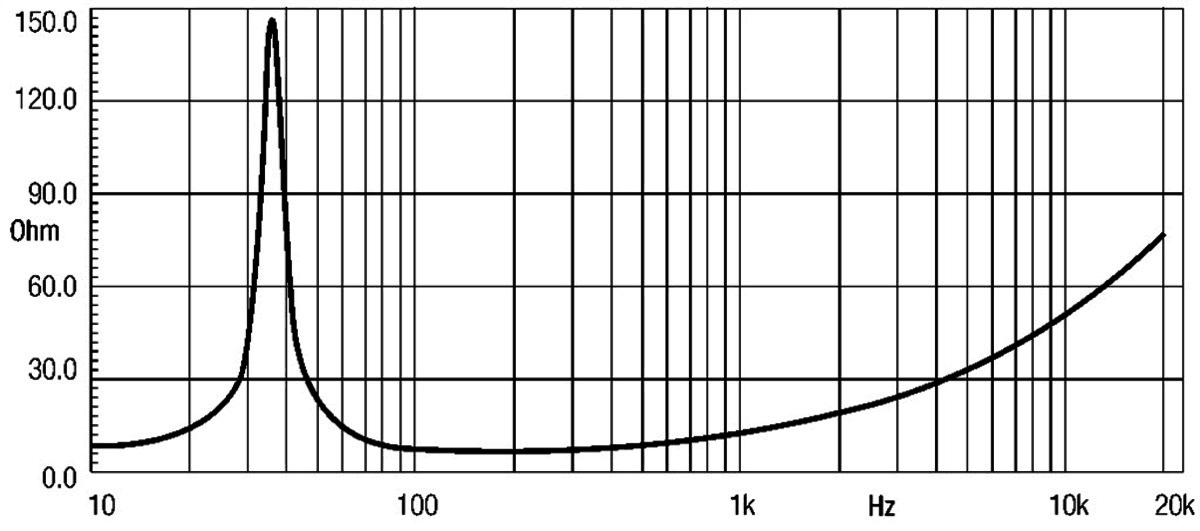

Impedance response
240 plotted pointsMedium confidence2,445 selected pixels of 2,625
T/S Parameters
Valid
Fs37Hz
Qts0.25
Qes0.26
Qms7.3
Vas230.0L
Re5.8Ω
Le1.90mH
BL27.1Tm
Sd1134cm²
Mms143g
Xmax7.0mm
SPL99dB
Power1200W
Power Nominal1200W
Impedance8Ω
F Low37Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£243.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.5kg
Diameter462.0mm
Overall Depth205.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter438.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
18W2001
18"
Best current price
£243.89
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
57%
Similarity
12% cheaper£215.75
RCF
LF18G401
18"
Lower price
Xmax9mm+29%
Qts0.29+16%
BL24.6Tm-9%
Vas268L+17%
Qes0.3+15%
78%
Similarity
2% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm+14%
Qts0.24-4%
BL26Tm-4%
Vas297L+29%
Qes0.25-4%
67%
Similarity
2% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm+14%
Qts0.28+12%
BL25Tm-8%
Vas164L-29%
Qes0.29+12%
44%
Similarity
2% cheaper£238.99
B&C
18TBX100
18"
Lower price
Xmax9mm+29%
Qts0.31+24%
BL22Tm-19%
Vas256L+11%
Qes0.33+27%
53%
Similarity
£245.00
RCF
L18P400
18"
Xmax9mm+29%
Qts0.28+12%
BL24.6Tm-9%
Vas340L+48%
Qes0.29+12%
65%
Similarity
3% more£250.53
Eighteen Sound
18LW1251
18"
Higher price
Xmax9mm+29%
Qts0.27+8%
BL23.6Tm-13%
Vas268L+17%
Qes0.28+8%
86%
Similarity
4% more£254.65
Eighteen Sound
18W1001
18"
Higher price
Xmax7mm0%
Qts0.23-8%
BL27.6Tm+2%
Vas268L+17%
Qes0.24-8%
52%
Similarity
11% more£270.47
Eighteen Sound
18LW1400
18"
Higher price
Xmax9mm+29%
Qts0.29+16%
BL24.7Tm-9%
Vas297L+29%
Qes0.31+19%
75%
Similarity
14% more£277.00
B&C
18NW100
18"
Higher price
Xmax9mm+29%
Qts0.26+4%
BL28Tm+3%
Vas252L+10%
Qes0.27+4%
68%
Similarity
14% more£277.00
B&C
18NW100
18"
Higher price
Xmax9mm+29%
Qts0.27+8%
BL24.7Tm-9%
Vas203.5L-12%
Qes0.28+8%
75%
Similarity
32% more£320.83
RCF
LF18N401
18"
Higher price
Xmax9mm+29%
Qts0.26+4%
BL27.8Tm+3%
Vas257L+12%
Qes0.27+4%
72%
Similarity
54% more£375.00
RCF
LF18N451
18"
Higher price
Xmax9mm+29%
Qts0.24-4%
BL30.2Tm+11%
Vas245L+7%
Qes0.25-4%
