Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF Driver18XB series
Oberton
Oberton 18XB1500v2
Oberton 18XB1500v2 is a 18" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 36Hz, Qts 0.23, Vas 192.5L, Xmax 11mm, sensitivity 97.9dB, plus 1274cm³ Vd and 156 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £299.00.
Size
18"
Impedance
8Ω
RMS Power
1500W
Sensitivity
97.9dB
EBP
156
Vented alignment
Vd
1274cm³
T/S Parameters
Valid
Fs36Hz
Qts0.23
Qes0.23
Qms10.5
Vas192.5L
Re5.3Ω
Le1.53mH
BL31.6Tm
Sd1158cm²
Mms212g
Xmax11.0mm
SPL98dB
Power1500W
Impedance8Ω
Min Impedance6.2Ω
F Low30Hz
F High1000Hz
Voice Coil115mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Best current price
£299.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

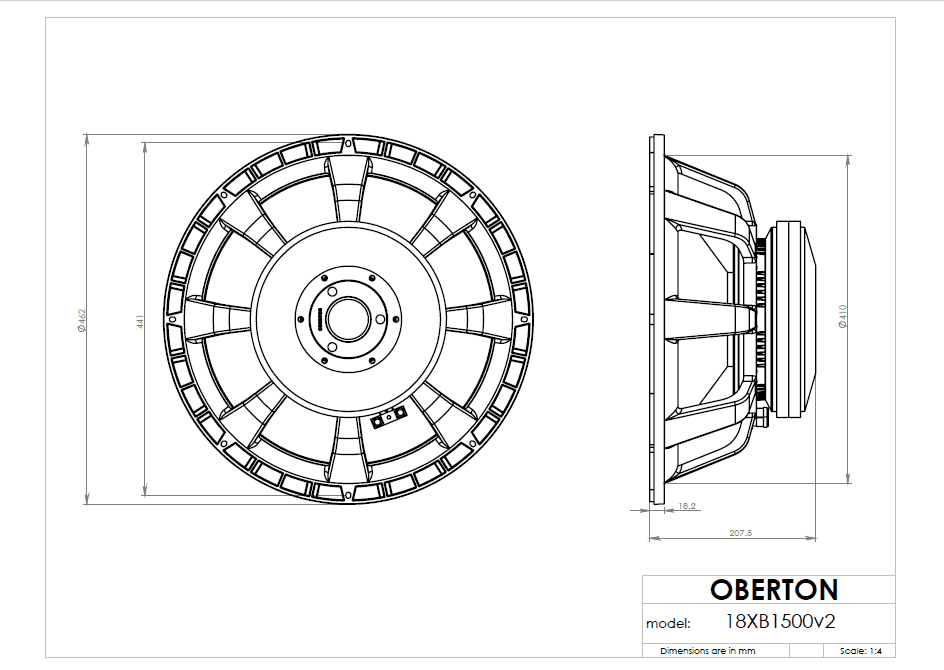

Dimensions & Physical
Weight18.2kg
Diameter462.0mm
Overall Depth207.5mm
Cutout Diameter410.0mm
Bolt Circle Diameter441.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
18XB1500v2
18"
Best current price
£299.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
53%
Similarity
20% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm-27%
Qts0.24+7%
BL26Tm-18%
Vas297L+54%
Qes0.25+9%
43%
Similarity
20% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm-27%
Qts0.28+24%
BL25Tm-21%
Vas164L-15%
Qes0.29+27%
44%
Similarity
16% cheaper£250.53
Eighteen Sound
18LW1251
18"
Lower price
Xmax9mm-18%
Qts0.27+20%
BL23.6Tm-25%
Vas268L+39%
Qes0.28+22%
63%
Similarity
8% cheaper£273.68
Beyma
18PW1400FE
18"
Lower price
Xmax10mm-9%
Qts0.27+20%
BL29Tm-8%
Vas228.9L+19%
Qes0.28+22%
58%
Similarity
7% cheaper£277.00
B&C
18NW100
18"
Lower price
Xmax9mm-18%
Qts0.26+16%
BL28Tm-11%
Vas252L+31%
Qes0.27+18%
55%
Similarity
7% cheaper£277.00
B&C
18NW100
18"
Lower price
Xmax9mm-18%
Qts0.27+20%
BL24.7Tm-22%
Vas203.5L+6%
Qes0.28+22%
65%
Similarity
2% cheaper£291.62
CIARE
NDH18-4S
18"
Lower price
Xmax11.5mm+5%
Qts0.25+11%
BL22.2Tm-30%
Vas240L+25%
Qes0.25+9%
79%
Similarity
£299.00
Beyma
18QLEX1600FE
18"
Xmax13mm+18%
Qts0.23+2%
BL36.4Tm+15%
Vas195L+1%
Qes0.24+5%
57%
Similarity
7% more£320.83
RCF
LF18N401
18"
Higher price
Xmax9mm-18%
Qts0.26+16%
BL27.8Tm-12%
Vas257L+34%
Qes0.27+18%
51%
Similarity
20% more£360.00
RCF
LF18X451
18"
Higher price
Xmax14mm+27%
Qts0.28+24%
BL30.5Tm-3%
Vas220L+14%
Qes0.29+27%
72%
Similarity
25% more£375.00
RCF
LF18N451
18"
Higher price
Xmax9mm-18%
Qts0.24+7%
BL30.2Tm-4%
Vas245L+27%
Qes0.25+9%
52%
Similarity
30% more£388.58
Oberton
18XB1600v2
18"
Higher price
Xmax12.5mm+14%
Qts0.28+24%
BL29.6Tm-6%
Vas267L+39%
Qes0.29+25%
