19-inch LF driver · 19RS series · 116 mm voice coil · 2,000 W
B&C 19RS115 4Ω
4 Ω · 30–1000 Hz
No current price
- Fs
- 30Hz
- Xmax
- 23.3mm
- SPL
- 96dB
- Pe
- 2000W
- BL
- 34.9T·m
- Vd
- 3379cm³
- Qts
- 0.20
- Vas
- 198L

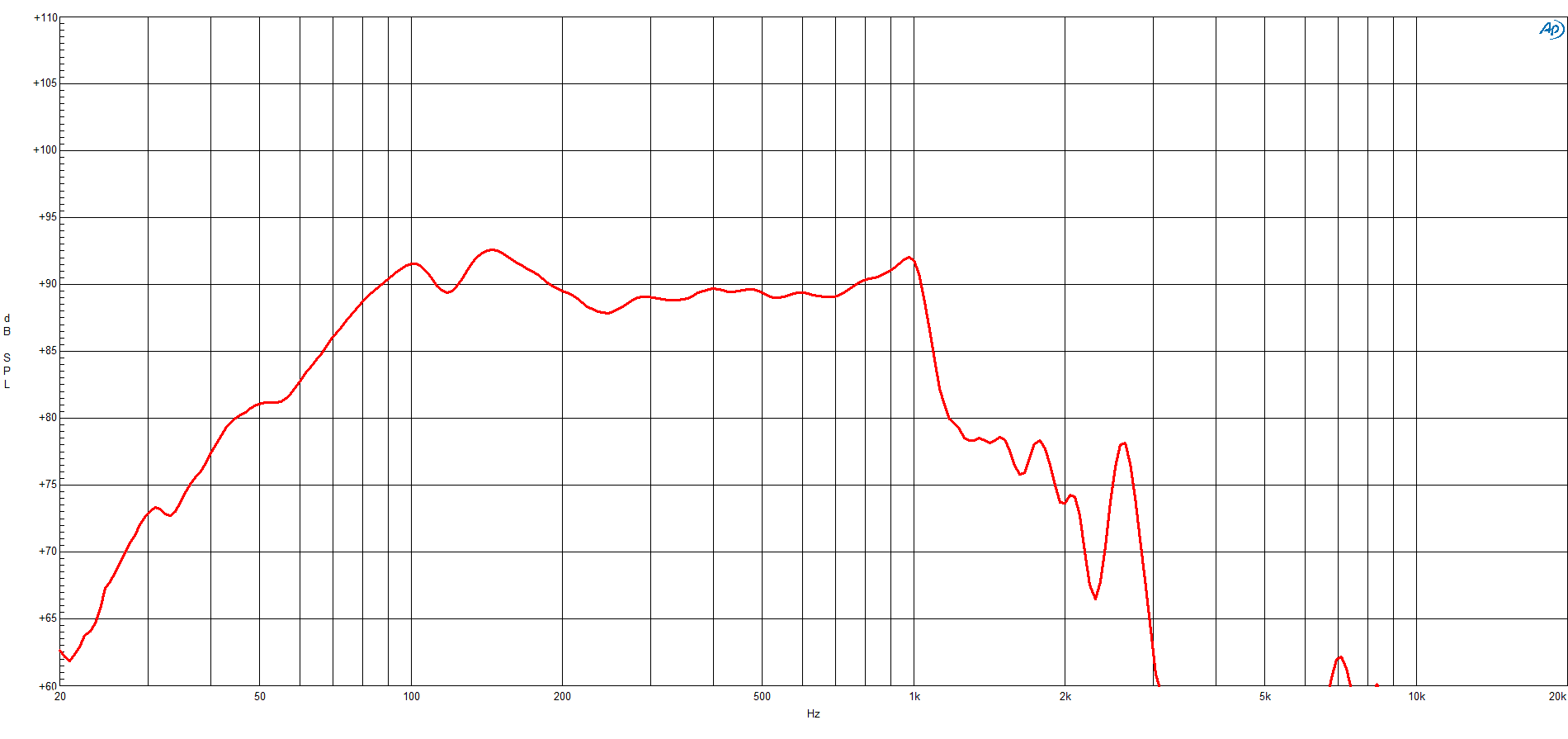

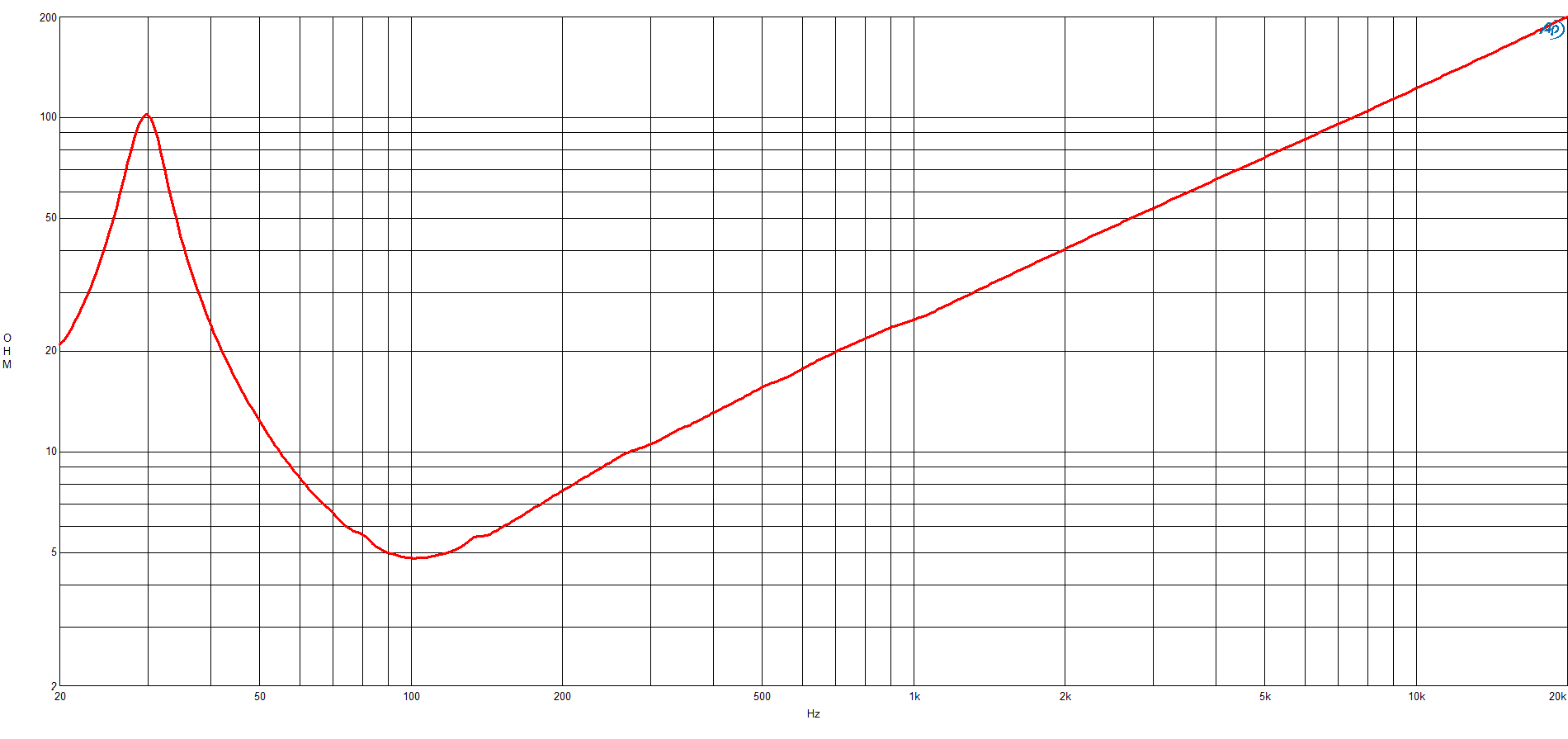

Published graphs
B&C 19RS115 is a 19-inch 4 ohm LF driver rated at 2000 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.20, Vas 198 L, Xmax 23.3 mm, sensitivity 96.1 dB, plus 3379 cm³ Vd and 143 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 30Hz
- Qts
- 0.20
- Qes
- 0.21
- Qms
- 7.1
- Vas
- 198L
- Re
- 3.1Ω
- Le
- 3.30mH
Motor and cone
- BL
- 34.9T·m
- Sd
- 1450cm²
- Mms
- 432g
- Xmax
- 23.3mm
- Vd †
- 3379cm³
- Voice coil
- 116mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 96.1dB
- Manufacturer sensitivity
- 96.9dB
- Power
- 2000W
- Nominal power
- 2000W
- Impedance
- 4Ω
- Min. impedance
- 4.6Ω
- Range
- 30–1000Hz
- EBP †
- 143 · Leans vented
Size and mounting
- Diameter
- 494mm
- Cutout
- 455mm
- Bolt circle
- 476mm
- Depth
- 285mm
- Weight
- 15.8kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 34.9T·m
- Fs
- 30Hz
- Le
- 3.30mH
- Re
- 3.1Ω
- Sd
- 1450cm²
- Mms
- 432g
- Qes
- 0.21
- Qms
- 7.1
- Qts
- 0.20
- SPL
- 96.1dB
- Vas
- 198L
- Xmax
- 23.3mm
- Power
- 2000W
- Impedance
- 4Ω
- Flux density
- 0.90T
- Sensitivity
- 96.9dB
- Low limit
- 30Hz
- Nominal power
- 2000W
- Calculated sensitivity †
- 96.1dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 96.9dB
- Min. impedance
- 4.6Ω
- Voice coil
- 116mm
- Weight
- 15.8kg
- Diameter
- 494mm
- Depth
- 285mm
- Cutout
- 455mm
- Bolt circle
- 476mm
- Bl
- 34.9 Tm
- Fs
- 30 Hz
- Le
- 3.3 mH
- Re
- 3.1 Ω
- Sd
- 1450 cm² (224.75 in²)
- Ebp
- 143 Hz
- Mms
- 432 g
- Qes
- 0.21
- Qms
- 7.1
- Qts
- 0.2
- Vas
- 198 dm³ (6.99 ft³)
- Η0
- 2.41 %
- Xmax
- 23.3 mm
- Xvar
- 18 mm
- Depth
- 285 mm (11.22 in)
- Spider
- Double Silicone
- Cone shape
- Straight
- Net weight
- 15.8 kg (34.83 lb)
- Pole design
- T-Pole
- Sensitivity
- 96.9 dB
- Flux density
- 0.9 T
- Winding depth
- 53.5 mm (2.11 in)
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 30 Hz - 1000 Hz
- Magnet material
- Neodymium Inside Slug
- Nominal diameter
- 483 mm (19 in)
- Overall diameter
- 494 mm (19.45 in)
- Winding material
- Aluminium
- Minimum impedance
- 4.6 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 14 mm (0.55 in)
- Voice coil diameter
- 116 mm (4.5 in)
- Bolt circle diameter
- 476 mm (18.74 in)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 455 mm (17.91 in)
- Nominal power handling
- 2000 W
- Continuous power handling
- 4000 W
- Flange and gasket thickness
- 13 mm (0.51 in)
