Overview
LF Driver
Dayton Audio
Dayton Audio SS18-22
Dayton Audio SS18-22 is a 18" 2 ohm LF driver rated at 1300W RMS. The validated T/S data includes Fs 21Hz, Qts 0.37, Vas 224L, Xmax 26mm, sensitivity 89dB, plus 3089cm³ Vd and 50 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
2Ω
RMS Power
1300W
Sensitivity
89.0dB
90.8dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
50
Either alignment
Vd
3089cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
on-axis240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence8,033 selected pixels of 8,033
T/S Parameters
Valid
Fs21Hz
Qts0.37
Qes0.42
Qms3.4
Vas224.0L
Re5.4Ω
Le2.10mH
BL29.2Tm
Sd1188cm²
Mms497g
Xmax26.0mm
SPL89dB
Power1300W
Impedance2Ω
F Low20Hz
F High400Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight20.4kg
Diameter470.0mm
Overall Depth259.5mm
Cutout Diameter426.7mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
SS18-22
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
£425.00
FaitalPRO
18XL1800
18"
Xmax20.2mm-22%
Qts0.4+8%
BL25.4Tm-13%
Vas215.5L-4%
Qes0.420%
67%
Similarity
£486.84

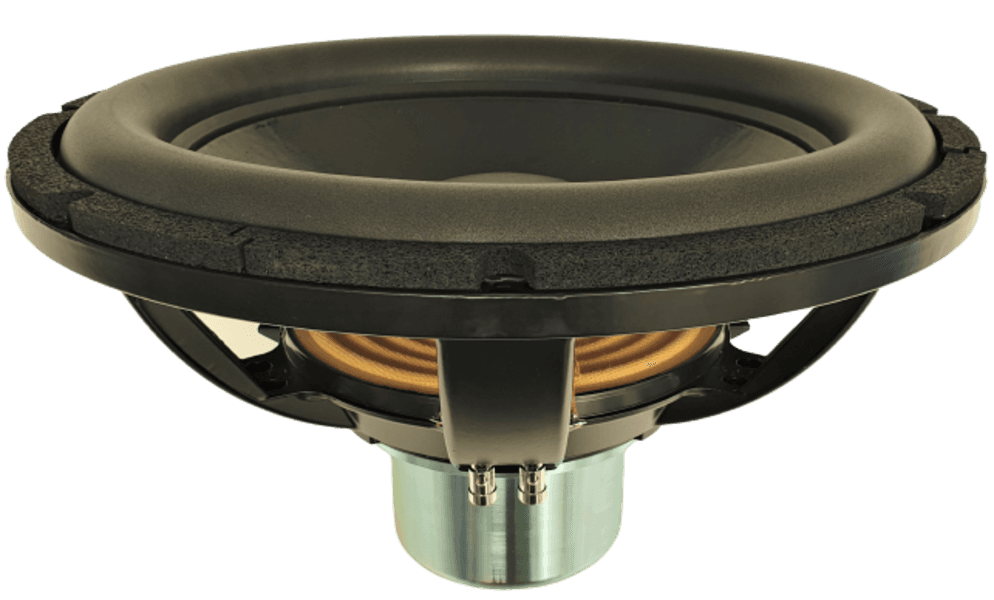

Eighteen Sound
18NLS4000
18"
Xmax22.3mm-14%
Qts0.35-5%
BL24.2Tm-17%
Vas168L-25%
Qes0.36-14%
66%
Similarity
BMS
18N860
18"
Xmax19mm-27%
Qts0.370%
BL24.9Tm-15%
Vas304L+36%
Qes0.4-5%
57%
Similarity
BMS
18N862
18"
Xmax19mm-27%
Qts0.34-8%
BL25.5Tm-13%
Vas312L+39%
Qes0.36-14%
