Sica 18 S 4 CP 8Ω
8 Ω
No current price
- Fs
- 33Hz
- Xmax
- 11mm
- SPL
- 95dB
- Pe
- 1200W
- BL
- 23.5T·m
- Vd
- 1281cm³
- Qts
- 0.35
- Vas
- 225L

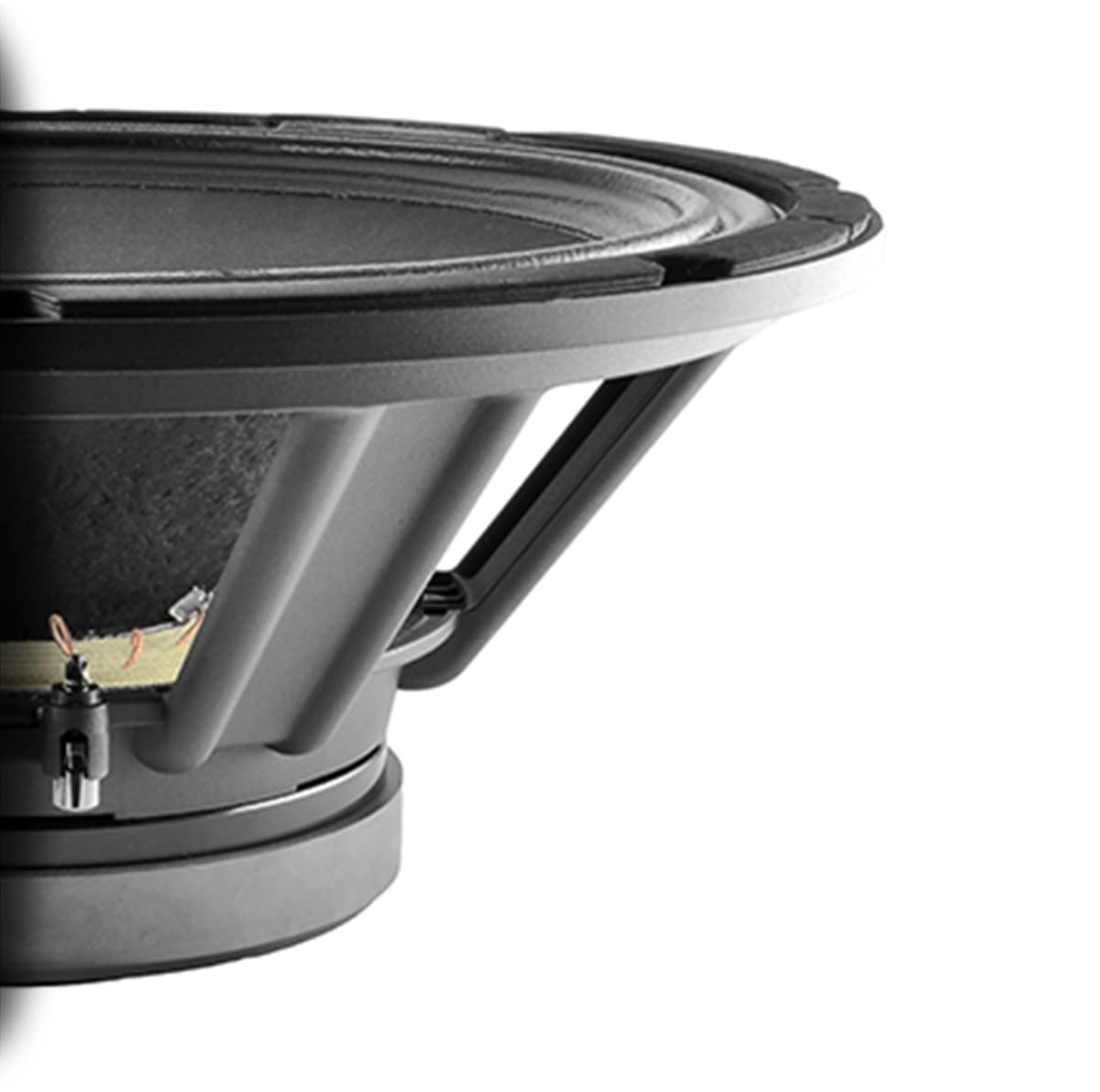

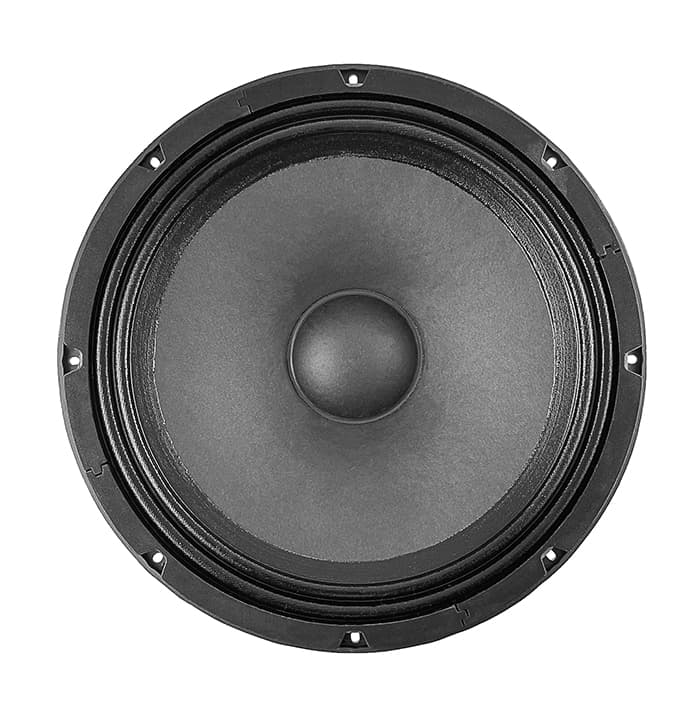

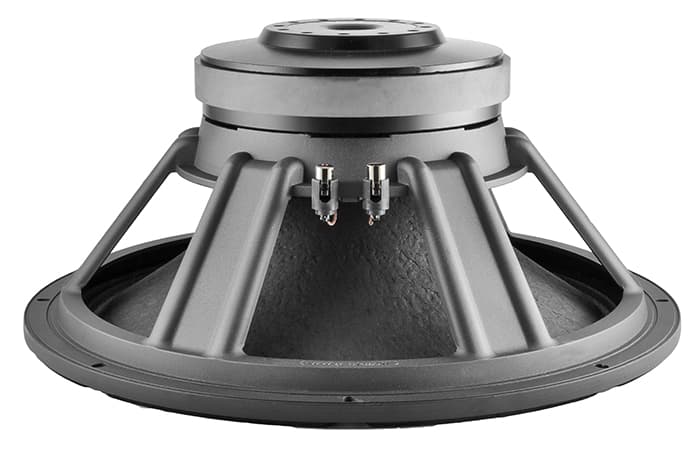

Sica 18 S 4 CP is an 18-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.35, Vas 225 L, Xmax 11 mm, sensitivity 95.2 dB, plus 1281 cm³ Vd and 85 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.35
- Qes
- 0.39
- Qms
- 3.9
- Vas
- 225L
- Re
- 5.2Ω
- Le
- 1.81mH
Motor and cone
- BL
- 23.5T·m
- Sd
- 1164cm²
- Mms
- 199g
- Xmax
- 11mm
- Vd †
- 1281cm³
- Voice coil
- 100mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 95.2dB
- Manufacturer sensitivity
- 97.1dB
- Power
- 1200W
- Impedance
- 8Ω
- EBP †
- 85 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 203.5mm
- Weight
- 14.2kg
Other published values
- Cms
- 0.12mm/N
- Power Program
- 2400
Sensitivity shows 95.2 dB, calculated from the T/S values. Sica publishes 97.1 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 18″
- BL
- 23.5T·m
- Fs
- 33Hz
- Le
- 1.81mH
- Re
- 5.2Ω
- Sd
- 1164cm²
- Cms
- 0.12mm/N
- Mms
- 199g
- Qes
- 0.39
- Qms
- 3.9
- Qts
- 0.35
- SPL
- 95.2dB
- Vas
- 225L
- Xmax
- 11mm
- Power
- 1200W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 97.1dB
- Power Program
- 2400
- Calculated sensitivity †
- 95.2dB
- Manufacturer sensitivity
- 97.1dB
- Voice coil
- 100mm
- Weight
- 14.2kg
- Diameter
- 462mm
- Depth
- 203.5mm
- Cutout
- 417mm
- Bolt circle
- 441mm
