18-inch LF driver · 1,200 W

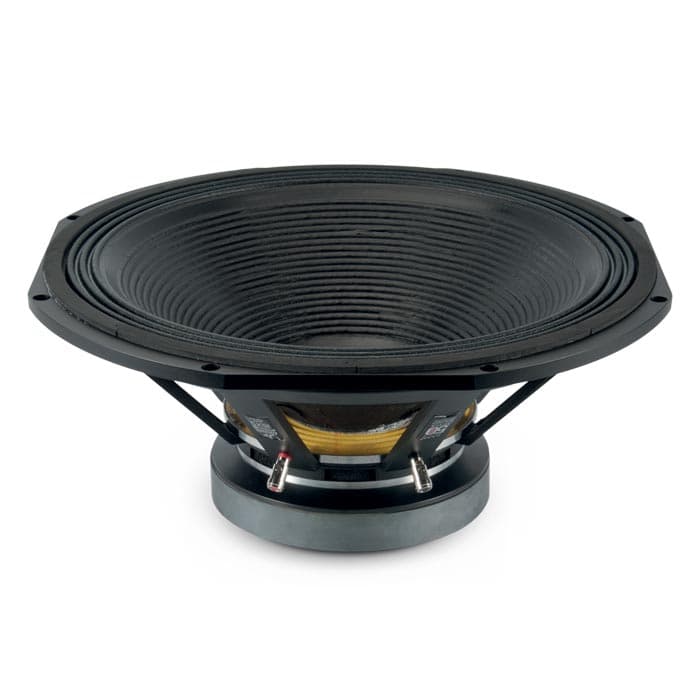

Fane COLOSSUS PRIME 18XS 4Ω

Name: Fane COLOSSUS PRIME 18XS 4 Ohm
Brand: Fane
SKU: COLOSSUS PRIME 18XS

4 Ω · 35–500 Hz

No current price

View offers

Open in 00 Simulator

Fs: 33Hz
Xmax: 12mm
SPL: 96dB
Pe: 1200W
BL: 22.4T·m
Vd: 1452cm³
Qts: 0.39
Vas: 257L

See all 24 specs

Specifications

Published by Fane

Manufacturer page

Datasheet PDF

Fane COLOSSUS PRIME 18XS is an 18-inch 4 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.39, Vas 257 L, Xmax 12 mm, sensitivity 95.6 dB, plus 1452 cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 33Hz
Qts: 0.39
Qes: 0.40
Qms: 8.2
Vas: 257L
Re: 5.2Ω
Le: 1.50mH

Motor and cone

BL: 22.4T·m
Sd: 1210cm²
Mms: 188g
Xmax: 12mm
Vd †: 1452cm³

Power and response

Sensitivity †: 95.6dB
Manufacturer sensitivity: 100dB
Power: 1200W
Impedance: 4Ω
Range: 35–500Hz
EBP †: 82 · Sealed or vented

Size and mounting

Diameter: 485mm
Depth: 216mm
Weight: 15.3kg

Other published values

Cms: 0.12mm/N
Power Peak: 4800
Power Program: 2400

Sensitivity shows 95.6 dB, calculated from the T/S values. Fane publishes 100.0 dB, 4.4 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Fane lists

LF · Primary · 18″

BL: 22.4T·m
Fs: 33Hz
Le: 1.50mH
Re: 5.2Ω
Sd: 1210cm²
Cms: 0.12mm/N
Mms: 188g
Qes: 0.40
Qms: 8.2
Qts: 0.39
SPL: 95.6dB
Vas: 257L
Xmax: 12mm
Power: 1200W
Impedance: 4Ω
Power Peak: 4800
Sensitivity: 100dB
Low limit: 35Hz
Power Program: 2400
Calculated sensitivity †: 95.6dB
High limit: 500Hz
Manufacturer sensitivity: 100dB
Weight: 15.3kg
Diameter: 485mm
Depth: 216mm

Designs

Cabinets for the COLOSSUS PRIME 18XS: plans builders have published.

All COLOSSUS PRIME 18XS designs How we find designs

Plans from builders

Links to published plans that name this driver

Cubo Sub
Hybrid horn, 18-inch
Johan (Cubo) · free plans on freespeakerplans.com
The designer’s third choice from a builder’s shortlist
