LF Driver18PS series
B&C
B&C 18PS100
B&C 18PS100 is a 18" 4 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 30Hz, Qts 0.40, Vas 251L, Xmax 7mm, sensitivity 94.1dB, plus 847cm³ Vd and 71 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £205.00.
Size
18"
Impedance
4Ω
RMS Power
700W
Sensitivity
94.1dB
EBP
71
Either alignment
Vd
847cm³

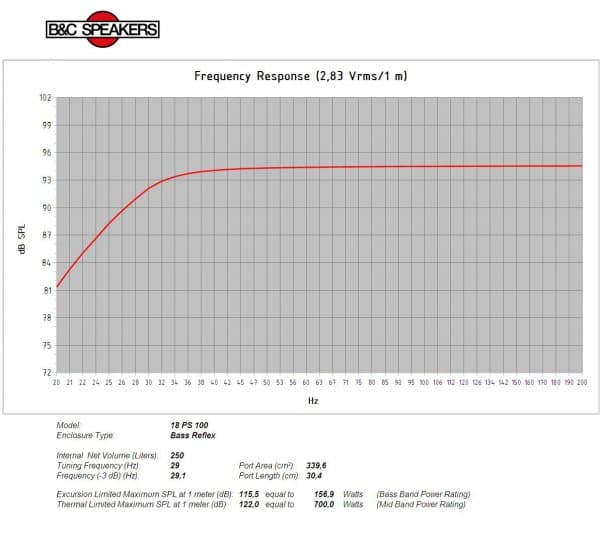

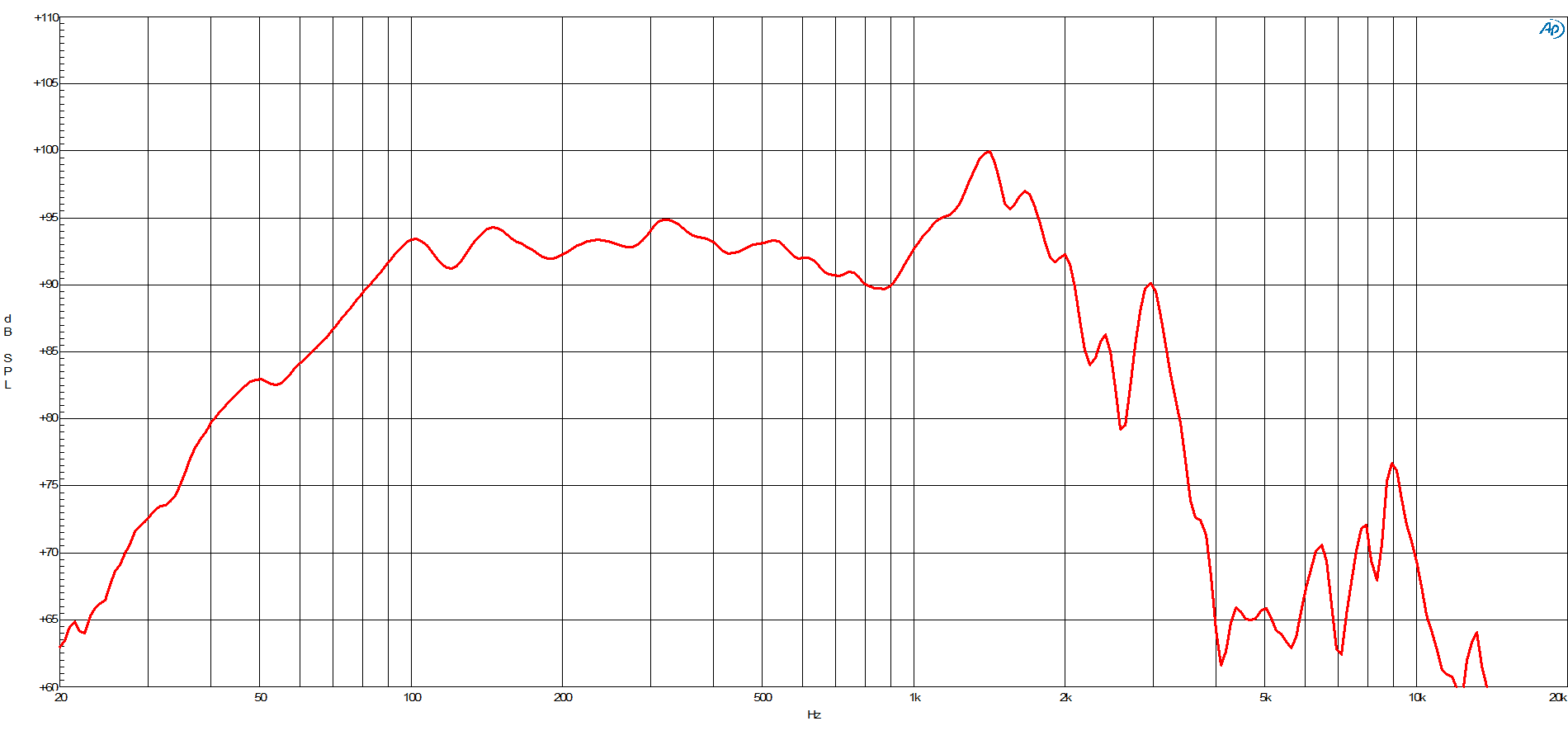

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs30Hz
Qts0.40
Qes0.42
Qms9.1
Vas251.0L
Re3.8Ω
Le1.35mH
BL20.0Tm
Sd1210cm²
Mms239g
Xmax7.0mm
SPL94dB
Power700W
Power Nominal700W
Impedance4Ω
Min Impedance4.6Ω
F Low30Hz
F High1000Hz
Voice Coil100mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Best current price
£205.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.2kg
Diameter460.0mm
Overall Depth197.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
Additional Manufacturer Specs
Bl20 Tm
Fs30 Hz
Le1.35 mH
Re3.8 Ω
Sd1210 cm² (187.55 in²)
Ebp71 Hz
Mms239 g
Qes0.42
Qms9.1
Qts0.4
Vas251 dm³ (8.86 ft³)
η01.46 %
ConeRCK18PS1004
Xmax7 mm
Xvar9 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth19 mm (0.75 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter460 mm (18 in)
Winding MaterialCopper
Magnetic Gap Depth10.5 mm (0.41 in)
Recommended Tuning29 Hz
Bolt Circle Diameter440 mm (17.32 in)
Recommended Enclosure250 dm³ (8.83 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter422 mm (16.61 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver9.5 dm³ (0.34 ft³)
