LF DriverTF1830 series
Celestion

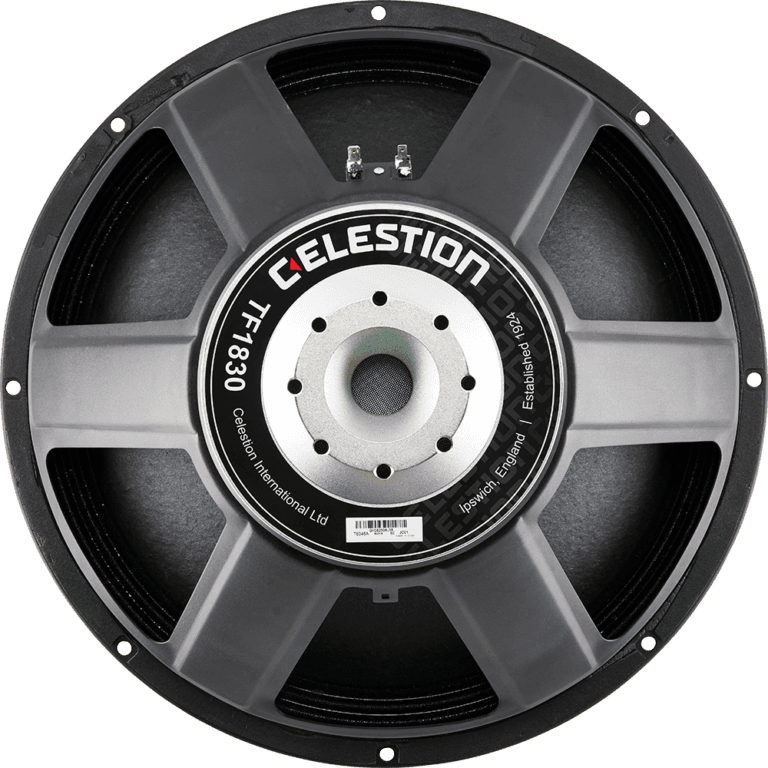

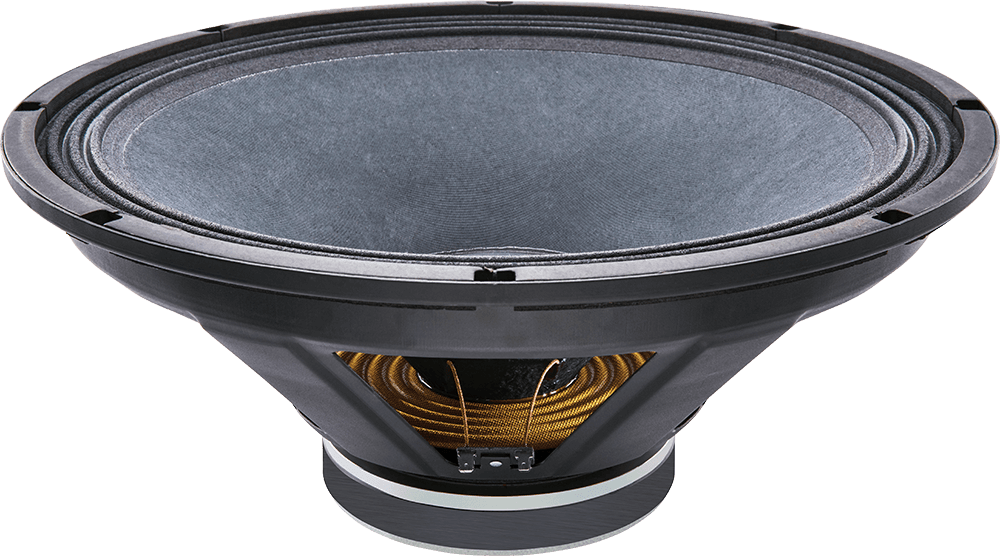

Celestion TF1830
Celestion TF1830 is a 18" 4 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 36Hz, Qts 0.39, Vas 202.4L, Xmax 4.5mm, sensitivity 95.3dB, plus 510cm³ Vd and 82 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £179.00.
Size
18"
Impedance
4Ω
RMS Power
500W
Sensitivity
95.3dB
EBP
82
Either alignment
Vd
510cm³

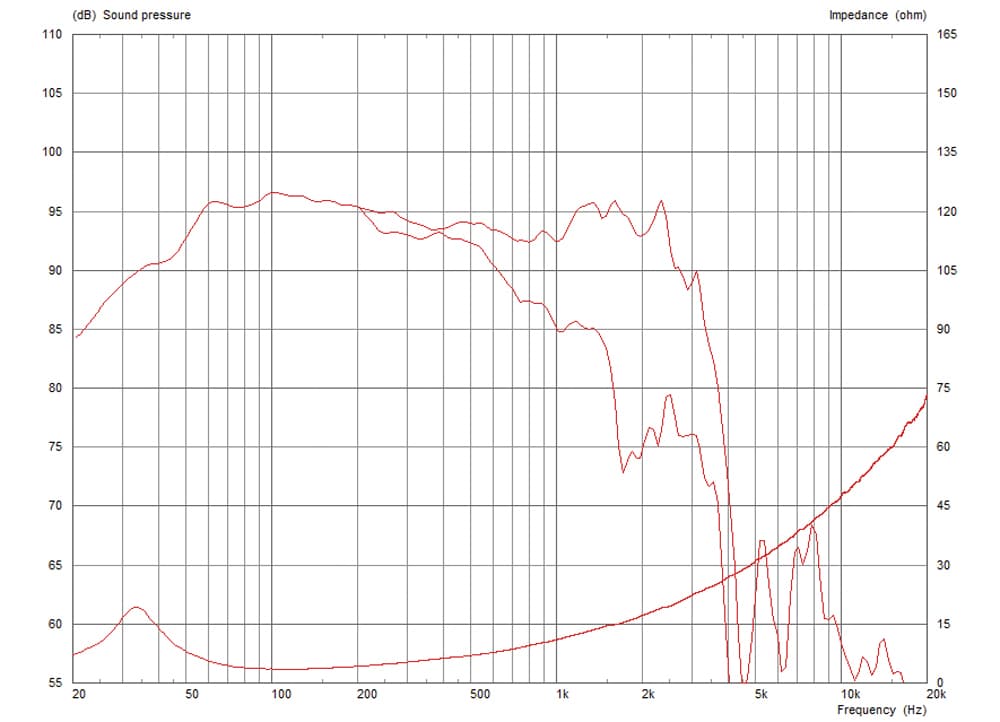

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence266 selected pixels of 423
T/S Parameters
Valid
Fs36Hz
Qts0.39
Qes0.43
Qms4.2
Vas202.4L
Re2.6Ω
Le1.28mH
BL15.5Tm
Sd1134cm²
Mms179g
Xmax4.5mm
SPL95dB
Power500W
Impedance4Ω
Voice Coil75mm
Pricing & availability
Price definitionsPrice movement
Best current price
£179.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.5kg
Diameter460.0mm
Overall Depth209.0mm
Cutout Diameter421.0mm
Bolt Circle Diameter443.4mm
