- Net volume
- 140L
- Tuning
- 40Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

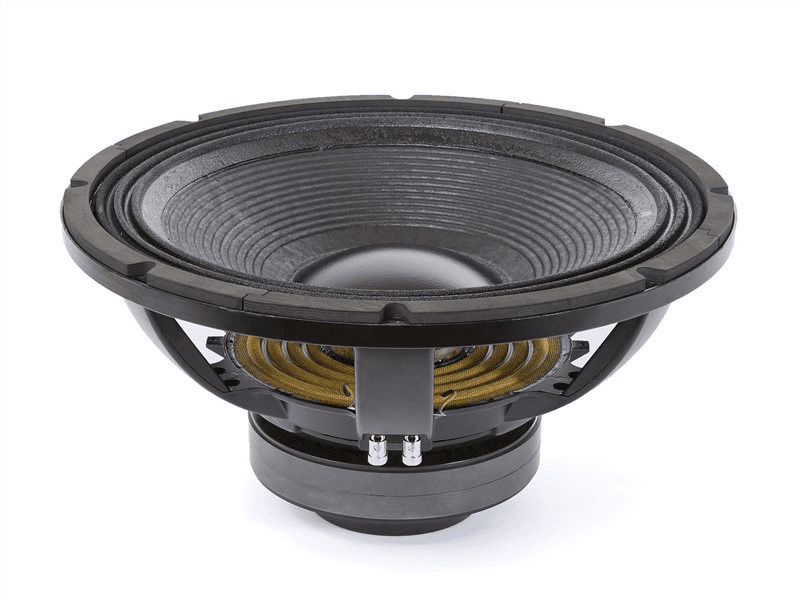

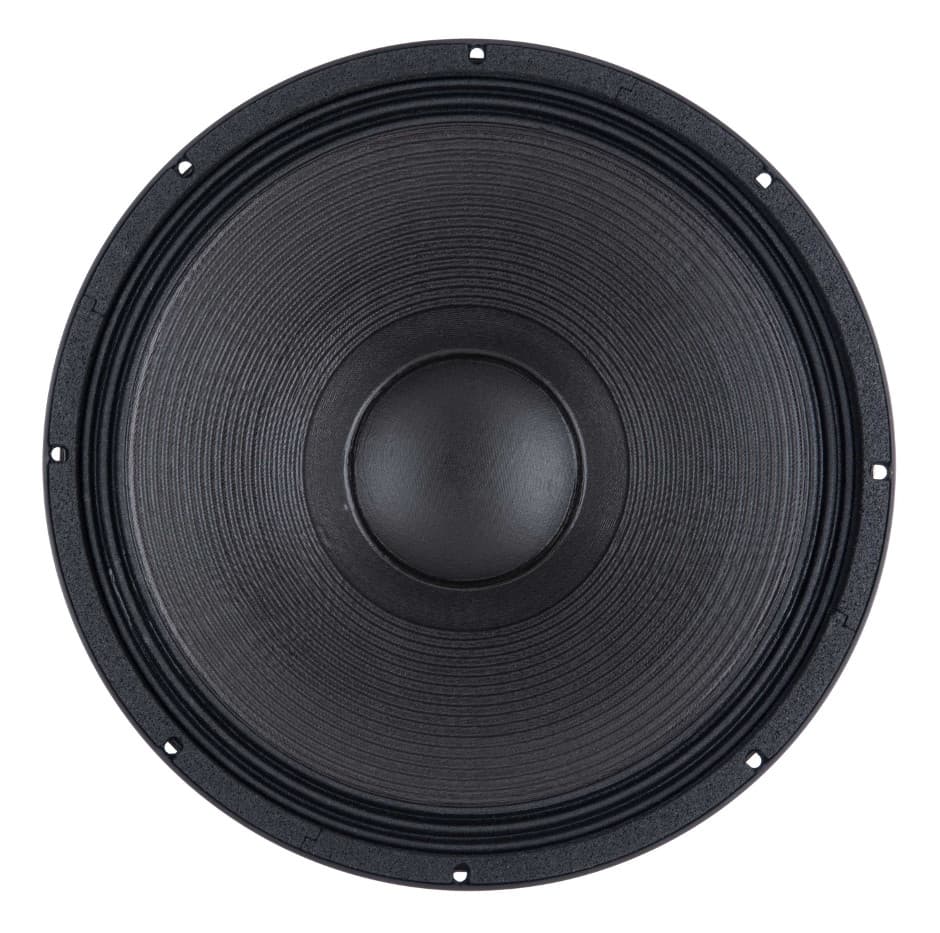

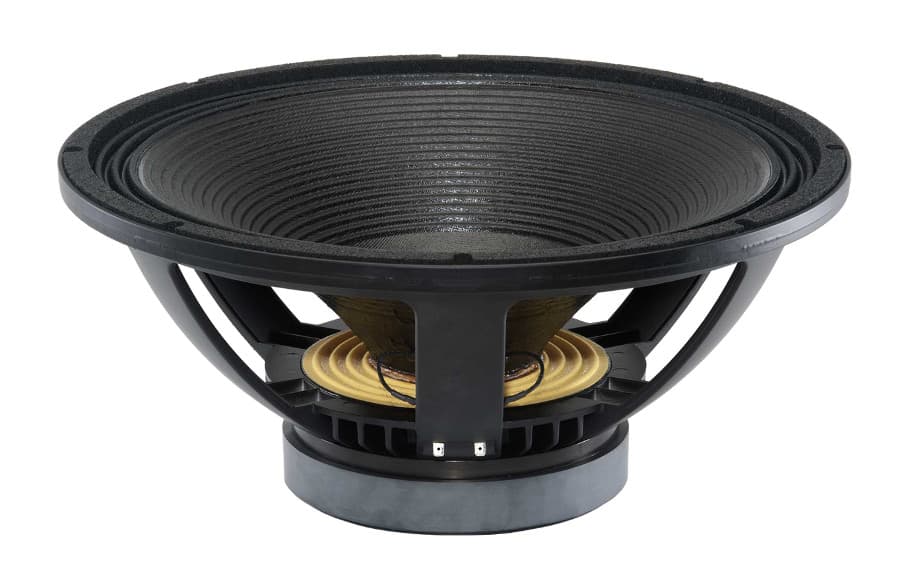

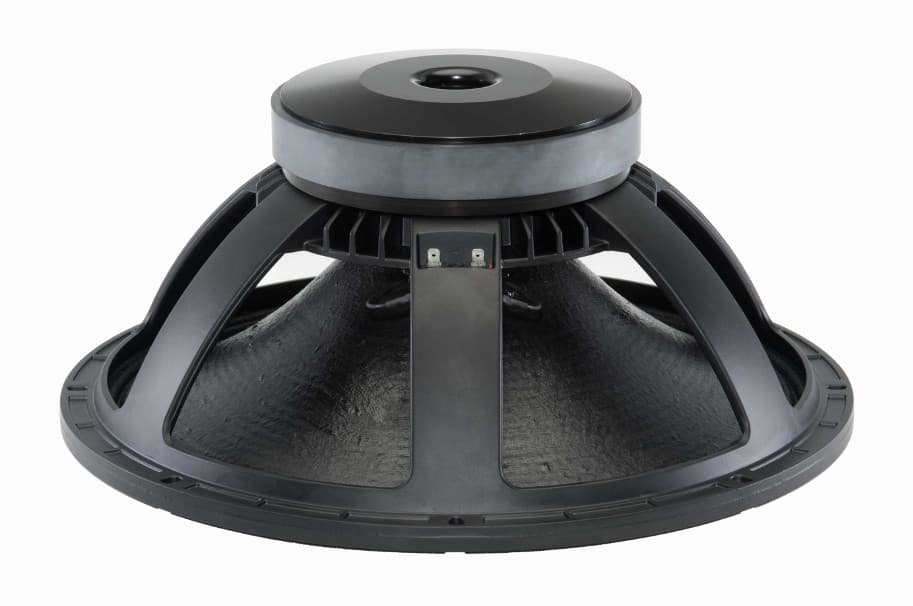

18-inch LF driver · 18RBX series · 100 mm voice coil · 1,000 W
B&C 18RBX100 4Ω
35–1000 Hz
No price for delivery to the UK
- Fs
- 42Hz
- Xmax
- 10mm
- SPL
- 96dB
- Pe
- 1000W
- BL
- 22T·m
- Vd
- 1225cm³
- Qts
- 0.40
- Vas
- 136L

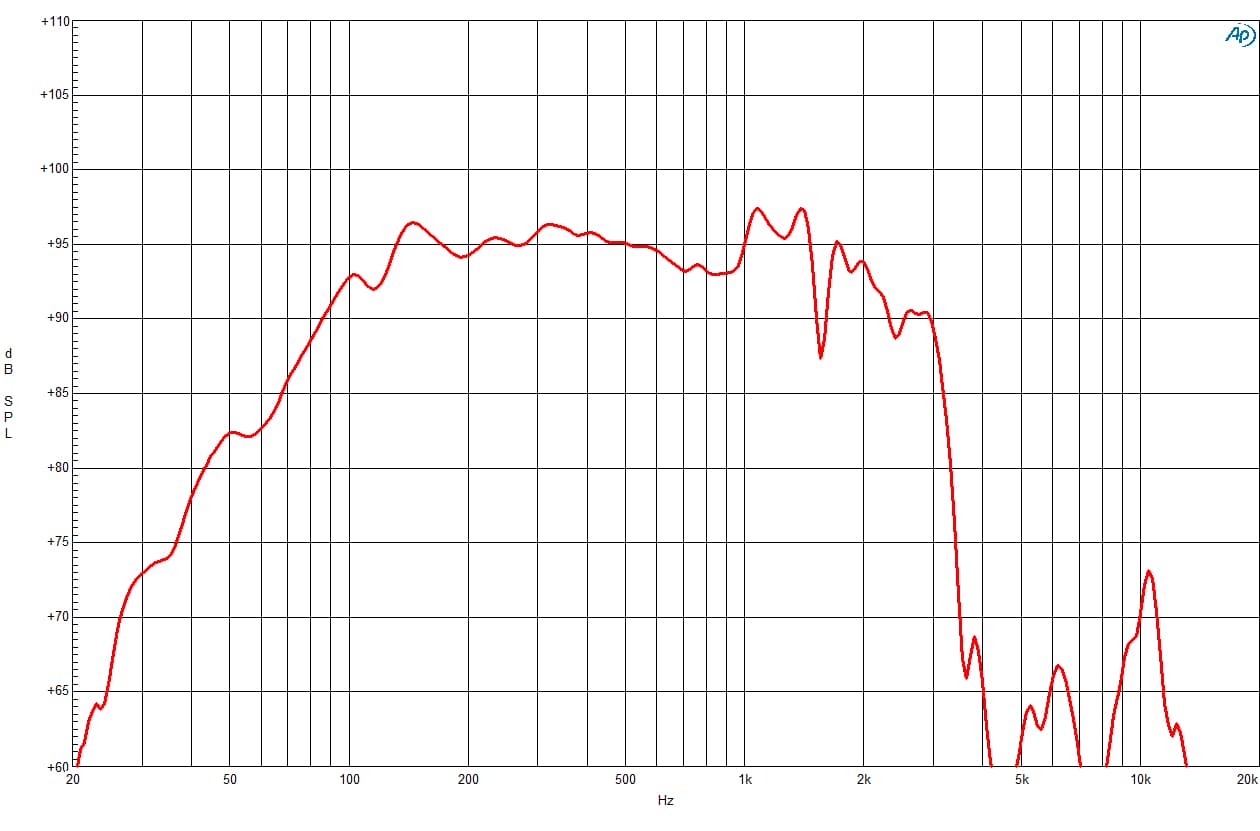

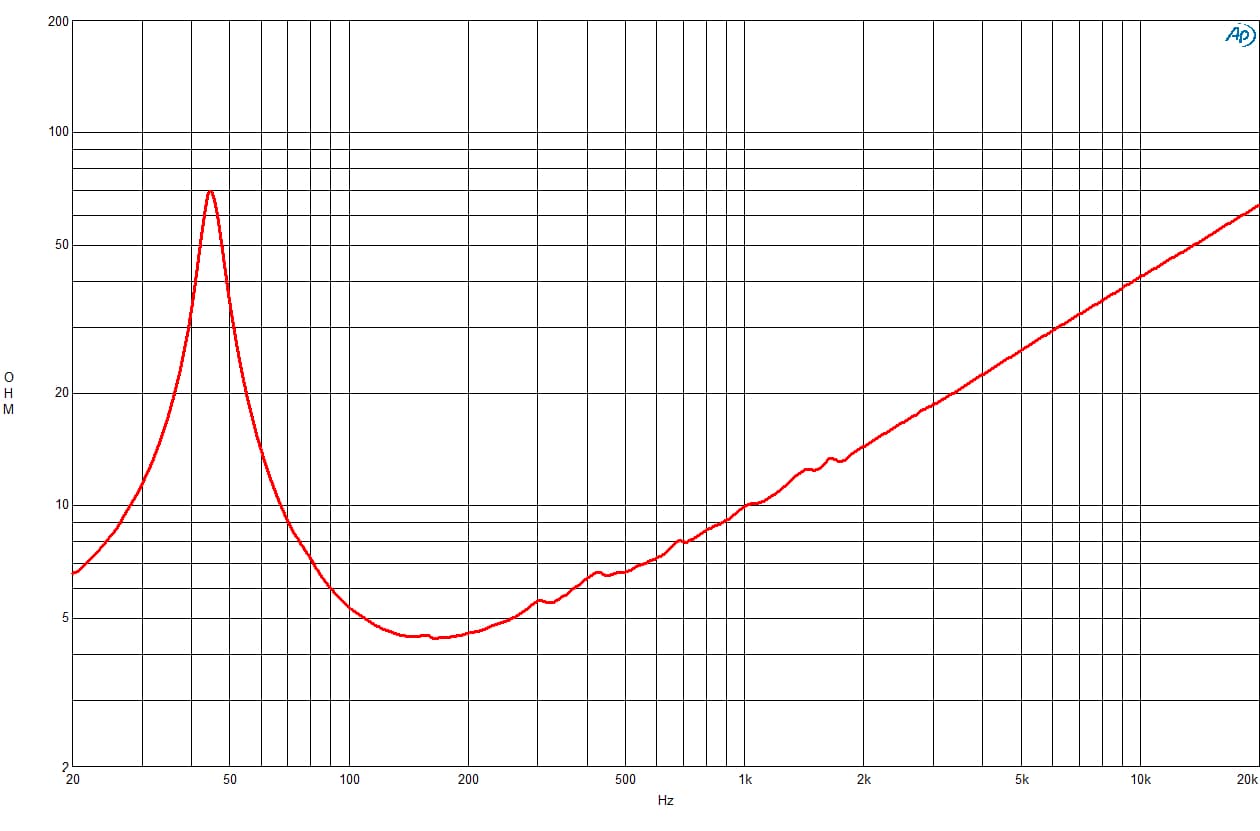

Published graphs
B&C 18RBX100 is an 18-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.40, Vas 136 L, Xmax 10 mm, sensitivity 95.9 dB, plus 1225 cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.40
- Qes
- 0.41
- Qms
- 8
- Vas
- 136L
- Re
- 3.5Ω
- Le
- 1.20mH
Motor and cone
- BL
- 22T·m
- Sd
- 1225cm²
- Mms
- 210g
- Xmax
- 10mm
- Vd †
- 1225cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 97dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Min. impedance
- 4.5Ω
- Range
- 35–1000Hz
- EBP †
- 102 · Leans vented
Size and mounting
- Diameter
- 460mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Depth
- 200mm
- Weight
- 12.1kg
Sensitivity shows 95.9 dB, calculated from the T/S values. B&C publishes 97.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 22T·m
- Fs
- 42Hz
- Le
- 1.20mH
- Re
- 3.5Ω
- Sd
- 1225cm²
- Mms
- 210g
- Qes
- 0.41
- Qms
- 8
- Qts
- 0.40
- SPL
- 95.9dB
- Vas
- 136L
- Xmax
- 10mm
- Power
- 1000W
- Impedance
- 4Ω
- Flux density
- 1.10T
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 95.9dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 4.5Ω
- Voice coil
- 100mm
- Weight
- 12.1kg
- Diameter
- 460mm
- Depth
- 200mm
- Cutout
- 422mm
- Bolt circle
- 440mm
- Bl
- 22 Tm
- Fs
- 42 Hz
- Le
- 1.2 mH
- Re
- 3.5 Ω
- Sd
- 1225 cm² (189.88 in²)
- Ebp
- 102 Hz
- Mms
- 210 g
- Qes
- 0.41
- Qms
- 8
- Qts
- 0.4
- Vas
- 136 dm³ (4.8 ft³)
- Η0
- 2.5 %
- Cone
- RCK18RBX1004
- Xmax
- 10 mm
- Xvar
- 13 mm
- Depth
- 200 mm (7.87 in)
- Spider
- Double Silicone
- Cone shape
- Curvilinear
- Net weight
- 12.05 kg (26.57 lb)
- Pole design
- T-Pole
- Sensitivity
- 97 dB
- Flux density
- 1.1 T
- Shipping box
- 500x495x275 mm (19.69x19.49x10.83 in)
- Winding depth
- 25 mm (1 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 35 Hz - 1000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 13.65 kg (30.09 lb)
- Nominal diameter
- 460 mm (18 in)
- Overall diameter
- 460 mm (18.11 in)
- Winding material
- Copper
- Minimum impedance
- 4.5 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 40 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 440 mm (17.32 in)
- Recommended enclosure
- 140 dm³ (4.94 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 422 mm (16.61 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 10.5 dm³ (0.37 ft³)

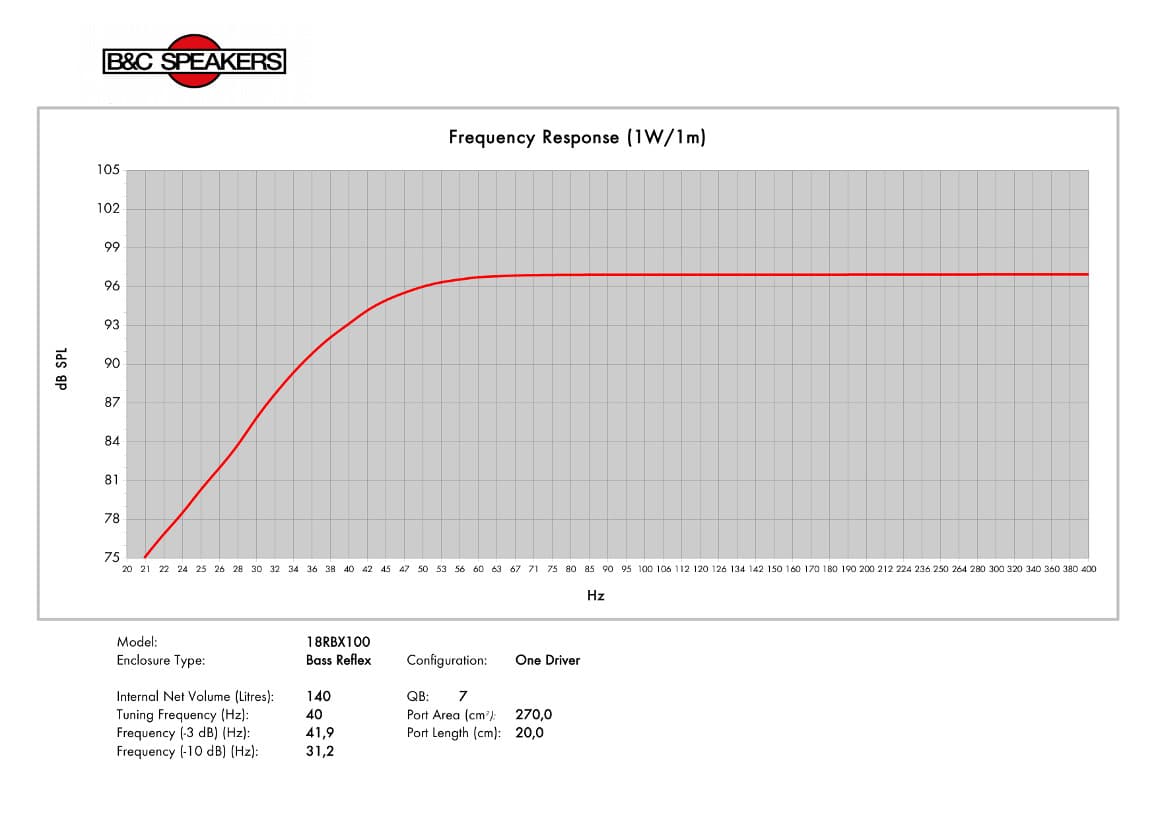

B&C’s suggested box
