Overview
LF Driver
Sica

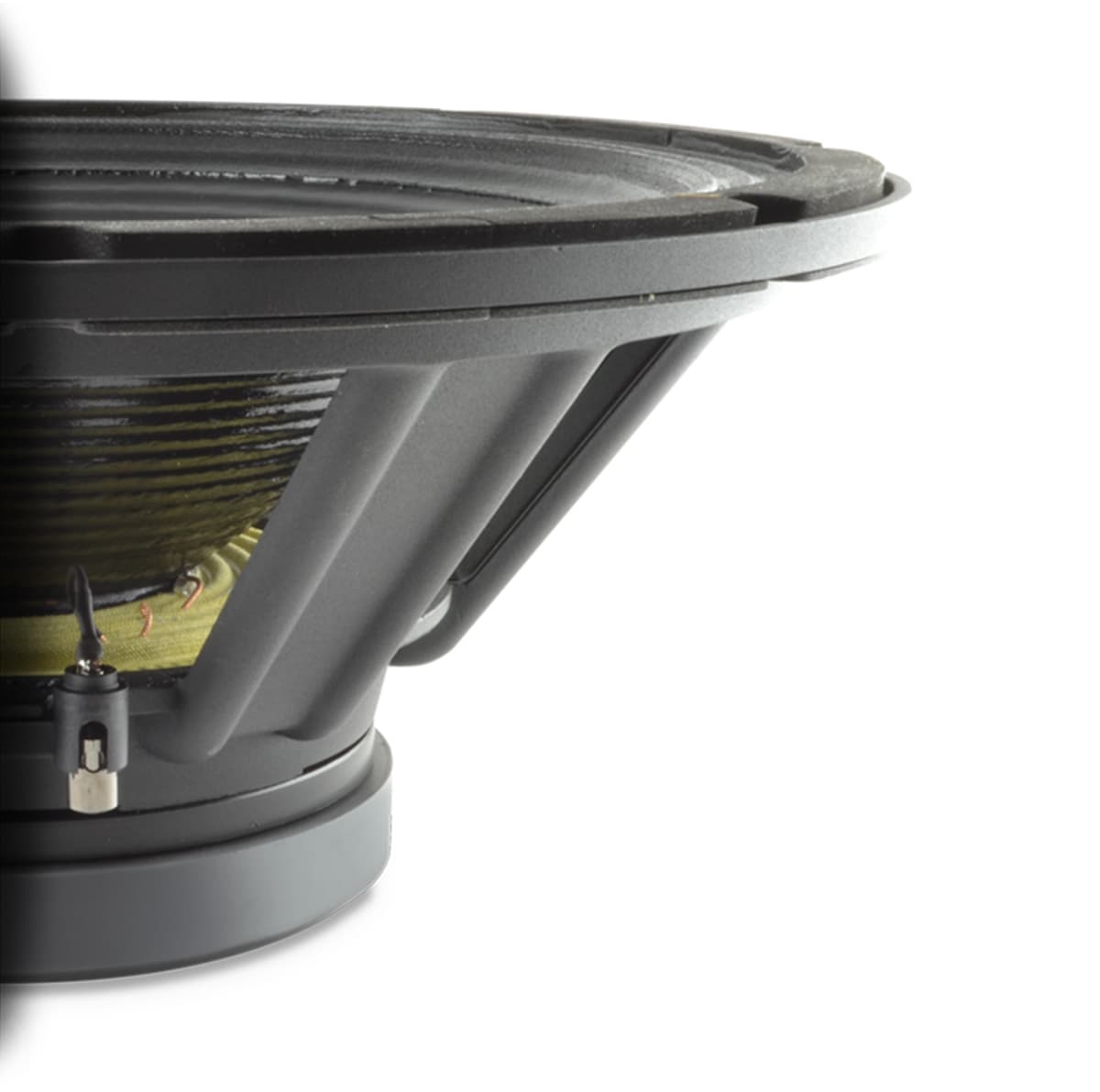

Sica 18 PF 4
Sica 18 PF 4 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 38Hz, Qts 0.43, Vas 147.3L, Xmax 8mm, sensitivity 94.4dB, plus 931cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
94.4dB
96.3dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
81
Either alignment
Vd
931cm³
T/S Parameters
Valid
Fs38Hz
Qts0.43
Qes0.47
Qms6.5
Vas147.3L
Re5.2Ω
Le1.85mH
BL24.6Tm
Sd1164cm²
Mms229g
Xmax8.0mm
SPL94dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.05T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.0kg
Diameter462.0mm
Overall Depth209.5mm
Cutout Diameter417.0mm
Bolt Circle Diameter441.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
18 PF 4
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
P.Audio
18NT-100XB
18"
Xmax7mm-12%
Qts0.41-5%
BL24.6Tm0%
Vas171.3L+16%
Qes0.43-9%
81%
Similarity
P.Audio
18NT-100SW
18"
Xmax9mm+13%
Qts0.48+12%
BL25.2Tm+3%
Vas144.6L-2%
Qes0.5+6%
80%
Similarity

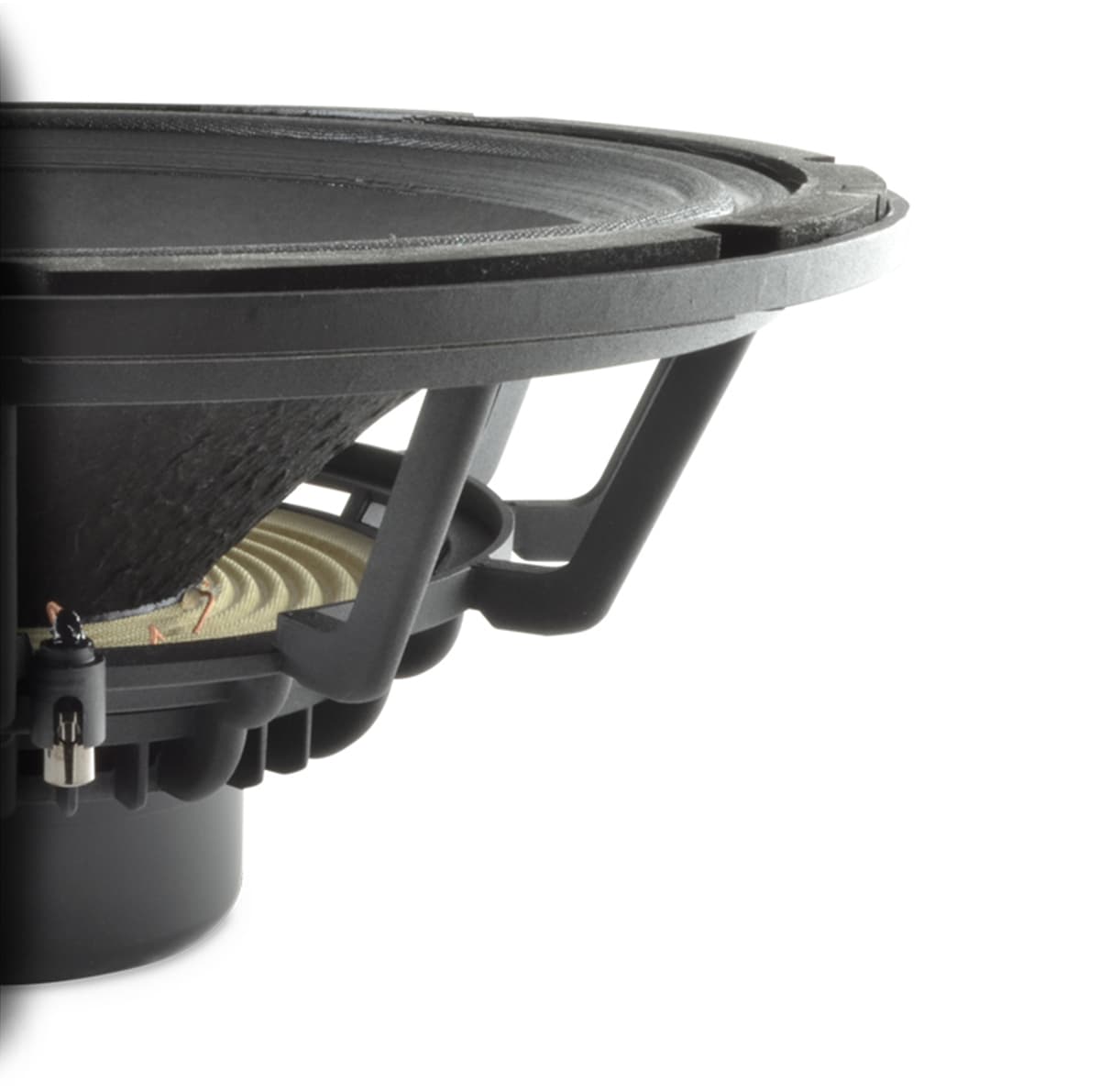

Sica
