18-inch LF driver · ERPROX18 series · 100 mm voice coil · 1,000 W

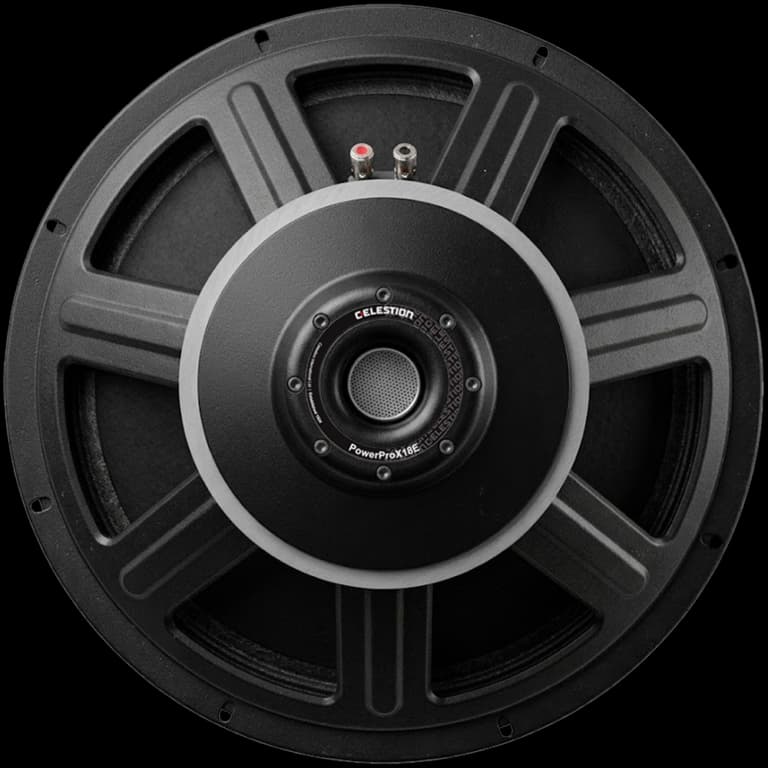

Celestion ERPROX18E 8Ω
8 Ω · 45–450 Hz
No current price
- Fs
- 32Hz
- Xmax
- 9.5mm
- SPL
- 94dB
- Pe
- 1000W
- BL
- 23.7T·m
- Vd
- 1193cm³
- Qts
- 0.43
- Vas
- 246L

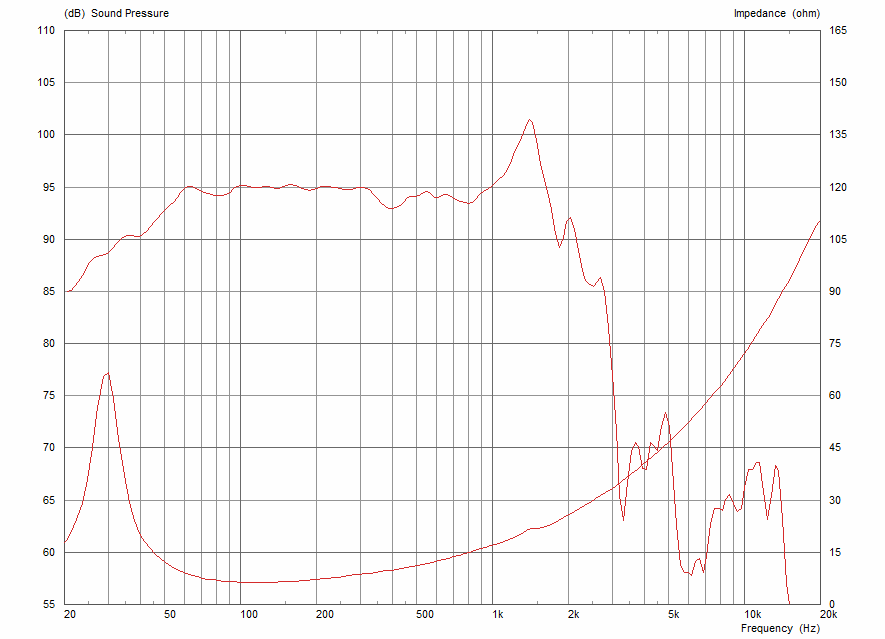

Published graphs
Celestion ERPROX18E is an 18-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.43, Vas 246.2 L, Xmax 9.5 mm, sensitivity 94.4 dB, plus 1193 cm³ Vd and 68 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.43
- Qes
- 0.47
- Qms
- 5.9
- Vas
- 246.2L
- Re
- 5.8Ω
- Le
- 1.97mH
Motor and cone
- BL
- 23.7T·m
- Sd
- 1256cm²
- Mms
- 226g
- Xmax
- 9.5mm
- Vd †
- 1193cm³
- Voice coil
- 100mm
Power and response
- Sensitivity †
- 94.4dB
- Manufacturer sensitivity
- 96dB
- Power
- 1000W
- Impedance
- 8Ω
- Range
- 45–450Hz
- EBP †
- 68 · Sealed or vented
Size and mounting
- Diameter
- 459.6mm
- Cutout
- 423mm
- Bolt circle
- 445mm
- Depth
- 218mm
- Weight
- 12.2kg
Other published values
- Cms
- 0.11mm/N
- Rms
- 7.70kg/s
- Power Program
- 2000
Sensitivity shows 94.4 dB, calculated from the T/S values. Celestion publishes 96.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 18″
- BL
- 23.7T·m
- Fs
- 32Hz
- Le
- 1.97mH
- Re
- 5.8Ω
- Sd
- 1256cm²
- Cms
- 0.11mm/N
- Mms
- 226g
- Qes
- 0.47
- Qms
- 5.9
- Qts
- 0.43
- Rms
- 7.70kg/s
- SPL
- 94.4dB
- Vas
- 246.2L
- Xmax
- 9.5mm
- Power
- 1000W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 45Hz
- Power Program
- 2000
- Calculated sensitivity †
- 94.4dB
- High limit
- 450Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 100mm
- Weight
- 12.2kg
- Diameter
- 459.6mm
- Depth
- 218mm
- Cutout
- 423mm
- Bolt circle
- 445mm
