Overview
LF DriverPD series
Precision Devices
Precision Devices PD.185C001

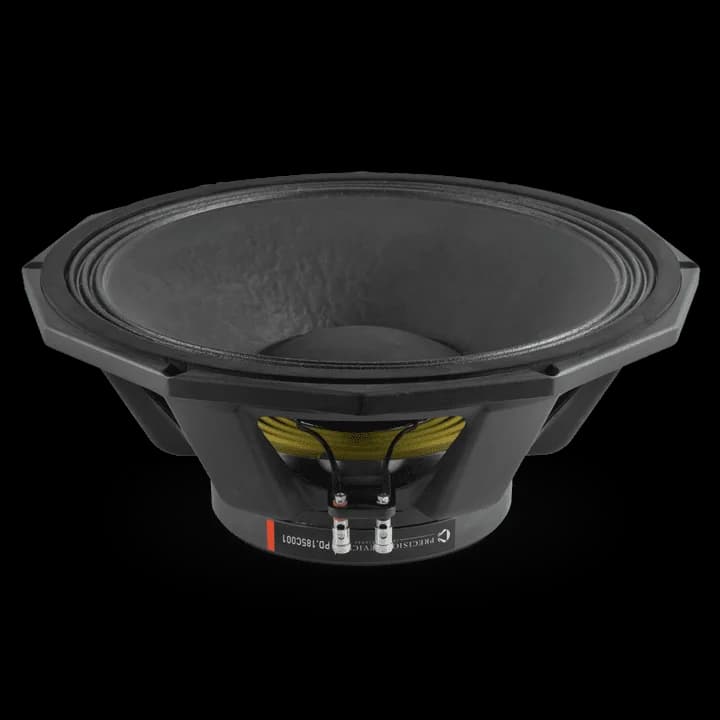

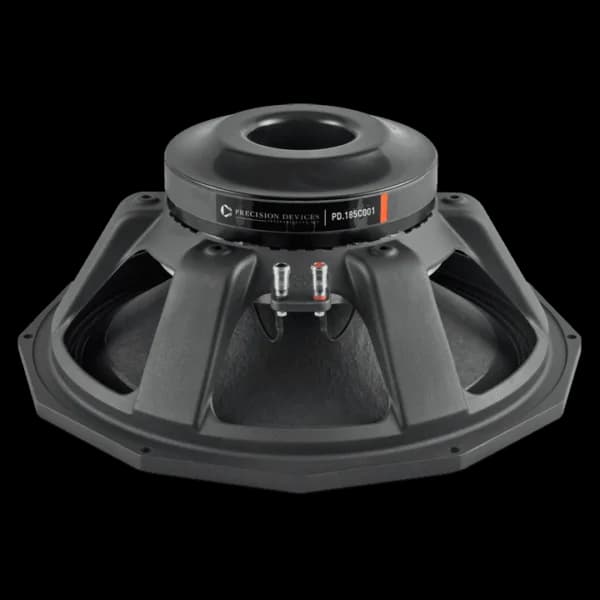

Precision Devices PD.185C001 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 32Hz, Qts 0.40, Vas 302L, Xmax 10.5mm, sensitivity 95.7dB, plus 1220cm³ Vd and 76 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £239.00.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
95.7dB
97.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
76
Either alignment
Vd
1220cm³
T/S Parameters
Valid
Fs32Hz
Qts0.40
Qes0.42
Qms8.4
Vas302.0L
Re5.9Ω
Le3.80mH
BL21.0Tm
Sd1162cm²
Mms157g
Xmax10.5mm
SPL96dB
Power1200W
Impedance8Ω
F Low30Hz
F High300Hz
Voice Coil127mm
Flux Density0.96T
Pricing & availability
Price definitionsPrice movement
Best current price
£239.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.2kg
Diameter474.0mm
Overall Depth182.5mm
Cutout Diameter415.0mm
Bolt Circle Diameter456.0mm
