REDCATT 183FIND 8Ω
8 Ω
£123.79
Lautsprecherteile · 8 in stock · All 1 offer
- Fs
- 32Hz
- Xmax
- 5.9mm
- SPL
- 96dB
- Pe
- 600W
- BL
- 21.1T·m
- Vd
- 723cm³
- Qts
- 0.42
- Vas
- 330L
REDCATT 183FIND is an 18-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.42, Vas 329.5 L, Xmax 5.9 mm, sensitivity 96 dB, plus 723 cm³ Vd and 74 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £123.79.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.42
- Qes
- 0.43
- Qms
- 13.2
- Vas
- 329.5L
- Re
- 5.9Ω
- Le
- 0.73mH
Motor and cone
- BL
- 21.1T·m
- Sd
- 1225cm²
- Mms
- 165g
- Xmax
- 5.9mm
- Vd †
- 723cm³
- Voice coil
- 76mm
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 97.1dB
- Power
- 600W
- Impedance
- 8Ω
- EBP †
- 74 · Sealed or vented
Size and mounting
- Diameter
- 461mm
- Cutout
- 422mm
- Bolt circle
- 442mm
- Weight
- 8.8kg
Other published values
- Xmech
- 13.9
- Power Peak
- 2400
Other dimensions
- Mounting Depth
- 184
Sensitivity shows 96.0 dB, calculated from the T/S values. REDCATT publishes 97.1 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 18″
- BL
- 21.1T·m
- Fs
- 32Hz
- Le
- 0.73mH
- Re
- 5.9Ω
- Sd
- 1225cm²
- Mms
- 165g
- Qes
- 0.43
- Qms
- 13.2
- Qts
- 0.42
- SPL
- 96dB
- Vas
- 329.5L
- Xmax
- 5.9mm
- Xmech
- 13.9
- Power
- 600W
- Impedance
- 8Ω
- Power Peak
- 2400
- Sensitivity
- 97.1dB
- Calculated sensitivity †
- 96dB
- Manufacturer sensitivity
- 97.1dB
- Voice coil
- 76mm
- Weight
- 8.8kg
- Diameter
- 461mm
- Mounting Depth
- 184
- Cutout
- 422mm
- Bolt circle
- 442mm
02
Compare
Same-size drivers, compared with the 183FIND. Clear differences are green when better and red when worse.
This driver183FIND
Best price
£123.79
Fs
32 Hz
Qts
0.42
Vas
329.5 L
BL
21.1 T·m
Xmax
5.9 mm
Sensitivity
96 dB
Power
600 W

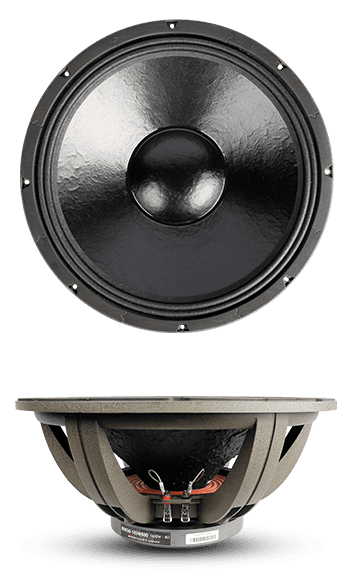

SB AudienceBIANCO-18SW450
£135.53 · 9% more, worseFs28 Hz −13%, better
Qts0.45 +7%
Vas370.4 L +12%, worse
BL18.8 T·m −11%, worse
Xmax10.9 mm +85%, better
Sensitivity94.4 dB −1.6
Beyma18WRS600
£185.00 · 49% more, worseFs30 Hz −6%
Qts0.47 +12%, worse
Vas354 L +7%
BL19 T·m −10%, worse
Xmax8.5 mm +44%, better
Sensitivity95 dB −1
SB AudienceROSSO-18SW800
£187.71 · 52% more, worseFs33 Hz +3%
Qts0.46 +10%
Vas258.1 L −22%, better
BL21 T·m –
Xmax11.3 mm +92%, better
Sensitivity94.9 dB −1.1

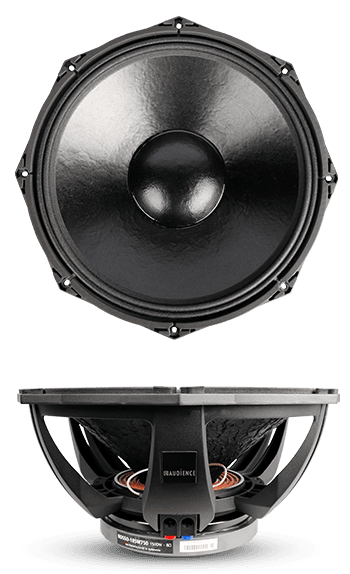

SB AudienceROSSO-18SW750
£200.80 · 62% more, worseFs36 Hz +13%, worse
Qts0.43 –
Vas206.9 L −37%, better
BL23.3 T·m +10%, better
Xmax8.8 mm +49%, better
Sensitivity95.3 dB −0.7
B&C18PS100
£203.19 · 64% more, worseFs30 Hz −6%
Qts0.39 −7%
Vas245 L −26%, better
BL22.5 T·m +6%
Xmax8 mm +36%, better
Sensitivity94.1 dB −1.9
Beyma18LEX1200FE
£225.00 · 82% more, worseFs32 Hz –
Qts0.38 −10%
Vas277 L −16%, better
BL23.2 T·m +10%
Xmax11 mm +86%, better
Sensitivity95.7 dB –
CelestionFTR18-4080HDX
£237.20 · 92% more, worseFs39 Hz +23%, worse
Qts0.43 –
Vas174.9 L −47%, better
BL21.3 T·m –
Xmax10.1 mm +71%, better
Sensitivity95.6 dB –
Precision DevicesPD.185C001
£239.00 · 93% more, worseFs32 Hz –
Qts0.40 −4%
Vas302 L −8%
BL21 T·m –
Xmax10.5 mm +78%, better
Sensitivity95.7 dB –

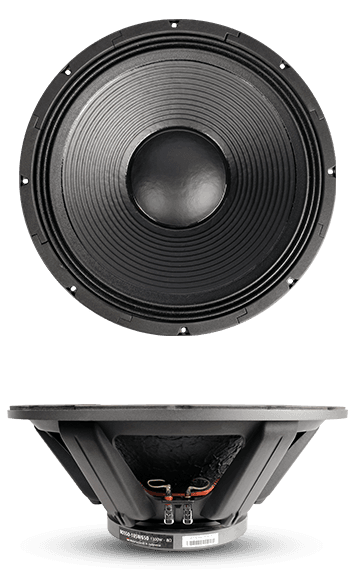

SB AudienceROSSO-18SW650
£247.55 · 100% more, worseFs31 Hz −3%
Qts0.41 –
Vas304.3 L −8%
BL20.6 T·m –
Xmax11.2 mm +89%, better
Sensitivity95.2 dB −0.8
FaitalPRO18HP1010
£249.30 · 101% more, worseFs35 Hz +9%
Qts0.40 −5%
Vas240.1 L −27%, better
BL22 T·m +4%
Xmax9.8 mm +65%, better
Sensitivity95.9 dB –
Beyma18LEX1000ND
£249.54 · 102% more, worseFs34 Hz +6%
Qts0.39 −7%
Vas260 L −21%, better
BL22 T·m +4%
Xmax11 mm +86%, better
Sensitivity95.9 dB –
Beyma18PWB1000FE
£255.00 · 106% more, worseFs27 Hz −16%, better
Qts0.38 −10%
Vas317 L −4%
BL25 T·m +18%, better
Xmax12.5 mm +112%, better
Sensitivity94 dB −2, worse
FaitalPRO18HP1042
£291.98 · 136% more, worseFs38 Hz +19%, worse
Qts0.41 –
Vas191.9 L −42%, better
BL24.5 T·m +16%, better
Xmax9 mm +53%, better
Sensitivity95.9 dB –
FaitalPRO18FX800
£298.81 · 141% more, worseFs34 Hz +6%
Qts0.40 −5%
Vas247 L −25%, better
BL24 T·m +14%, better
Xmax13.8 mm +134%, better
Sensitivity95.6 dB –
BMS18N830V2
£347.59 · 181% more, worseFs31 Hz −3%
Qts0.37 −12%, better
Vas262 L −20%, better
BL22.4 T·m +6%
Xmax8 mm +36%, better
Sensitivity95 dB −1
Beyma18LEX1600ND
£399.00 · 222% more, worseFs33 Hz +3%
Qts0.43 –
Vas231 L −30%, better
BL24.5 T·m +16%, better
Xmax14.5 mm +146%, better
Sensitivity94.7 dB −1.3
REDCATT18FIND-1
No current priceFs36 Hz +13%, worse
Qts0.42 –
Vas203.4 L −38%, better
BL23.6 T·m +12%, better
Xmax5.8 mm –
Sensitivity95.4 dB −0.6
REDCATT18FIND-2
No current priceFs34 Hz +6%
Qts0.46 +10%
Vas221 L −33%, better
BL21.3 T·m –
Xmax5.8 mm –
Sensitivity94.5 dB −1.5
CelestionFTR18-4080FDX
No current priceFs37 Hz +17%, worse
Qts0.41 –
Vas160.7 L −51%, better
BL25.1 T·m +19%, better
Xmax6 mm –
Sensitivity94.9 dB −1.1
No photo
PHL Audio7081
No current priceFs34 Hz +6%
Qts0.41 –
Vas267.6 L −19%, better
BL22.7 T·m +7%
Xmax7.5 mm +27%, better
Sensitivity95.8 dB –
Sica18 F 3 CP
No current priceFs32 Hz –
Qts0.44 +5%
Vas321 L –
BL17.2 T·m −19%, worse
Xmax6.5 mm +10%, better
Sensitivity94.9 dB −1.1
PRV Audio18SW2000
No current priceFs32 Hz –
Qts0.45 +7%
Vas289.9 L −12%, better
BL22.1 T·m +5%
Xmax9.6 mm +63%, better
Sensitivity95.2 dB −0.8
Dayton Audio18SW1200F-8
No current priceFs32 Hz –
Qts0.40 −5%
Vas287.7 L −13%, better
BL24.4 T·m +16%, better
Xmax10.6 mm +80%, better
Sensitivity95.5 dB −0.5
P.Audio18NT-100XB
No current priceFs35 Hz +9%
Qts0.41 –
Vas171.3 L −48%, better
BL24.6 T·m +16%, better
Xmax7 mm +19%, better
Sensitivity94.4 dB −1.6
PeerlessFSL-1830R03-08
No current priceFs32 Hz –
Qts0.36 −14%, better
Vas338 L –
BL21.4 T·m –
Xmax8.7 mm +47%, better
Sensitivity96.8 dB +0.8
No current price
Fs33 Hz +3%
Qts0.39 −8%
Vas257 L −22%, better
BL22.4 T·m +6%
Xmax12 mm +103%, better
Sensitivity95.6 dB –
CelestionFTR18-4080F
No current priceFs33 Hz –
Qts0.31 −26%, better
Vas281.3 L −15%, better
BL22.5 T·m +6%
Xmax6 mm –
Sensitivity96.6 dB +0.6
MonacorFTR18-4080HDX/8
No current priceFs39 Hz +23%, worse
Qts0.43 –
Vas174.9 L −47%, better
BL21.3 T·m –
Xmax10.1 mm +71%, better
Sensitivity95.6 dB –
P.Audio18BM-1000S
No current priceFs35 Hz +9%
Qts0.40 −5%
Vas212.1 L −36%, better
BL23.8 T·m +13%, better
Xmax8 mm +36%, better
Sensitivity95.3 dB −0.7
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lautsprecherteile | £123.79, the lowest price | 8 in stock | Visit shop at Lautsprecherteile |
