Overview
LF Driver18PS series
B&C
B&C 18PS100
B&C 18PS100 is a 18" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 30Hz, Qts 0.39, Vas 245L, Xmax 8mm, sensitivity 94.1dB, plus 968cm³ Vd and 73 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £205.00.
Size
18"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.1dB
95.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
73
Either alignment
Vd
968cm³

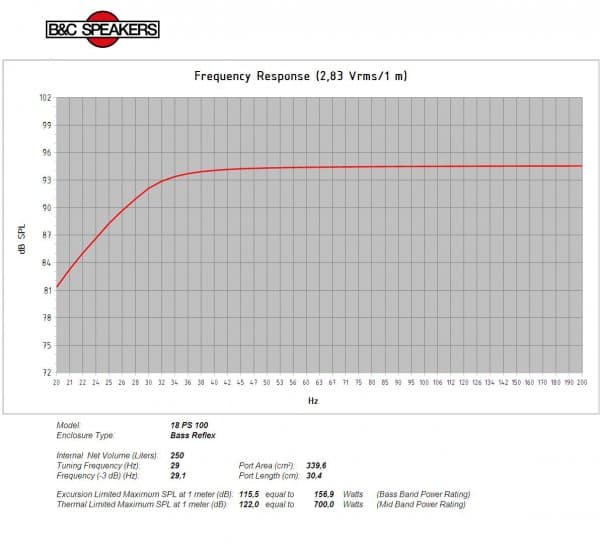

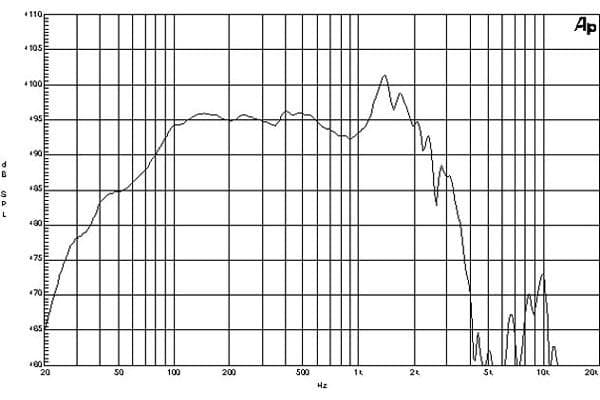

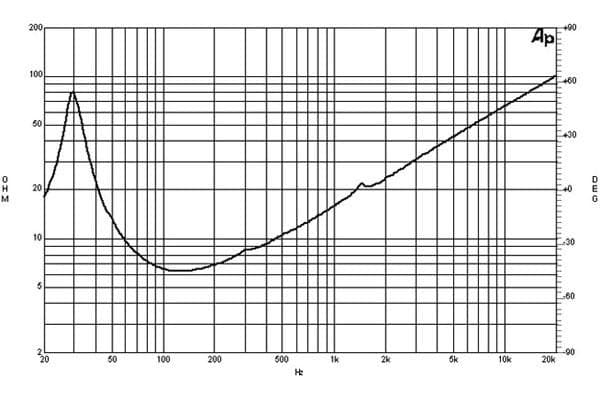

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs30Hz
Qts0.39
Qes0.41
Qms4.6
Vas245.0L
Re5.3Ω
Le2.10mH
BL22.5Tm
Sd1210cm²
Mms202g
Xmax8.0mm
SPL94dB
Power700W
Power Nominal700W
Impedance8Ω
Min Impedance6.3Ω
F Low30Hz
F High1000Hz
Voice Coil100mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Other offers
7 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£205.00
inc VAT
20 in stock5-7 weeks
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£219.84
inc VAT
In stock
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£219.84
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£219.84
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£219.84
inc VAT
In stock
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£235.55
inc VAT
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£267.47
inc VAT
1 in stock
Best current price
Updated 11 Sept 2026
bluearan
£205.00
Avg £224.05£19.05 below avg (-8.5%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.2kg
Diameter460.0mm
Overall Depth197.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
Additional Manufacturer Specs
Bl22.5 Tm
Fs30 Hz
Le2.1 mH
Re5.3 Ω
Sd1210 cm² (187.6 in²)
Ebp73 Hz
Mms202 g
Qes0.41
Qms4.6
Qts0.39
Vas245 dm³ (8.6 ft³)
η01.6 %
ConeRCK18PS1008
Xmax8 mm
Xvar8 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth21 mm (0.83 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter460 mm (18 in)
Winding MaterialCopper
Magnetic Gap Depth10.5 mm (0.41 in)
Recommended Tuning29 Hz
Bolt Circle Diameter440 mm (17.3 in)
Recommended Enclosure250 dm³ (8.83 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter422 mm (16.6 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver9.5 dm³ (0.33 ft³)
