Sica 18 S 4 PL 8Ω
8 Ω
No current price
- Fs
- 36Hz
- Xmax
- 8mm
- SPL
- 95dB
- Pe
- 1200W
- BL
- 23.5T·m
- Vd
- 931cm³
- Qts
- 0.39
- Vas
- 189L

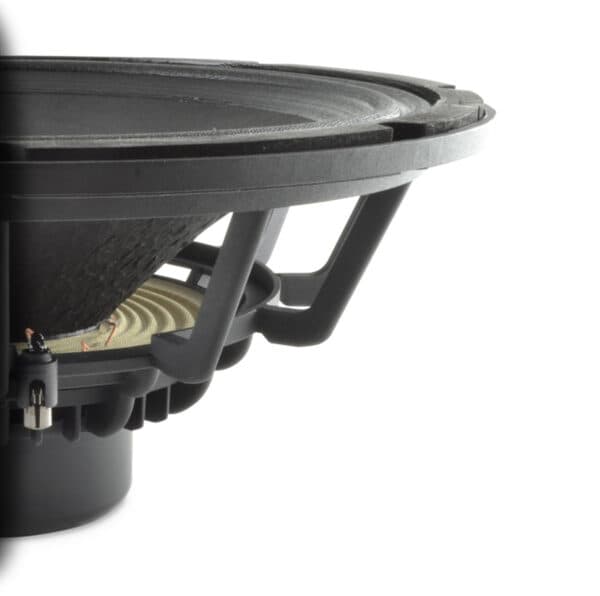

Sica 18 S 4 PL is an 18-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.39, Vas 189 L, Xmax 8 mm, sensitivity 95.3 dB, plus 931 cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.39
- Qes
- 0.42
- Qms
- 6.6
- Vas
- 189L
- Re
- 5.2Ω
- Le
- 1.35mH
Motor and cone
- BL
- 23.5T·m
- Sd
- 1164cm²
- Mms
- 197g
- Xmax
- 8mm
- Vd †
- 931cm³
- Voice coil
- 100mm
- Flux density
- 1.21T
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 97.3dB
- Power
- 1200W
- Impedance
- 8Ω
- EBP †
- 86 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 211mm
- Weight
- 8.3kg
Other published values
- Cms
- 0.10mm/N
- Power Program
- 2400
Sensitivity shows 95.3 dB, calculated from the T/S values. Sica publishes 97.3 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 18″
- BL
- 23.5T·m
- Fs
- 36Hz
- Le
- 1.35mH
- Re
- 5.2Ω
- Sd
- 1164cm²
- Cms
- 0.10mm/N
- Mms
- 197g
- Qes
- 0.42
- Qms
- 6.6
- Qts
- 0.39
- SPL
- 95.3dB
- Vas
- 189L
- Xmax
- 8mm
- Power
- 1200W
- Impedance
- 8Ω
- Flux density
- 1.21T
- Sensitivity
- 97.3dB
- Power Program
- 2400
- Calculated sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 97.3dB
- Voice coil
- 100mm
- Weight
- 8.3kg
- Diameter
- 462mm
- Depth
- 211mm
- Cutout
- 417mm
- Bolt circle
- 441mm
