LF DriverXL series
FaitalPRO

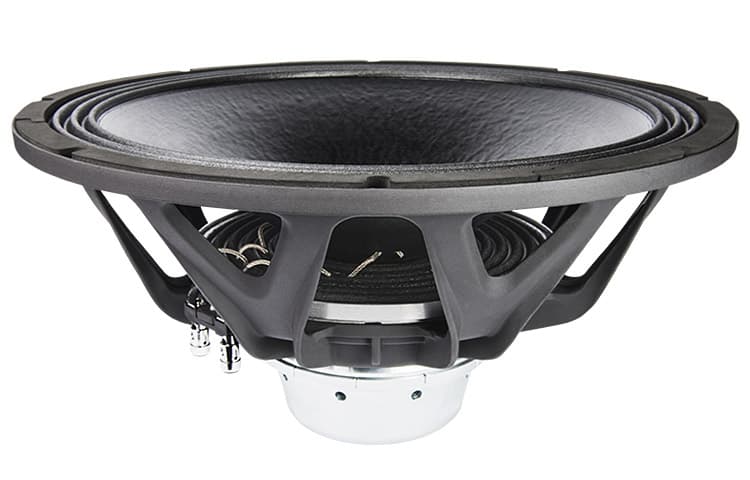

FaitalPRO 18XL1800
FaitalPRO 18XL1800 is a 18" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 29Hz, Qts 0.40, Vas 215.5L, Xmax 20.2mm, sensitivity 93dB, plus 2394cm³ Vd and 69 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £425.00.
Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
93.0dB
95.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
69
Either alignment
Vd
2394cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees214 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
214 plotted pointsMedium confidence716 selected pixels of 980 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,624 selected pixels of 1,837 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,511 selected pixels of 1,513
T/S Parameters
Valid
Fs29Hz
Qts0.40
Qes0.42
Qms9.9
Vas215.5L
Re5.3Ω
Le2.04mH
BL25.4Tm
Sd1187cm²
Mms275g
Xmax20.2mm
SPL93dB
Power1600W
Impedance8Ω
F Low30Hz
F High1600Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£425.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.2kg
Diameter460.0mm
Overall Depth233.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
18XL1800
18"
Best current price
£425.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
80%
Similarity
£427.00
Precision Devices
PD.1845-2N
18"
Xmax18mm-11%
Qts0.39-3%
BL27Tm+6%
Vas157L-27%
Qes0.4-5%
50%
Similarity
11% more£470.84
Eighteen Sound
18NLW4500
18"
Higher price
Xmax15.3mm-24%
Qts0.33-17%
BL30.3Tm+19%
Vas151L-30%
Qes0.34-19%
72%
Similarity
15% more£486.84
Eighteen Sound
18NLS4000
18"
Higher price
Xmax22.3mm+11%
Qts0.35-13%
BL24.2Tm-5%
Vas168L-22%
Qes0.36-14%
68%
Similarity
26% more£535.72
Eminence
NSW4018-8
18"
Higher price
Xmax15.2mm-25%
Qts0.38-5%
BL28.2Tm+11%
Vas164.5L-24%
Qes0.39-7%
54%
Similarity
29% more£550.00
Eighteen Sound
18NTLW5000
18"
Higher price
Xmax17.5mm-13%
Qts0.32-20%
BL31.3Tm+23%
Vas176L-18%
Qes0.33-21%
78%
Similarity
BMS
18N860
18"
Xmax19mm-6%
Qts0.37-8%
BL24.9Tm-2%
Vas304L+41%
Qes0.4-5%
75%
Similarity
SB Audience
NERO-18SW1900D
18"
Xmax17.5mm-13%
Qts0.42+5%
BL28.5Tm+12%
Vas157.9L-27%
Qes0.43+2%
73%
Similarity
Beyma
118LEX16ND8
18"
Xmax14.5mm-28%
Qts0.43+7%
BL24.5Tm-4%
Vas231L+7%
Qes0.45+7%
71%
Similarity
Dayton Audio
SS18-22
18"
Xmax26mm+29%
Qts0.37-8%
BL29.2Tm+15%
Vas224L+4%
Qes0.420%
68%
Similarity
BMS
18N862
18"
Xmax19mm-6%
Qts0.34-15%
BL25.5Tm0%
Vas312L+45%
Qes0.36-14%
65%
Similarity
RCF
LF18N408
18"
Xmax15mm-26%
Qts0.33-17%
BL25.7Tm+1%
Vas193L-10%
Qes0.36-14%
Image unavailable
61%
Similarity
Precision Devices
PD.1845-1N
18"
Xmax16mm-21%
Qts0.32-19%
BL26.4Tm+4%
Vas179L-17%
Qes0.33-21%
