LF DriverNERO series
SB Audience
SB Audience NERO-18SW1900D
SB Audience NERO-18SW1900D is a 18" 5.2 ohm LF driver rated at 3800W RMS. The validated T/S data includes Fs 34Hz, Qts 0.42, Vas 157.9L, Xmax 17.5mm, sensitivity 93.6dB, plus 2199cm³ Vd and 79 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
5.2Ω
RMS Power
3800W
Sensitivity
93.6dB
EBP
79
Either alignment
Vd
2199cm³

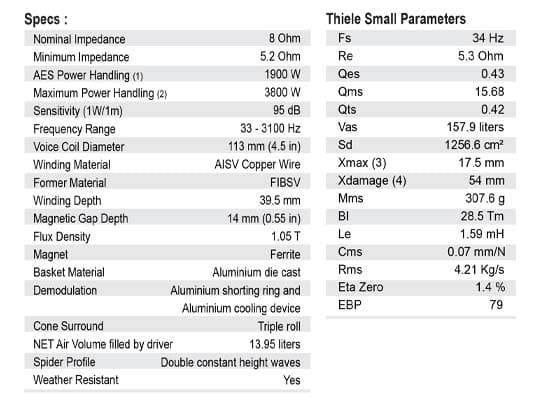

T/S Parameters
Valid
Fs34Hz
Qts0.42
Qes0.43
Qms15.7
Vas157.9L
Re5.3Ω
Le1.59mH
BL28.5Tm
Sd1257cm²
Mms308g
Xmax17.5mm
SPL94dB
Power3800W
Impedance5Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

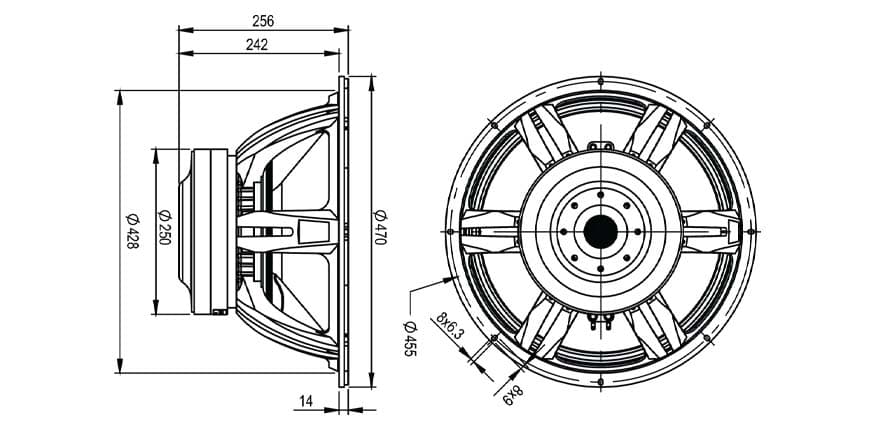

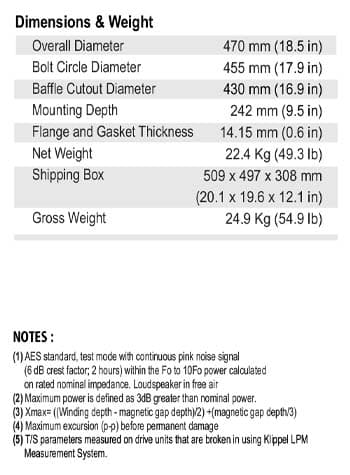

Dimensions & Physical
Weight22.4kg
Diameter470.0mm
Cutout Diameter430.0mm
Bolt Circle Diameter455.0mm
