LF DriverFTR18 series
Celestion

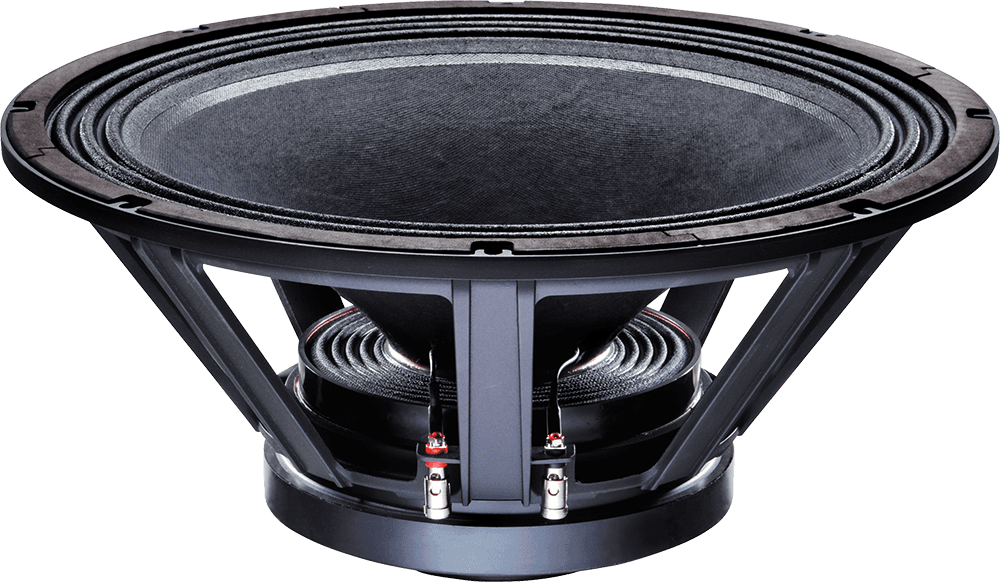

Celestion FTR18-4080HDX
Celestion FTR18-4080HDX is a 18" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 39Hz, Qts 0.43, Vas 174.9L, Xmax 10.1mm, sensitivity 95.6dB, plus 1145cm³ Vd and 84 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £237.20.
Size
18"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.6dB
EBP
84
Either alignment
Vd
1145cm³

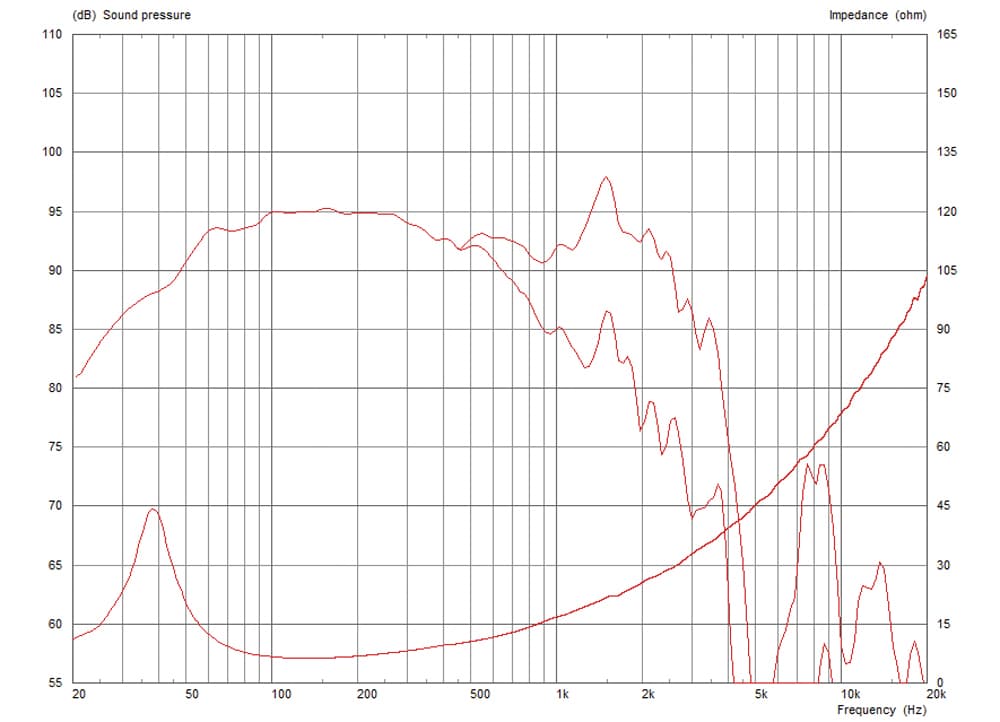

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence213 selected pixels of 375
T/S Parameters
Valid
Fs39Hz
Qts0.43
Qes0.47
Qms5.4
Vas174.9L
Re5.0Ω
Le1.79mH
BL21.3Tm
Sd1134cm²
Mms172g
Xmax10.1mm
SPL96dB
Power1000W
Impedance8Ω
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Best current price
£237.20
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.8kg
Diameter452.0mm
Overall Depth205.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter440.0mm
