LF DriverPD series
Precision Devices

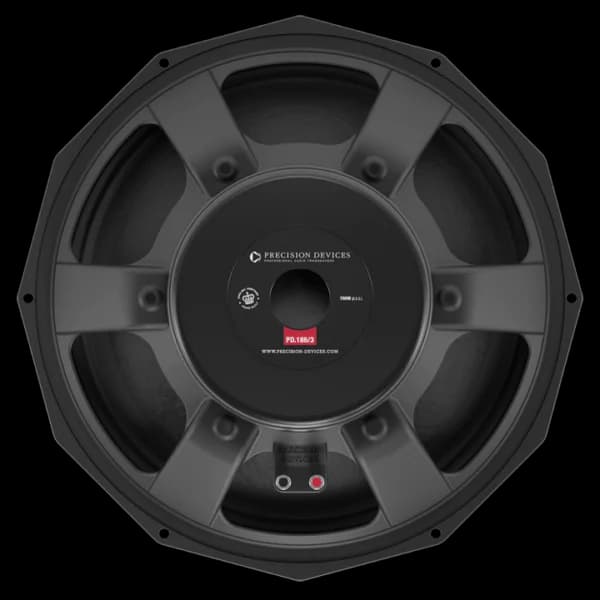

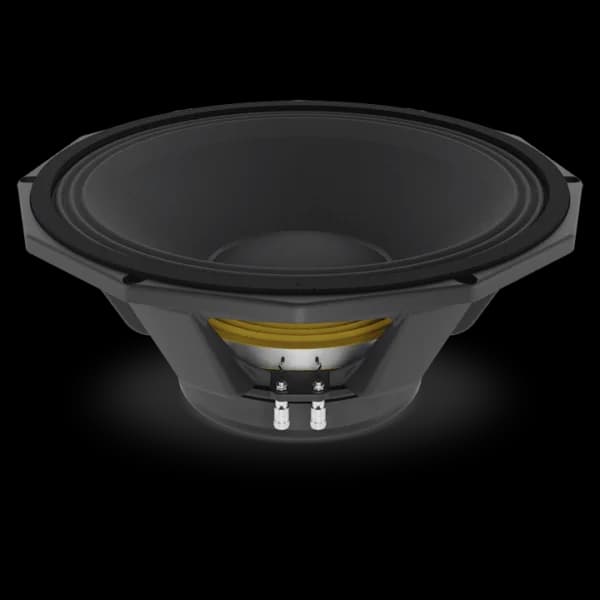

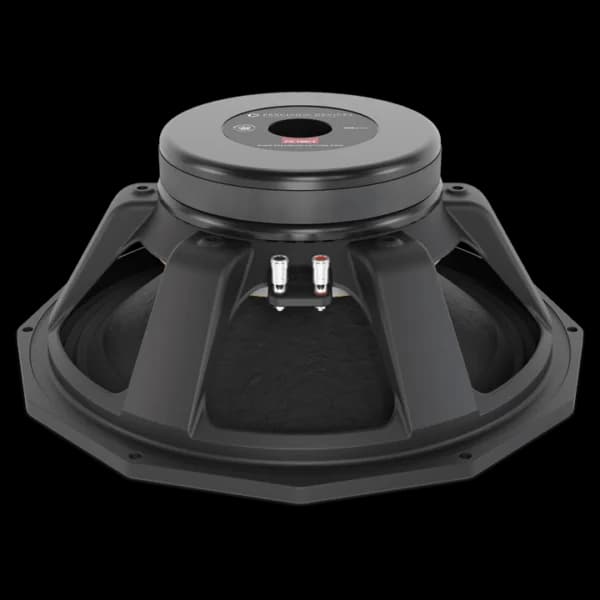

Precision Devices PD.186/3
Precision Devices PD.186/3 is a 18" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 34Hz, Qts 0.52, Vas 192.2L, Xmax 10.5mm, sensitivity 93.5dB, plus 1191cm³ Vd and 62 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
700W
Sensitivity
93.5dB
95.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
62
Either alignment
Vd
1191cm³
T/S Parameters
Valid
Fs34Hz
Qts0.52
Qes0.55
Qms10.8
Vas192.2L
Re6.2Ω
Le1.95mH
BL22.2Tm
Sd1134cm²
Mms204g
Xmax10.5mm
SPL94dB
Power700W
Impedance8Ω
F Low30Hz
F High2000Hz
Voice Coil127mm
Flux Density0.95T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight15.1kg
Diameter474.0mm
Overall Depth175.0mm
Cutout Diameter415.0mm
Bolt Circle Diameter455.0mm
