CIARE CSD184-22
CIARE CSD184-22 is a 18" 2 ohm LF driver rated at 2000W RMS. The validated T/S data includes Fs 37Hz, Qts 0.53, Vas 141L, Xmax 13mm, sensitivity 92.9dB, plus 1435cm³ Vd and 64 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
2Ω
RMS Power
2000W
Sensitivity
92.9dB
96.0dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
64
Either alignment
Vd
1435cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence892 selected pixels of 1,056
T/S Parameters
Valid
Fs37Hz
Qts0.53
Qes0.58
Qms5.9
Vas141.0L
Re3.5Ω
Le0.69mH
BL18.5Tm
Sd1104cm²
Mms246g
Xmax13.0mm
SPL93dB
Power2000W
Power Nominal1000W
Impedance2Ω
F Low20Hz
F High200Hz
Voice Coil102mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight17.0kg
Diameter460.0mm
Overall Depth221.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter440.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CSD184-22
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
10 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
PRV Audio
18SW2400
18"
Xmax12.5mm-4%
Qts0.56+6%
BL22.5Tm+21%
Vas192.8L+37%
Qes0.580%
71%
Similarity
Fane
IMPERIUM 18XL
18"
Xmax10.5mm-19%
Qts0.530%
BL20.4Tm+10%
Vas205L+45%
Qes0.56-3%
66%
Similarity
£267.00

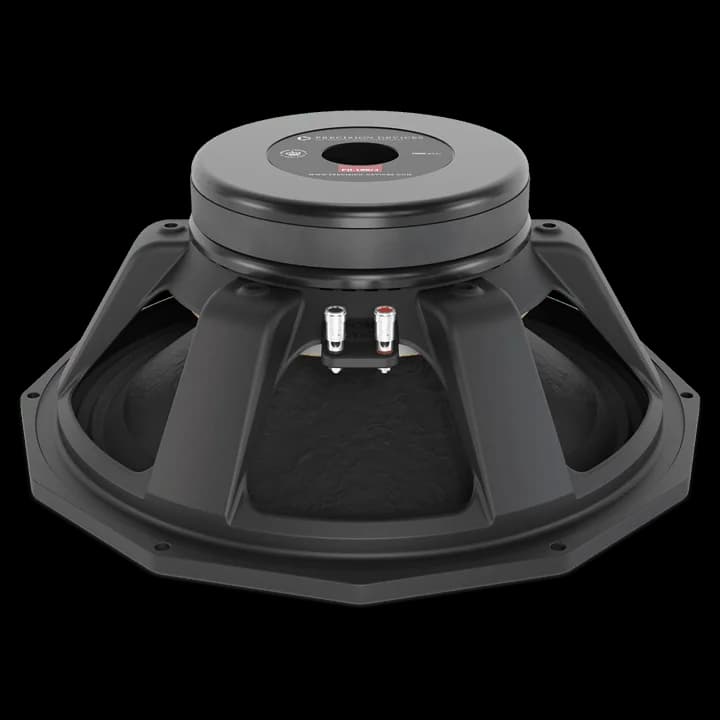

Precision Devices
PD.186/3
18"
Xmax10.5mm-19%
Qts0.52-2%
BL22.2Tm+20%
Vas192.2L+36%
Qes0.55-5%
64%
Similarity

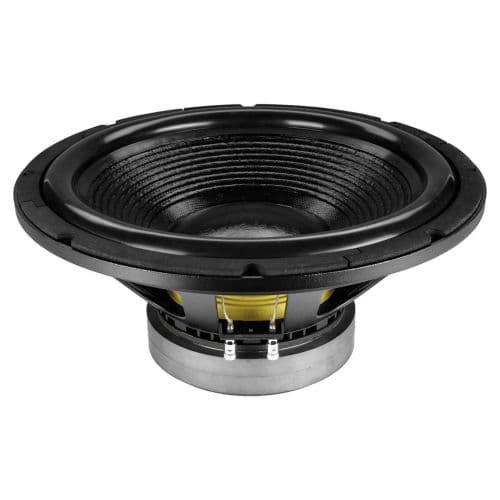

CIARE
18.00SW
18"
Xmax14mm+8%
Qts0.61+15%
BL20Tm+8%
Vas94L-33%
Qes0.7+21%
63%
Similarity
P.Audio
C18-1000-V4
18"
Xmax9.5mm-27%
Qts0.56+5%
BL22.5Tm+22%
Vas183.7L+30%
Qes0.580%
57%
Similarity

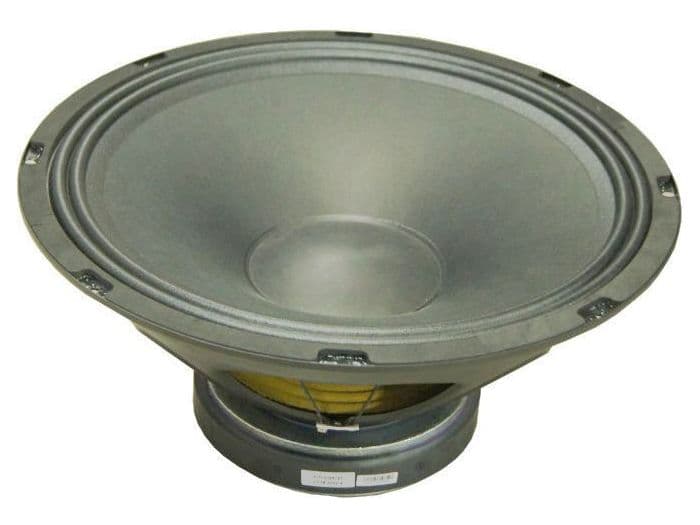

Peerless
