Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespPeerless FSL-1830R09-08 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFSL series
Peerless

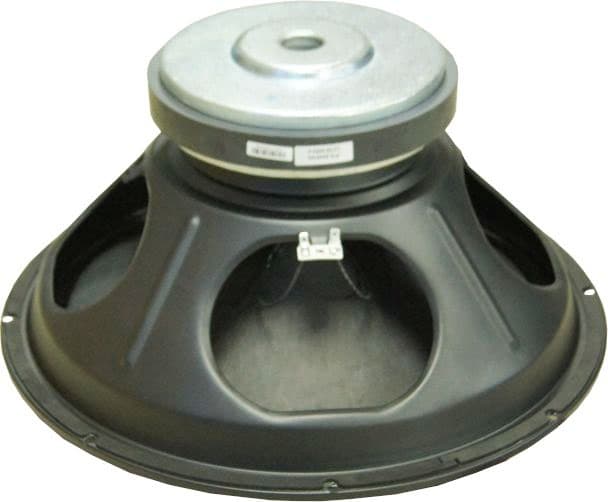

Peerless FSL-1830R09-08
Peerless FSL-1830R09-08 is a 18" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 33Hz, Qts 0.58, Vas 220L, Xmax 15.9mm, sensitivity 93.2dB, plus 1797cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
600W
Sensitivity
93.2dB
EBP
55
Either alignment
Vd
1797cm³
T/S Parameters
Valid
Fs33Hz
Qts0.58
Qes0.60
Qms15.9
Vas220.0L
Re6.8Ω
Le1.42mH
BL21.1Tm
Sd1130cm²
Mms189g
Xmax15.9mm
SPL93dB
Power600W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Peerless
FSL-1830R09-08
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
PRV Audio
18SW2400
18"
Xmax12.5mm-21%
Qts0.56-3%
BL22.5Tm+7%
Vas192.8L-12%
Qes0.58-4%
67%
Similarity
CIARE
CSD184-22
18"
Xmax13mm-18%
Qts0.53-9%
BL18.5Tm-12%
Vas141L-36%
Qes0.58-4%
65%
Similarity
CIARE
18.00SW
18"
Xmax14mm-12%
Qts0.61+5%
BL20Tm-5%
Vas94L-57%
Qes0.7+16%
57%
Similarity
£187.71
SB Audience
ROSSO-18SW800
18"
Xmax11.3mm-29%
Qts0.46-21%
BL21Tm0%
Vas258.1L+17%
Qes0.48-20%
54%
Similarity
SB Audience
ROSSO-18SW1000D
18"
Xmax13.7mm-14%
Qts0.46-21%
BL25.8Tm+22%
Vas164.3L-25%
Qes0.49-19%
43%
Similarity
Peerless
FCP-1840R03-08
18"
Xmax12.3mm-23%
Qts0.47-19%
BL26.8Tm+27%
Vas128L-42%
Qes0.49-19%
