Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Audience BIANCO-18SW500 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverBIANCO series
SB Audience
SB Audience BIANCO-18SW500
SB Audience BIANCO-18SW500 is a 18" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 30Hz, Qts 0.52, Vas 334.8L, Xmax 9.2mm, sensitivity 94.3dB, plus 1169cm³ Vd and 57 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £151.79.
Size
18"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.3dB
EBP
57
Either alignment
Vd
1169cm³
T/S Parameters
Valid
Fs30Hz
Qts0.52
Qes0.53
Qms19.0
Vas334.8L
Re5.7Ω
Le1.64mH
BL19.8Tm
Sd1269cm²
Mms195g
Xmax9.2mm
SPL94dB
Power500W
Impedance8Ω
Min Impedance5.6Ω
F Low30Hz
F High3100Hz
Voice Coil99mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£171.79
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
leanaudio
£151.79
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

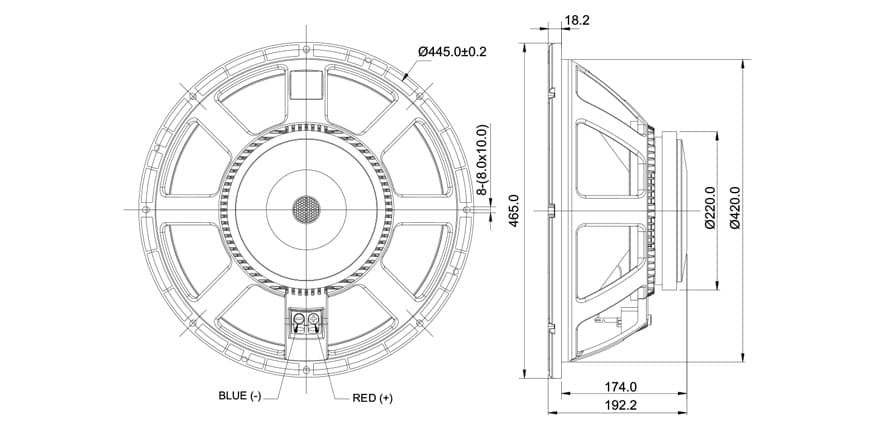

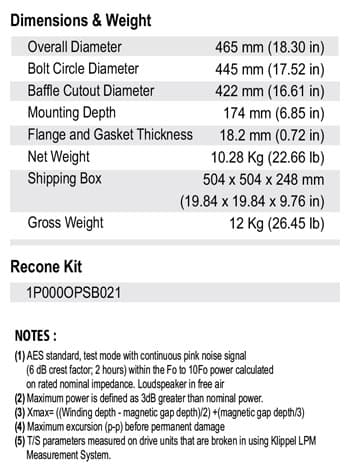

Dimensions & Physical
Weight10.3kg
Diameter465.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter445.0mm
