- Net volume
- 200L
- Tuning
- 38Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
18-inch LF driver · 850 W
Eighteen Sound 18W1300 8Ω
8 Ω · 38–3300 Hz
No current price
- Fs
- 35Hz
- Xmax
- 8.5mm
- SPL
- 98dB
- Pe
- 850W
- BL
- 20.4T·m
- Vd
- 1041cm³
- Qts
- 0.33
- Vas
- 336L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

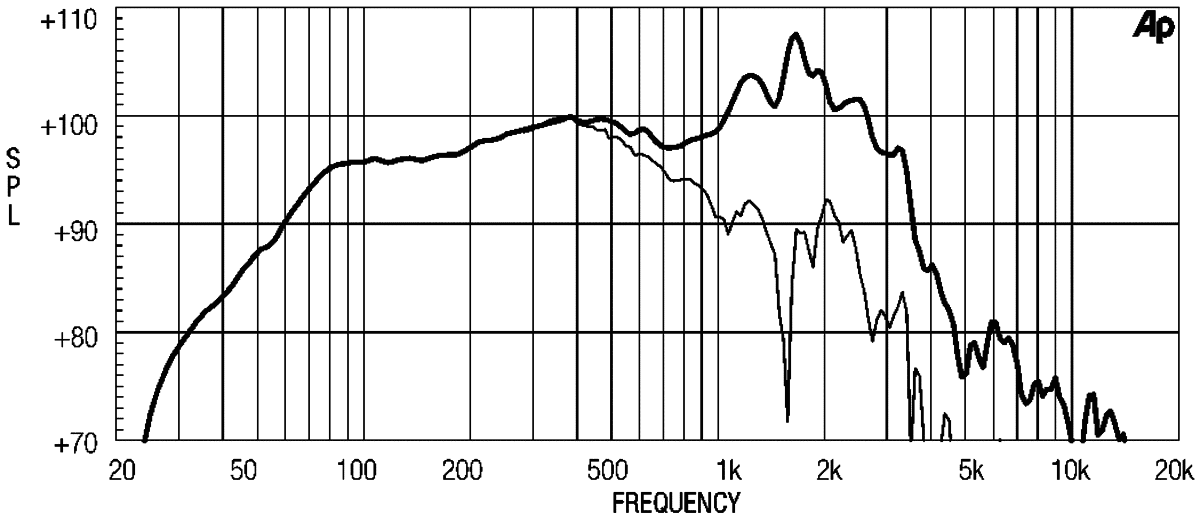

Frequency response
240 plotted pointsMedium confidence3,859 selected pixels of 4,367 - Trace datasheet-response-trace-poc/v1
impedance

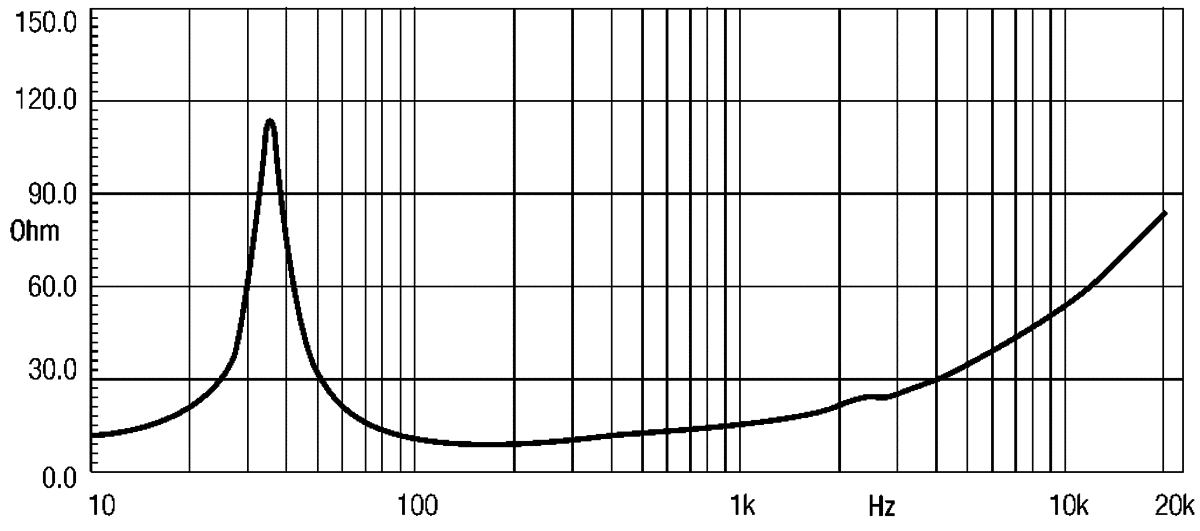

Impedance response
240 plotted pointsMedium confidence1,825 selected pixels of 2,124
Published graphs
Eighteen Sound 18W1300 is an 18-inch 8 ohm LF driver rated at 850 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.33, Vas 336 L, Xmax 8.5 mm, sensitivity 98.2 dB, plus 1041 cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 5
- Vas
- 336L
- Re
- 5Ω
- Le
- 1.48mH
Motor and cone
- BL
- 20.4T·m
- Sd
- 1225cm²
- Mms
- 129g
- Xmax
- 8.5mm
- Vd †
- 1041cm³
Power and response
- Sensitivity †
- 98.2dB
- Manufacturer sensitivity
- 99.5dB
- Power
- 850W
- Nominal power
- 850W
- Impedance
- 8Ω
- Range
- 38–3300Hz
- EBP †
- 100 · Sealed or vented
Size and mounting
- Diameter
- 462mm
- Cutout
- 416mm
- Bolt circle
- 438mm
- Depth
- 211mm
- Weight
- 13kg
Other published values
- Power Program
- 1200
Sensitivity shows 98.2 dB, calculated from the T/S values. Eighteen Sound publishes 99.5 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 18″
- BL
- 20.4T·m
- Fs
- 35Hz
- Le
- 1.48mH
- Re
- 5Ω
- Sd
- 1225cm²
- Mms
- 129g
- Qes
- 0.35
- Qms
- 5
- Qts
- 0.33
- SPL
- 98.2dB
- Vas
- 336L
- Xmax
- 8.5mm
- Power
- 850W
- Impedance
- 8Ω
- Sensitivity
- 99.5dB
- Low limit
- 38Hz
- Nominal power
- 850W
- Power Program
- 1200
- Calculated sensitivity †
- 98.2dB
- High limit
- 3300Hz
- Manufacturer sensitivity
- 99.5dB
- Weight
- 13kg
- Diameter
- 462mm
- Depth
- 211mm
- Cutout
- 416mm
- Bolt circle
- 438mm
02
Designs
What Eighteen Sound suggests for the 18W1300. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 18W1300 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 18W1300. Clear differences are green when better and red when worse.
This driver18W1300
Best price
–
Fs
35 Hz
Qts
0.33
Vas
336 L
BL
20.4 T·m
Xmax
8.5 mm
Sensitivity
98.2 dB
Power
850 W
Dayton AudioPA460-8
£130.89Fs28 Hz −19%, better
Qts0.33 –
Vas402 L +20%, worse
BL22.3 T·m +9%
Xmax6 mm −29%, worse
Sensitivity96.3 dB −1.9
B&C18TBX100
£184.81Fs34 Hz –
Qts0.35 +6%
Vas212 L −37%, better
BL25.5 T·m +25%, better
Xmax9 mm +6%
Sensitivity95.6 dB −2.6, worse
B&C18PS100
£199.28Fs30 Hz −14%, better
Qts0.39 +18%, worse
Vas245 L −27%, better
BL22.5 T·m +10%, better
Xmax8 mm −6%
Sensitivity94.1 dB −4.1, worse
FaitalPRO18FH500
£213.51Fs30 Hz −14%, better
Qts0.35 +6%
Vas417.9 L +24%, worse
BL19 T·m −7%
Xmax9.3 mm +9%
Sensitivity97 dB −1.2
CelestionFTR18-4080FD
£219.38Fs25 Hz −28%, better
Qts0.29 −13%, better
Vas408.7 L +22%, worse
BL22.8 T·m +12%, better
Xmax8.5 mm –
Sensitivity95.4 dB −2.8, worse
FaitalPRO18FH510
£221.89Fs30 Hz −14%, better
Qts0.29 −12%, better
Vas411.9 L +23%, worse
BL21 T·m –
Xmax9.3 mm +9%
Sensitivity97.7 dB −0.5
RCFL18P300
£225.00Fs33 Hz −6%
Qts0.33 –
Vas226 L −33%, better
BL23.5 T·m +15%, better
Xmax8 mm −6%
Sensitivity95.8 dB −2.4, worse
B&C18RBX100
£226.58Fs40 Hz +14%, worse
Qts0.34 +3%
Vas220 L −35%, better
BL25.1 T·m +23%, better
Xmax10 mm +18%, better
Sensitivity98 dB –
Beyma18P1000FEV2S
£249.00Fs33 Hz −6%
Qts0.32 −3%
Vas230 L −32%, better
BL26.8 T·m +31%, better
Xmax8 mm −6%
Sensitivity96 dB −2.2, worse
RCFLF18G401
£252.42Fs33 Hz −6%
Qts0.29 −12%, better
Vas268 L −20%, better
BL24.6 T·m +21%, better
Xmax9 mm +6%
Sensitivity97.1 dB −1.1
Eighteen Sound18LW2400
£272.63Fs35 Hz –
Qts0.31 −6%
Vas230 L −32%, better
BL25.6 T·m +25%, better
Xmax9.5 mm +12%, better
Sensitivity96.9 dB −1.3
Eighteen Sound18LW1400
£274.64Fs31 Hz −11%, better
Qts0.29 −12%, better
Vas297 L −12%, better
BL24.7 T·m +21%, better
Xmax9 mm +6%
Sensitivity96.6 dB −1.6
Eighteen Sound18LW2420
£279.00Fs32 Hz −9%
Qts0.33 –
Vas252 L −25%, better
BL25.3 T·m +24%, better
Xmax10 mm +18%, better
Sensitivity95.8 dB −2.4, worse
FaneCOLOSSUS 18SB
£280.00Fs36 Hz –
Qts0.35 +5%
Vas199 L −41%, better
BL24 T·m +18%, better
Xmax8.3 mm –
Sensitivity96.1 dB −2.1, worse
RCFL18P400
£289.00Fs29 Hz −17%, better
Qts0.28 −15%, better
Vas340 L –
BL24.6 T·m +21%, better
Xmax9 mm +6%
Sensitivity96.6 dB −1.6
Dayton Audio18SW1200N-8
£301.39Fs32 Hz −9%
Qts0.33 –
Vas253.6 L −25%, better
BL27.6 T·m +35%, better
Xmax9.1 mm +7%
Sensitivity95.8 dB −2.4, worse
BMS18S430V2
£316.72Fs31 Hz −11%, better
Qts0.34 +3%
Vas262 L −22%, better
BL23.5 T·m +15%, better
Xmax8 mm −6%
Sensitivity95.4 dB −2.8, worse
BMS18N830V2
£347.59Fs31 Hz −11%, better
Qts0.37 +12%, worse
Vas262 L −22%, better
BL22.4 T·m +10%
Xmax8 mm −6%
Sensitivity95 dB −3.2, worse
Dayton AudioRSS460HO-4
£442.94Fs19 Hz −46%, better
Qts0.32 −3%
Vas272 L −19%, better
BL23.4 T·m +15%, better
Xmax12.8 mm +50%, better
Sensitivity89.2 dB −9, worse
BMS18N862
£568.53Fs25 Hz −28%, better
Qts0.34 +3%
Vas312 L −7%
BL25.5 T·m +25%, better
Xmax19 mm +124%, better
Sensitivity93.4 dB −4.8, worse
Oberton18B35
No current priceFs32 Hz −9%
Qts0.32 –
Vas333.6 L –
BL19.3 T·m −5%
Xmax9 mm +6%
Sensitivity97 dB −1.2
PeerlessFSL-1830R03-08
No current priceFs32 Hz −9%
Qts0.36 +9%
Vas338 L –
BL21.4 T·m +5%
Xmax8.7 mm –
Sensitivity96.8 dB −1.4
Precision DevicesPD.184C002
No current priceFs40 Hz +14%, worse
Qts0.34 +3%
Vas268 L −20%, better
BL21 T·m –
Xmax9.7 mm +14%, better
Sensitivity98.8 dB +0.6
Oberton18B450
No current priceFs34 Hz –
Qts0.34 +4%
Vas241.6 L −28%, better
BL22.1 T·m +8%
Xmax7.3 mm −15%, worse
Sensitivity96.4 dB −1.8
FaneCOLOSSUS 18-800N
No current priceFs38 Hz +9%
Qts0.31 −7%
Vas217 L −35%, better
BL24 T·m +18%, better
Xmax8 mm −6%
Sensitivity97.7 dB −0.5
FaneCOLOSSUS 18XB
No current priceFs33 Hz −6%
Qts0.34 –
Vas236 L −30%, better
BL25.9 T·m +27%, better
Xmax7.5 mm −12%, worse
Sensitivity95.8 dB −2.4, worse
CelestionCF1840H
No current priceFs39 Hz +10%, worse
Qts0.35 +6%
Vas196.7 L −41%, better
BL17.4 T·m −15%, worse
Xmax8 mm −6%
Sensitivity96.7 dB −1.5
CelestionFTR18-4080F
No current priceFs33 Hz −7%
Qts0.31 −6%
Vas281.3 L −16%, better
BL22.5 T·m +10%, better
Xmax6 mm −29%, worse
Sensitivity96.6 dB −1.6
RCFLF18G908
No current priceFs33 Hz −6%
Qts0.29 −12%, better
Vas268 L −20%, better
BL24.6 T·m +21%, better
Xmax9 mm +6%
Sensitivity97.1 dB −1.1
REDCATT186FIND
No current priceFs33 Hz −6%
Qts0.35 +6%
Vas174.2 L −48%, better
BL30.2 T·m +48%, better
Xmax8.4 mm –
Sensitivity94.4 dB −3.8, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
