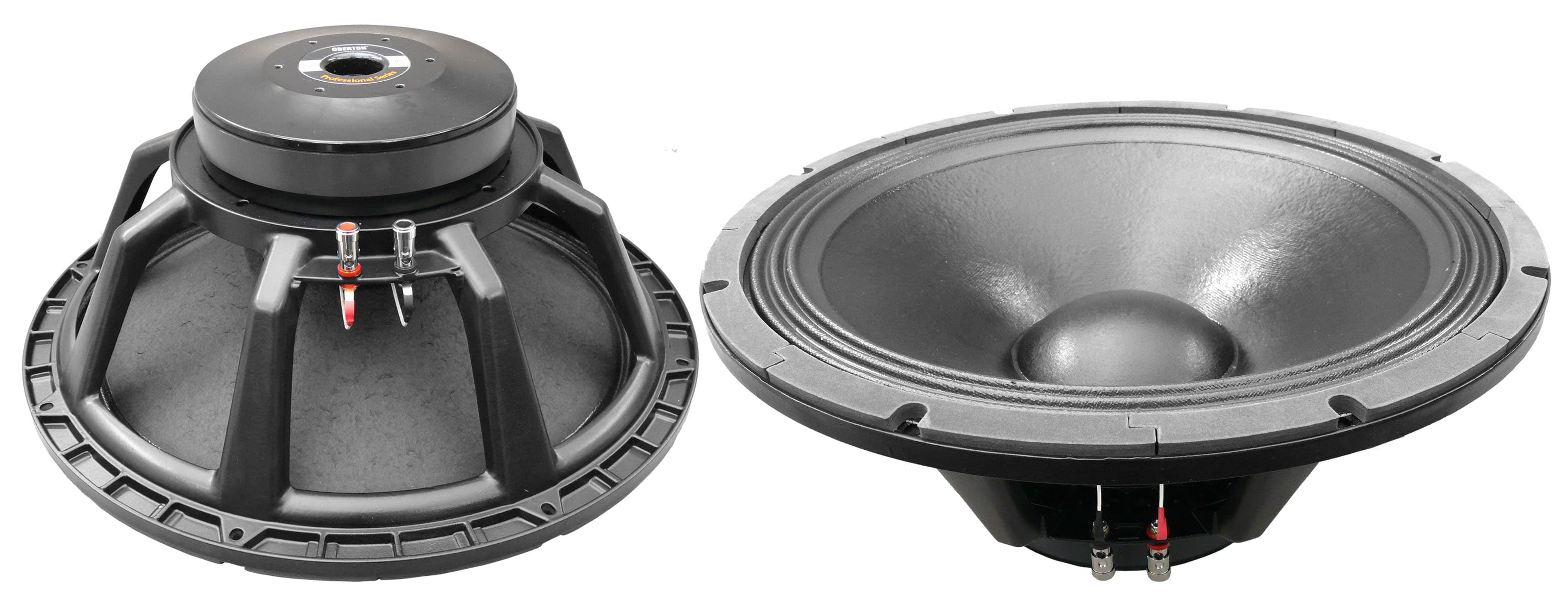

18-inch LF driver · 18B series · 88 mm voice coil · 700 W

Oberton 18B35 8Ω

Name: Oberton 18B35 8 Ohm
Brand: Oberton
SKU: 18B35

8 Ω · 32–1000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 32Hz
Xmax: 9mm
SPL: 97dB
Pe: 700W
BL: 19.3T·m
Vd: 999cm³
Qts: 0.32
Vas: 334L

See all 28 specs

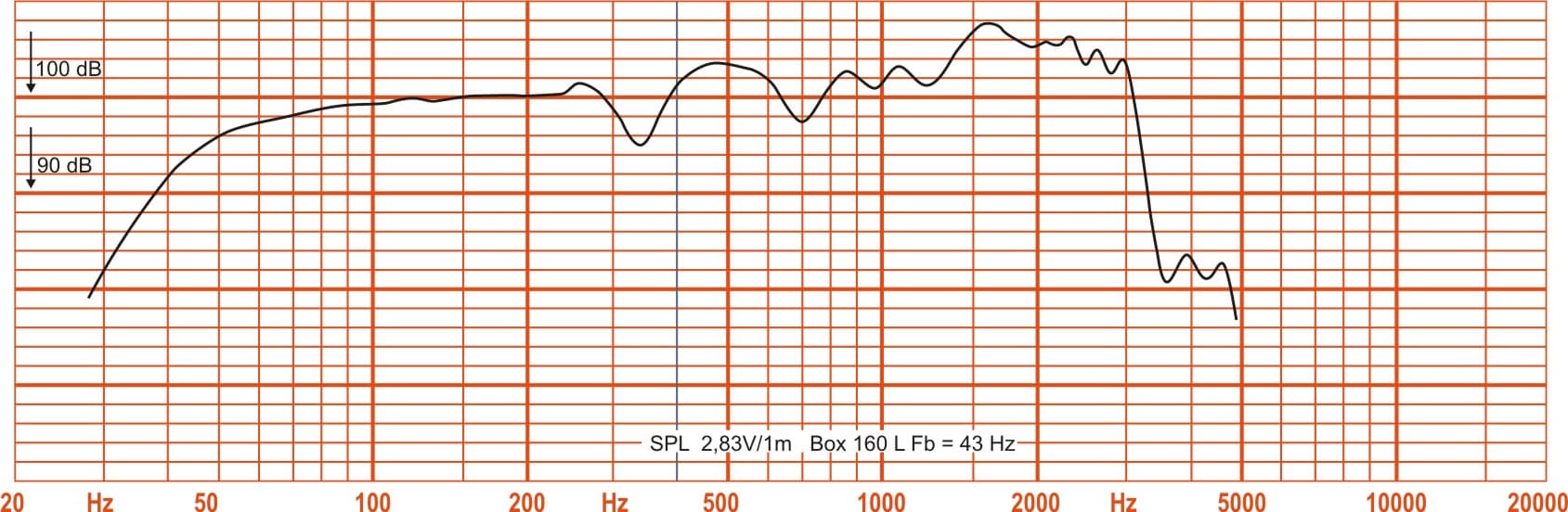

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 18B35 is an 18-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.32, Vas 333.6 L, Xmax 9 mm, sensitivity 97 dB, plus 999 cm³ Vd and 94 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 32Hz
Qts: 0.32
Qes: 0.34
Qms: 8.1
Vas: 333.6L
Re: 4.9Ω
Le: 0.61mH

Motor and cone

BL: 19.3T·m
Sd: 1110cm²
Mms: 130g
Xmax: 9mm
Vd †: 999cm³
Voice coil: 88mm
Flux density: 1.06T

Power and response

Sensitivity †: 97dB
Manufacturer sensitivity: 50dB
Power: 700W
Impedance: 8Ω
Min. impedance: 5.7Ω
Range: 32–1000Hz
EBP †: 94 · Sealed or vented

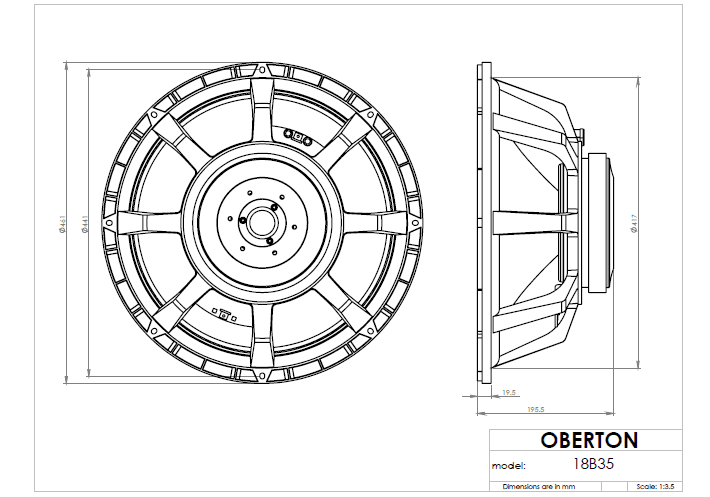

Size and mounting

Diameter: 461mm
Cutout: 417mm
Bolt circle: 441mm
Depth: 195.5mm
Weight: 10kg

Other published values

Cms: 0.19mm/N
Power Program: 1400

Sensitivity shows 97.0 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 47.0 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 18″

BL: 19.3T·m
Fs: 32Hz
Le: 0.61mH
Re: 4.9Ω
Sd: 1110cm²
Cms: 0.19mm/N
Mms: 130g
Qes: 0.34
Qms: 8.1
Qts: 0.32
SPL: 97dB
Vas: 333.6L
Xmax: 9mm
Power: 700W
Impedance: 8Ω
Flux density: 1.06T
Sensitivity: 50dB
Low limit: 32Hz
Power Program: 1400
Calculated sensitivity †: 97dB
High limit: 1000Hz
Manufacturer sensitivity: 50dB
Min. impedance: 5.7Ω
Voice coil: 88mm
Weight: 10kg
Diameter: 461mm
Depth: 195.5mm
Cutout: 417mm
Bolt circle: 441mm

Compare

Same-size drivers, compared with the 18B35. Clear differences are green when better and red when worse.

This driver18B35

Best price

–

32 Hz

Qts

0.32

Vas

333.6 L

19.3 T·m

Xmax

9 mm

Sensitivity

97 dB

Power

700 W

Dayton AudioPA460-8

£130.89

Fs28 Hz −11%

Qts0.33 –

Vas402 L +20%

BL22.3 T·m +15%

Xmax6 mm −33%

Sensitivity96.3 dB −0.7

SB AudienceBIANCO-18SW500

£151.79

Fs30 Hz −6%

Qts0.52 +60%

Vas334.8 L –

BL19.8 T·m –

Xmax9.2 mm –

Sensitivity94.3 dB −2.7

B&C18TBX100

£184.81

Fs34 Hz +7%

Qts0.35 +8%

Vas212 L −36%

BL25.5 T·m +32%

Xmax9 mm –

Sensitivity95.6 dB −1.4

FaitalPRO18FH500

£213.51

Fs30 Hz −6%

Qts0.35 +8%

Vas417.9 L +25%

BL19 T·m –

Xmax9.3 mm –

Sensitivity97 dB –

CelestionFTR18-4080FD

£219.38

Fs25 Hz −21%

Qts0.29 −12%

Vas408.7 L +23%

BL22.8 T·m +18%

Xmax8.5 mm −6%

Sensitivity95.4 dB −1.6

FaitalPRO18FH510

£221.89

Fs30 Hz −6%

Qts0.29 −10%

Vas411.9 L +23%

BL21 T·m +9%

Xmax9.3 mm –

Sensitivity97.7 dB +0.7

RCFL18P300

£225.00

Fs33 Hz +4%

Qts0.33 –

Vas226 L −32%

BL23.5 T·m +22%

Xmax8 mm −11%

Sensitivity95.8 dB −1.2

B&C18RBX100

£226.58

Fs40 Hz +26%

Qts0.34 +5%

Vas220 L −34%

BL25.1 T·m +30%

Xmax10 mm +11%

Sensitivity98 dB +1

FaitalPRO18HP1010

£247.01

Fs35 Hz +10%

Qts0.31 −4%

Vas225.9 L −32%

BL18.4 T·m −5%

Xmax9.8 mm +8%

Sensitivity96.8 dB –

Beyma18P1000FEV2S

£249.00

Fs33 Hz +4%

Qts0.32 –

Vas230 L −31%

BL26.8 T·m +39%

Xmax8 mm −11%

Sensitivity96 dB −1

RCFLF18G401

£252.42

Fs33 Hz +4%

Qts0.29 −10%

Vas268 L −20%

BL24.6 T·m +27%

Xmax9 mm –

Sensitivity97.1 dB –

Eighteen Sound18LW2400

£272.63

Fs35 Hz +10%

Qts0.31 −4%

Vas230 L −31%

BL25.6 T·m +32%

Xmax9.5 mm +6%

Sensitivity96.9 dB –

Eighteen Sound18LW1400

£274.64

Fs31 Hz –

Qts0.29 −10%

Vas297 L −11%

BL24.7 T·m +28%

Xmax9 mm –

Sensitivity96.6 dB –

Eighteen Sound18LW2420

£279.00

Fs32 Hz –

Qts0.33 –

Vas252 L −24%

BL25.3 T·m +31%

Xmax10 mm +11%

Sensitivity95.8 dB −1.2

FaneCOLOSSUS 18SB

£280.00

Fs36 Hz +13%

Qts0.35 +7%

Vas199 L −40%

BL24 T·m +24%

Xmax8.3 mm −8%

Sensitivity96.1 dB −0.9

RCFL18P400

£289.00

Fs29 Hz −9%

Qts0.28 −14%

Vas340 L –

BL24.6 T·m +27%

Xmax9 mm –

Sensitivity96.6 dB –

Dayton Audio18SW1200N-8

£301.39

Fs32 Hz –

Qts0.33 –

Vas253.6 L −24%

BL27.6 T·m +43%

Xmax9.1 mm –

Sensitivity95.8 dB −1.2

BMS18S430V2

£316.72

Fs31 Hz –

Qts0.34 +5%

Vas262 L −21%

BL23.5 T·m +22%

Xmax8 mm −11%

Sensitivity95.4 dB −1.6

BMS18N830V2

£347.59

Fs31 Hz –

Qts0.37 +14%

Vas262 L −21%

BL22.4 T·m +16%

Xmax8 mm −11%

Sensitivity95 dB −2

Dayton AudioRSS460HO-4

£442.94

Fs19 Hz −41%

Qts0.32 –

Vas272 L −18%

BL23.4 T·m +21%

Xmax12.8 mm +42%

Sensitivity89.2 dB −7.8

Eighteen Sound18W1300

No current price

Fs35 Hz +10%

Qts0.33 –

Vas336 L –

BL20.4 T·m +5%

Xmax8.5 mm −6%

Sensitivity98.2 dB +1.2

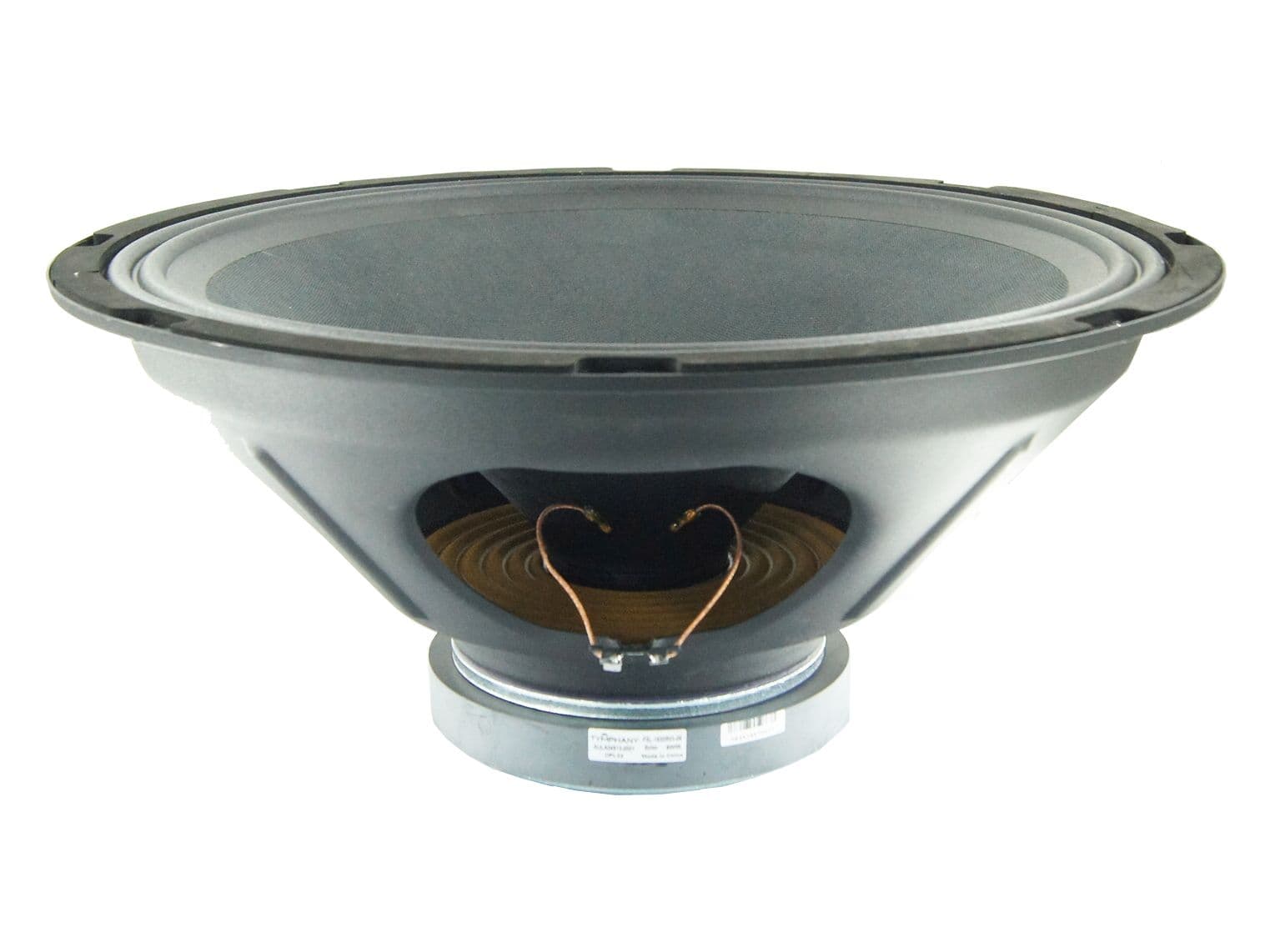

PeerlessFSL-1830R03-08

No current price

Fs32 Hz –

Qts0.36 +11%

Vas338 L –

BL21.4 T·m +11%

Xmax8.7 mm −4%

Sensitivity96.8 dB –

Precision DevicesPD.184C002

No current price

Fs40 Hz +26%

Qts0.34 +5%

Vas268 L −20%

BL21 T·m +9%

Xmax9.7 mm +8%

Sensitivity98.8 dB +1.8

RCFLF18G908

No current price

Fs33 Hz +4%

Qts0.29 −10%

Vas268 L −20%

BL24.6 T·m +27%

Xmax9 mm –

Sensitivity97.1 dB –

Oberton18B450

No current price

Fs34 Hz +8%

Qts0.34 +6%

Vas241.6 L −28%

BL22.1 T·m +14%

Xmax7.3 mm −19%

Sensitivity96.4 dB −0.6

CelestionFTR18-4080F

No current price

Fs33 Hz –

Qts0.31 −4%

Vas281.3 L −16%

BL22.5 T·m +16%

Xmax6 mm −33%

Sensitivity96.6 dB –

FaneCOLOSSUS 18-800N

No current price

Fs38 Hz +20%

Qts0.31 −6%

Vas217 L −35%

BL24 T·m +24%

Xmax8 mm −11%

Sensitivity97.7 dB +0.7

CelestionCF1840H

No current price

Fs39 Hz +21%

Qts0.35 +8%

Vas196.7 L −41%

BL17.4 T·m −10%

Xmax8 mm −11%

Sensitivity96.7 dB –

Eighteen Sound18LW1251

No current price

Fs35 Hz +10%

Qts0.27 −17%

Vas268 L −20%

BL23.6 T·m +22%

Xmax9 mm –

Sensitivity98.2 dB +1.2

Oberton18NXB700

No current price

Fs36 Hz +14%

Qts0.31 −4%

Vas155.5 L −53%

BL27.8 T·m +44%

Xmax9 mm –

Sensitivity95.6 dB −1.4
