LF Driver
Eighteen Sound
Eighteen Sound 18LW2400
Eighteen Sound 18LW2400 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 35Hz, Qts 0.31, Vas 230L, Xmax 9.5mm, sensitivity 96.9dB, plus 1164cm³ Vd and 109 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £272.63.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.9dB
98.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
109
Vented alignment
Vd
1164cm³

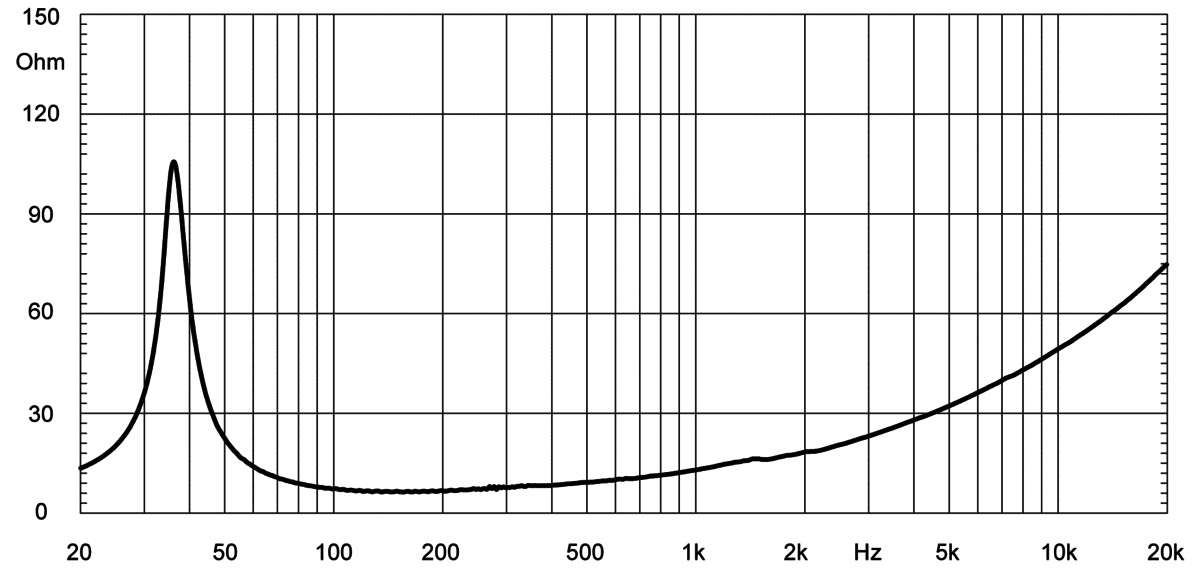

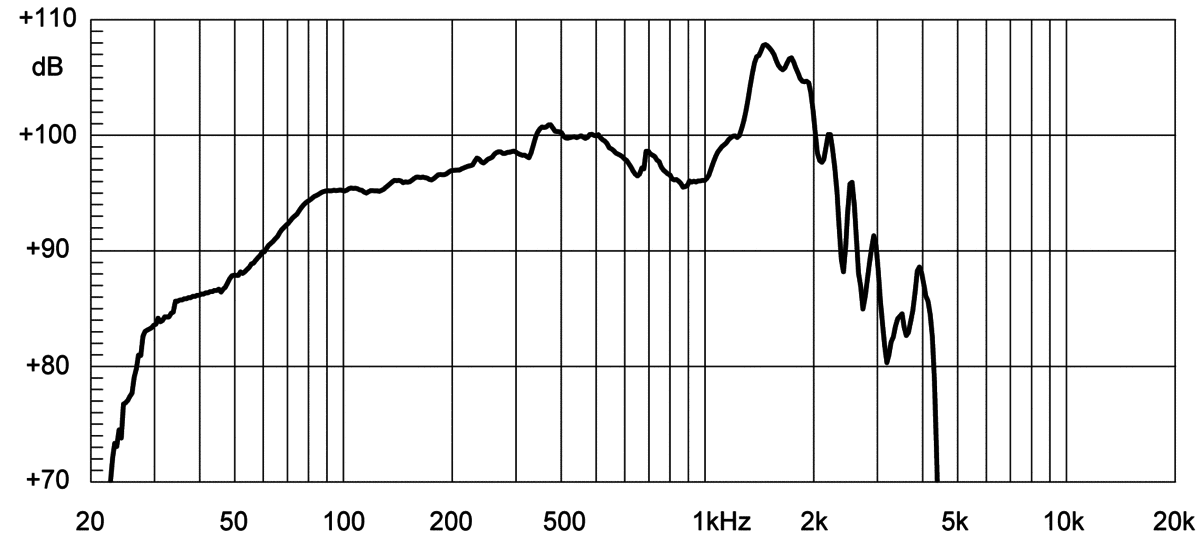

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,598 selected pixels of 2,643
T/S Parameters
Valid
Fs35Hz
Qts0.31
Qes0.32
Qms7.2
Vas230.0L
Re5.0Ω
Le1.35mH
BL25.6Tm
Sd1225cm²
Mms192g
Xmax9.5mm
SPL97dB
Power1200W
Power Nominal1200W
Impedance8Ω
F Low31Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£272.63
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.8kg
Diameter462.0mm
Overall Depth214.0mm
Cutout Diameter416.0mm
Bolt Circle Diameter438.0mm
