18-inch LF driver · 18B series · 77 mm voice coil
Oberton 18B500 8Ω
8 Ω · 35–1000 Hz
No current price
- Fs
- 35Hz
- Xmax
- 8.8mm
- SPL
- 98dB
- Pe
- –
- BL
- 24.1T·m
- Vd
- 971cm³
- Qts
- 0.28
- Vas
- 244L

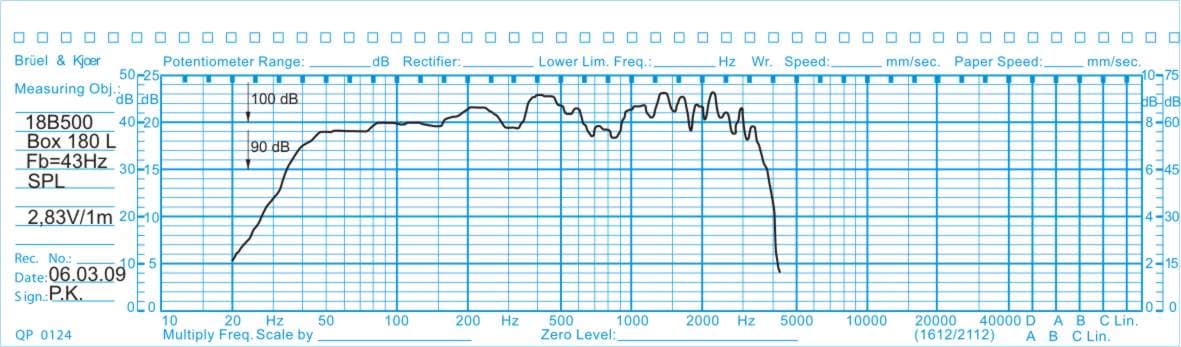

Published graphs
Oberton 18B500 is an 18-inch 8 ohm LF driver. The validated T/S data includes Fs 35 Hz, Qts 0.28, Vas 243.9 L, Xmax 8.8 mm, sensitivity 97.7 dB, plus 971 cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.28
- Qes
- 0.28
- Qms
- 9.2
- Vas
- 243.9L
- Re
- 5.1Ω
- Le
- 1.37mH
Motor and cone
- BL
- 24.1T·m
- Sd
- 1110cm²
- Mms
- 147g
- Xmax
- 8.8mm
- Vd †
- 971cm³
- Voice coil
- 77mm
- Flux density
- 1.27T
Power and response
- Sensitivity †
- 97.7dB
- Manufacturer sensitivity
- 50dB
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 35–1000Hz
- EBP †
- 123 · Leans vented

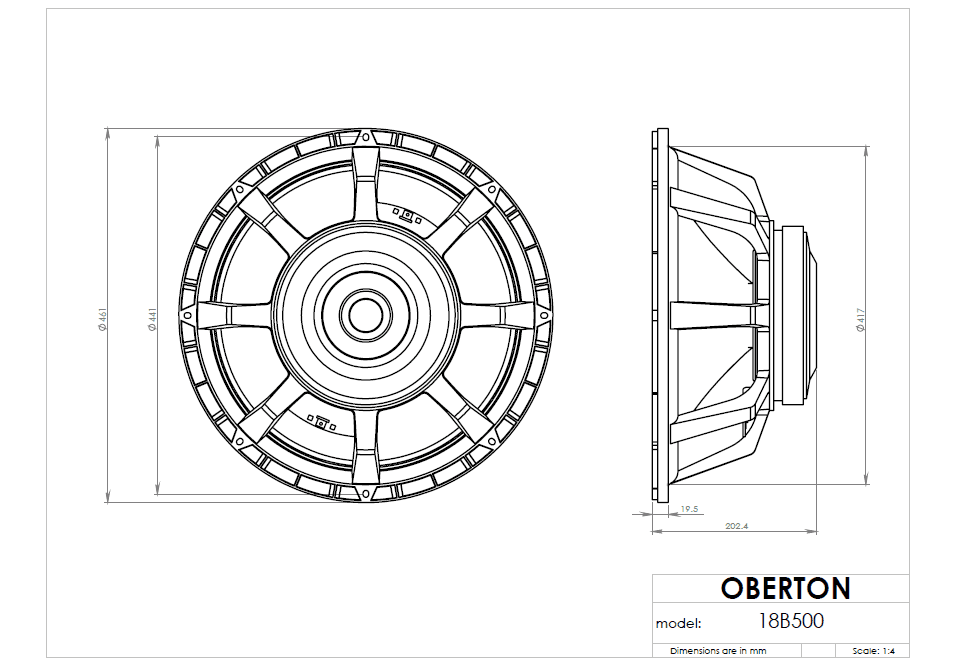

Size and mounting
- Diameter
- 461mm
- Cutout
- 417mm
- Bolt circle
- 441mm
- Depth
- 202.4mm
- Weight
- 12.3kg
Other published values
- Cms
- 0.14mm/N
- Power Program
- 1200
Sensitivity shows 97.7 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 47.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 18″
- BL
- 24.1T·m
- Fs
- 35Hz
- Le
- 1.37mH
- Re
- 5.1Ω
- Sd
- 1110cm²
- Cms
- 0.14mm/N
- Mms
- 147g
- Qes
- 0.28
- Qms
- 9.2
- Qts
- 0.28
- SPL
- 97.7dB
- Vas
- 243.9L
- Xmax
- 8.8mm
- Impedance
- 8Ω
- Flux density
- 1.27T
- Sensitivity
- 50dB
- Low limit
- 35Hz
- Power Program
- 1200
- Calculated sensitivity †
- 97.7dB
- High limit
- 1000Hz
- Manufacturer sensitivity
- 50dB
- Min. impedance
- 6.4Ω
- Voice coil
- 77mm
- Weight
- 12.3kg
- Diameter
- 461mm
- Depth
- 202.4mm
- Cutout
- 417mm
- Bolt circle
- 441mm
