LF Driver18NW series
B&C
B&C 18NW100
B&C 18NW100 is a 18" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 31Hz, Qts 0.26, Vas 252L, Xmax 9mm, sensitivity 96.5dB, plus 1089cm³ Vd and 115 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £277.00.
Size
18"
Impedance
8Ω
RMS Power
1200W
Sensitivity
96.5dB
98.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
115
Vented alignment
Vd
1089cm³

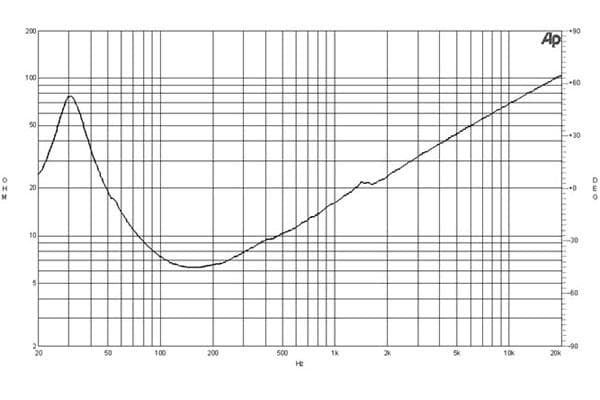

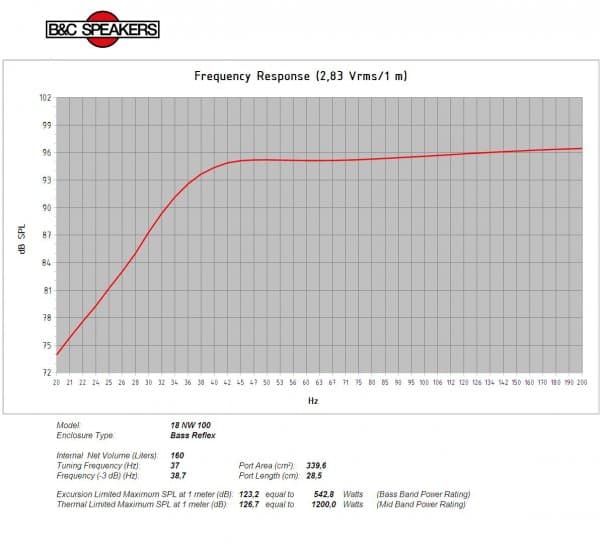

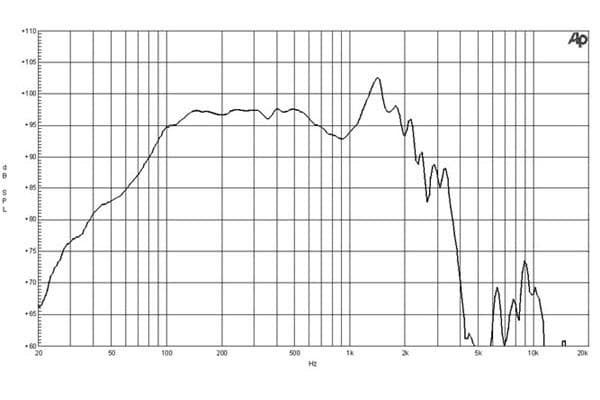

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs31Hz
Qts0.26
Qes0.27
Qms4.2
Vas252.0L
Re5.1Ω
Le1.70mH
BL28.0Tm
Sd1210cm²
Mms211g
Xmax9.0mm
SPL97dB
Power1200W
Power Nominal1200W
Impedance8Ω
Min Impedance6.3Ω
F Low35Hz
F High1000Hz
Voice Coil100mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Best current price
£277.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.1kg
Diameter460.0mm
Overall Depth209.0mm
Cutout Diameter422.0mm
Bolt Circle Diameter440.0mm
Additional Manufacturer Specs
Bl28 Tm
Fs31 Hz
Le1.7 mH
Re5.1 Ω
Sd1210 cm² (187.6 in²)
Ebp115 Hz
Mms211 g
Qes0.27
Qms4.2
Qts0.26
Vas252 dm³ (8.9 ft³)
η02.7 %
ConeRCK18NW1008
Xmax9 mm
Xvar11 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth25 mm (1 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter460 mm (18 in)
Winding MaterialCopper
Magnetic Gap Depth12 mm (0.5 in)
Recommended Tuning37 Hz
Bolt Circle Diameter440 mm (17.3 in)
Recommended Enclosure160 dm³ (5.65 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter422 mm (16.6 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver8.5 dm³ (0.3 ft³)
