Overview
LF Driver
Beyma
Beyma 18PW1400FE
Beyma 18PW1400FE is a 18" 8 ohm LF driver rated at 1400W RMS. The validated T/S data includes Fs 32Hz, Qts 0.27, Vas 228.9L, Xmax 10mm, sensitivity 96.3dB, plus 1255cm³ Vd and 114 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £273.68.
Size
18"
Impedance
8Ω
RMS Power
1400W
Sensitivity
96.3dB
98.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
114
Vented alignment
Vd
1255cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,982 selected pixels of 2,982
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs32Hz
Qts0.27
Qes0.28
Qms10.2
Vas228.9L
Re5.1Ω
Le1.20mH
BL29.0Tm
Sd1255cm²
Mms230g
Xmax10.0mm
SPL96dB
Power1400W
Impedance8Ω
F Low25Hz
F High1800Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£273.68
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight16.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
18PW1400FE
18"
Best current price
£273.68
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
21% cheaper£215.75
RCF
LF18G401
18"
Lower price
Xmax9mm-10%
Qts0.29+7%
BL24.6Tm-15%
Vas268L+17%
Qes0.3+7%
56%
Similarity
18% cheaper£225.00
RCF
L18P300
18"
Lower price
Xmax8mm-20%
Qts0.33+22%
BL23.5Tm-19%
Vas226L-1%
Qes0.34+21%
81%
Similarity
16% cheaper£229.00
FaitalPRO
18HP1022
18"
Lower price
Xmax9.5mm-5%
Qts0.3+11%
BL28Tm-3%
Vas204.9L-10%
Qes0.31+11%
71%
Similarity
13% cheaper£238.00

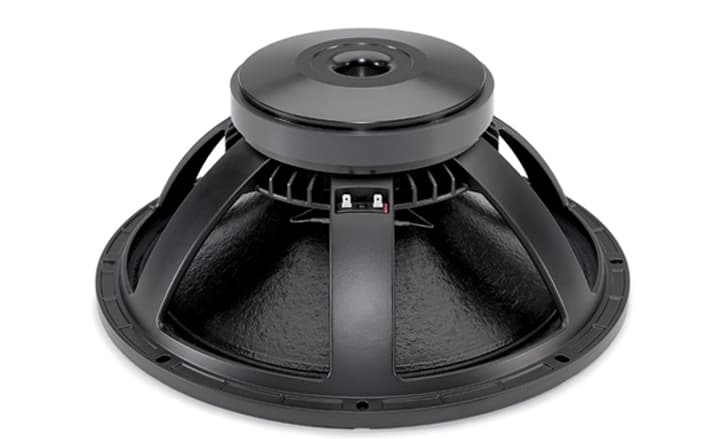

B&C
18PZB100
18"
Lower price
Xmax8mm-20%
Qts0.28+4%
BL25Tm-14%
Vas164L-28%
Qes0.29+4%
64%
Similarity
13% cheaper£238.00
B&C
18PZB100
18"
Lower price
Xmax8mm-20%
Qts0.24-11%
BL26Tm-10%
Vas297L+30%
Qes0.25-11%
63%
Similarity
13% cheaper£238.99
B&C
18TBX100
18"
Lower price
Xmax9mm-10%
Qts0.31+15%
BL22Tm-24%
Vas256L+12%
Qes0.33+18%
72%
Similarity
11% cheaper£243.89
Eighteen Sound
18W2001
18"
Lower price
Xmax7mm-30%
Qts0.25-7%
BL27.1Tm-7%
Vas230L0%
Qes0.26-7%
68%
Similarity
11% cheaper£244.93
RCF
LF18X401
18"
Lower price
Xmax12mm+20%
Qts0.3+11%
BL26.5Tm-9%
Vas274L+20%
Qes0.31+11%
70%
Similarity
10% cheaper£245.00
RCF
L18P400
18"
Lower price
Xmax9mm-10%
Qts0.28+4%
BL24.6Tm-15%
Vas340L+49%
Qes0.29+4%
81%
Similarity
8% cheaper£250.53
Eighteen Sound
18LW1251
18"
Lower price
Xmax9mm-10%
Qts0.270%
BL23.6Tm-19%
Vas268L+17%
Qes0.280%
61%
Similarity
7% cheaper£254.65

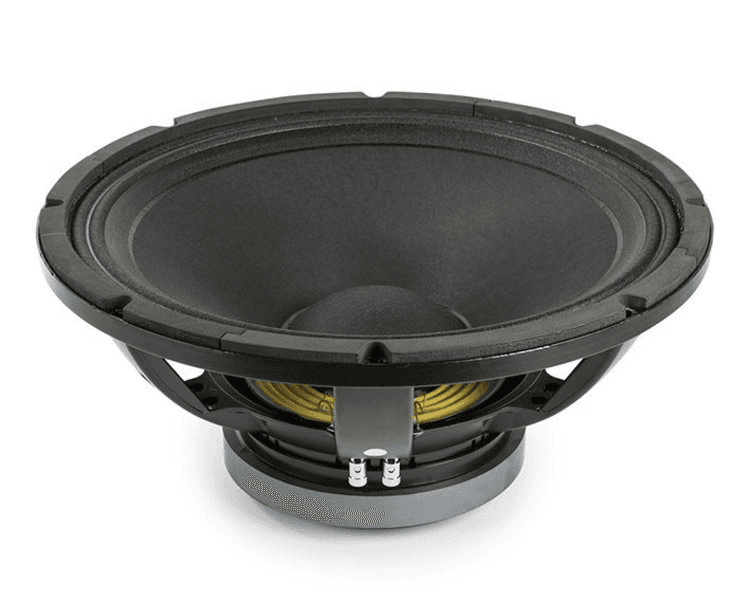

Eighteen Sound
