LF DriverPD series
Precision Devices

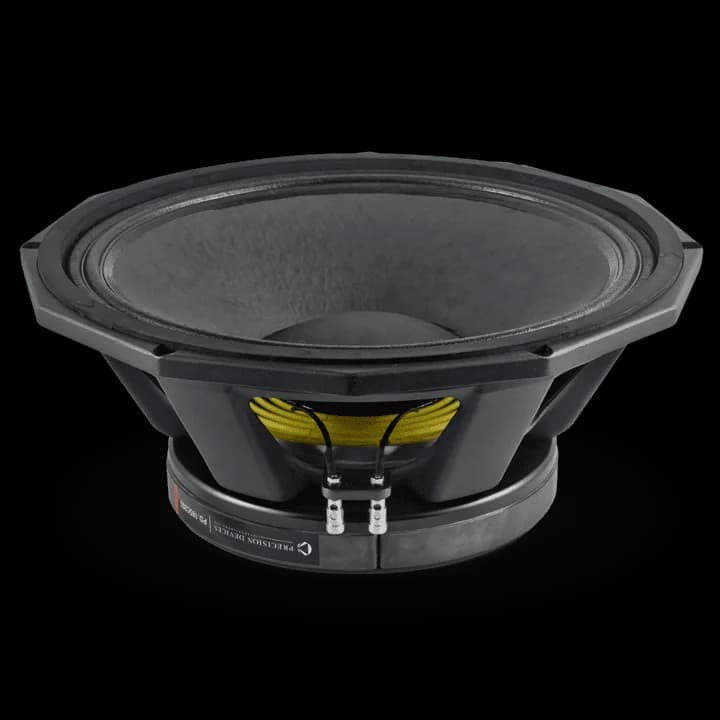

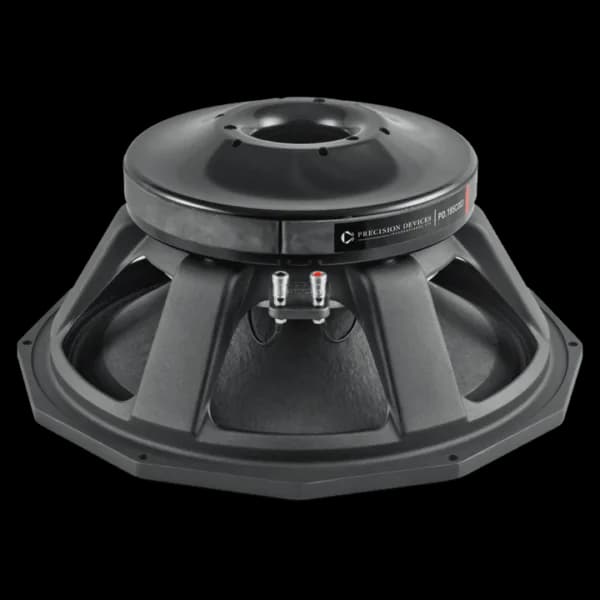

Precision Devices PD.185C003
Precision Devices PD.185C003 is a 18" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 33Hz, Qts 0.24, Vas 224L, Xmax 11mm, sensitivity 97.5dB, plus 1280cm³ Vd and 144 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1500W
Sensitivity
97.5dB
99.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
144
Vented alignment
Vd
1280cm³
T/S Parameters
Valid
Fs33Hz
Qts0.24
Qes0.23
Qms10.6
Vas224.0L
Re5.4Ω
Le2.80mH
BL31.5Tm
Sd1164cm²
Mms197g
Xmax11.0mm
SPL98dB
Power1500W
Impedance8Ω
F Low30Hz
F High500Hz
Voice Coil127mm
Flux Density1.25T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight21.9kg
Diameter474.0mm
Overall Depth194.0mm
Cutout Diameter415.0mm
Bolt Circle Diameter456.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Precision Devices
PD.185C003
18"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
Precision Devices
PD.1850/3
18"
Xmax11.1mm0%
Qts0.240%
BL31Tm-2%
Vas203.8L-9%
Qes0.24+5%
92%
Similarity
£299.00
Oberton
18XB1500v2
18"
Xmax11mm0%
Qts0.23-6%
BL31.6Tm0%
Vas192.5L-14%
Qes0.230%
81%
Similarity
£375.00
RCF
LF18N451
18"
Xmax9mm-18%
Qts0.240%
BL30.2Tm-4%
Vas245L+9%
Qes0.25+9%
75%
Similarity
£291.62
CIARE
NDH18-4S
18"
Xmax11.5mm+5%
Qts0.25+4%
BL22.2Tm-30%
Vas240L+7%
Qes0.25+9%
74%
Similarity
£299.00
Beyma
18QLEX1600FE
18"
Xmax13mm+18%
Qts0.23-4%
BL36.4Tm+16%
Vas195L-13%
Qes0.24+5%
73%
Similarity
£273.68
Beyma
18PW1400FE
18"
Xmax10mm-9%
Qts0.27+13%
BL29Tm-8%
Vas228.9L+2%
Qes0.28+22%
69%
Similarity

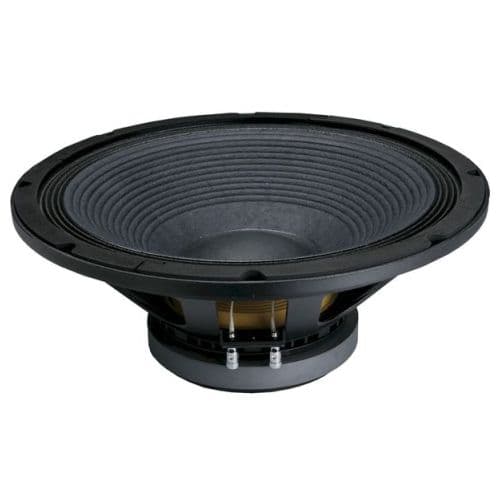

CIARE
PW455
18"
Xmax8.5mm-23%
Qts0.240%
BL21.8Tm-31%
Vas236L+5%
Qes0.24+5%
68%
Similarity
£277.00

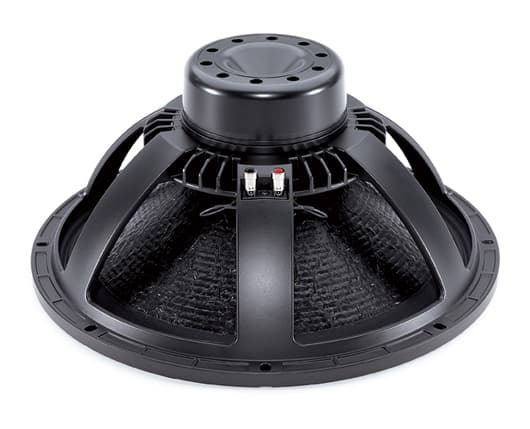

B&C
18NW100
18"
Xmax9mm-18%
Qts0.26+8%
BL28Tm-11%
Vas252L+13%
Qes0.27+18%
67%
Similarity
£320.83
RCF
LF18N401
18"
Xmax9mm-18%
Qts0.26+8%
BL27.8Tm-12%
Vas257L+15%
Qes0.27+18%
64%
Similarity

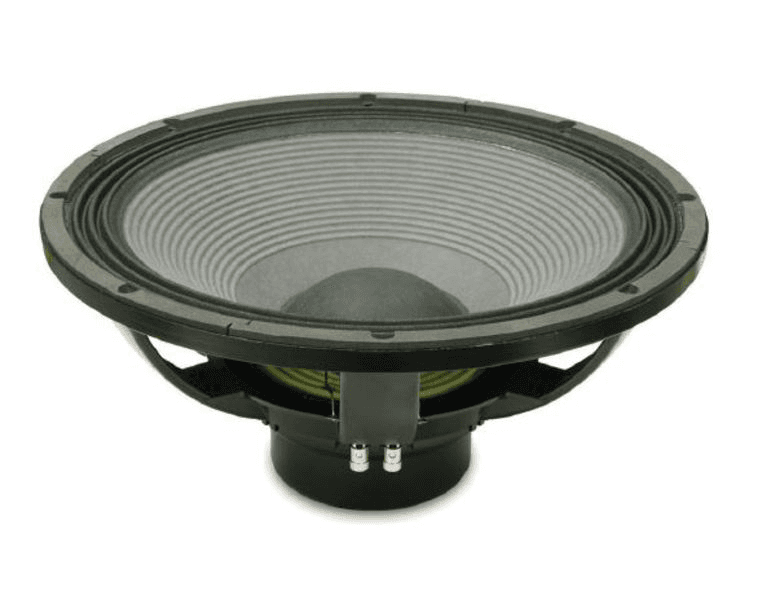

Eighteen Sound
18NLW9400
18"
Xmax9.5mm-14%
Qts0.26+8%
BL26Tm-17%
Vas268L+20%
Qes0.28+22%
64%
Similarity
£238.00
B&C
18PZB100
18"
Xmax8mm-27%
Qts0.240%
BL26Tm-17%
Vas297L+33%
Qes0.25+9%
64%
Similarity
£457.46
B&C
18DS100
18"
Xmax14mm+27%
Qts0.240%
BL24.3Tm-23%
Vas157L-30%
Qes0.24+5%
