Overview
LF DriverPD series
Precision Devices

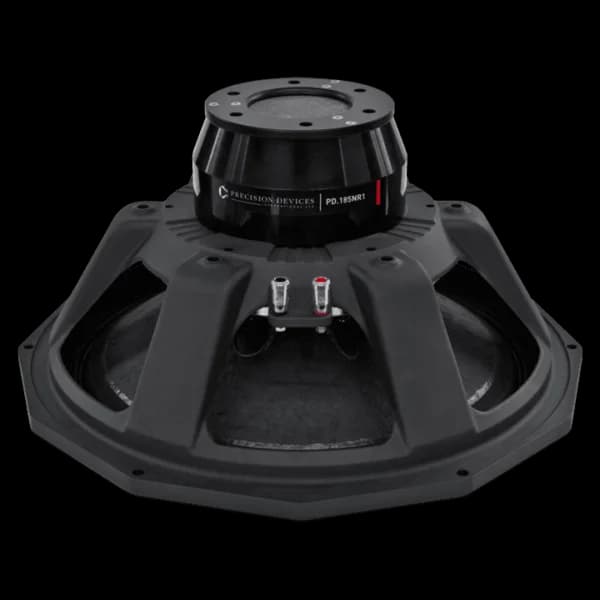

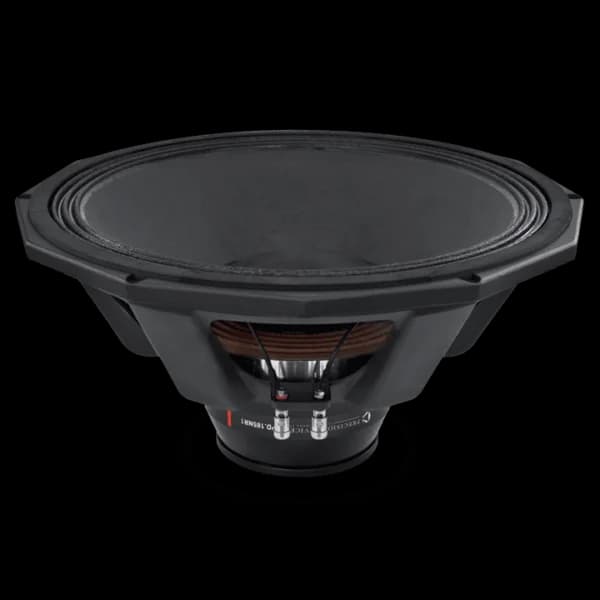

Precision Devices PD.185NR1
Precision Devices PD.185NR1 is a 18" 8 ohm LF driver rated at 1400W RMS. The validated T/S data includes Fs 34Hz, Qts 0.27, Vas 102L, Xmax 11.8mm, sensitivity 93.4dB, plus 1368cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
18"
Impedance
8Ω
RMS Power
1400W
Sensitivity
93.4dB
97.5dBmanufacturer; using T/S-derived value (4.1dB delta).
EBP
117
Vented alignment
Vd
1368cm³
T/S Parameters
Valid
Fs34Hz
Qts0.27
Qes0.29
Qms6.2
Vas102.0L
Re5.4Ω
Le2.49mH
BL29.5Tm
Sd1164cm²
Mms216g
Xmax11.8mm
SPL93dB
Power1400W
Impedance8Ω
F Low30Hz
F High800Hz
Voice Coil127mm
Flux Density1.18T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.5kg
Diameter474.0mm
Overall Depth210.0mm
Cutout Diameter415.0mm
Bolt Circle Diameter456.0mm
